DeviceNet Examples (cont.) I/O Mapping (cont.)

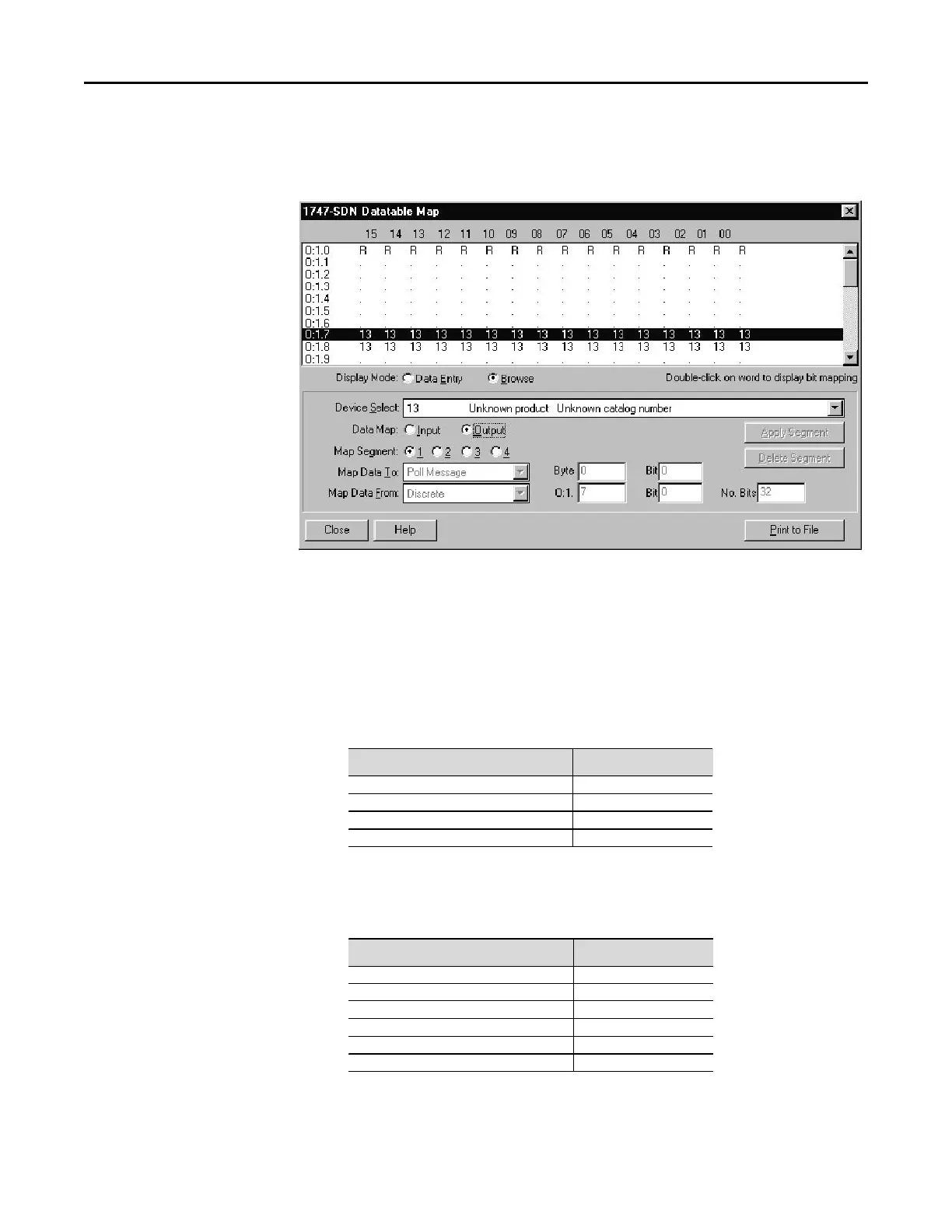

This indicates that the SLC-500's output data associated with the SMC
Dialog Plus controller is mapped to words 7 and 8.
Given this data table mapping, following are the individual logic command
and status bit addresses for the SMC Dialog Plus controller:
SMC Dialog Plus Controller Logic Command Addresses

Bit Description Address
Stop O:1.7/00
Start O:1.7/01
Option Command O:1.7/02
Clear Fault O:1.7/03
 Refer to Table 8.A
SMC Dialog Plus Controller Status Addresses 
Bit Description Address
Enabled O:1.7/00
Running O:1.7/01
Starting O:1.7/04
Stopping O:1.7/05
Fault O:1.7/07
At Speed O:1.7/08
 Refer to Table 8.B
