Rockwell Automation Allen-Bradley Dialog Plus 1503D - Page 179

Troubleshooting 10-37
1560D-UM051D-EN-P – February 2005

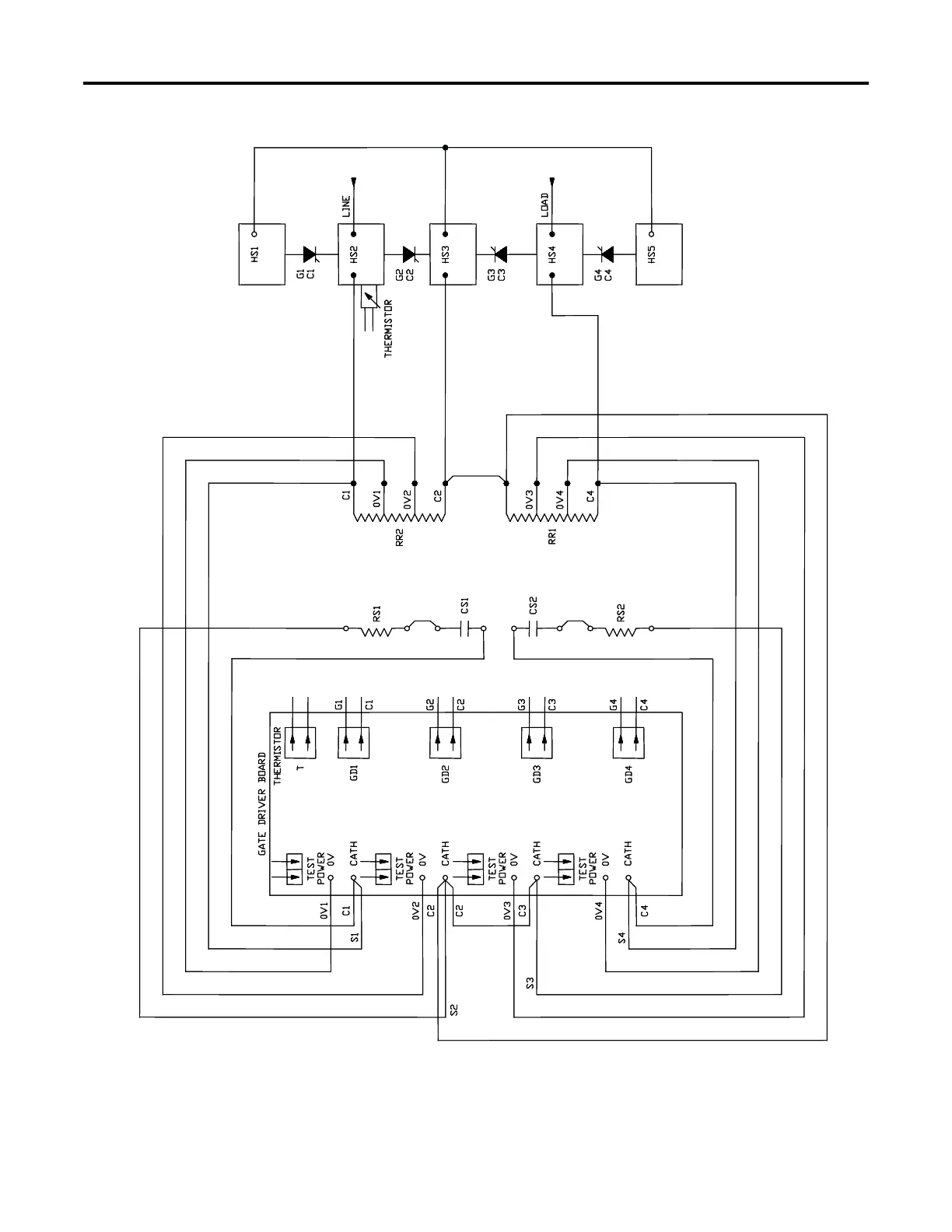

Figure 10.27 – 3300/4160 Volt Module Wiring (600 A)
(With Optional Pump Control or Soft Stop)
