Publication 2094-UM001A-EN-P — September 2006

Connecting the Kinetix 6000 Drive System 117

In this example, the second Kinetix 6000 system is located in a

separate cabinet and connected with bulkhead adapters.

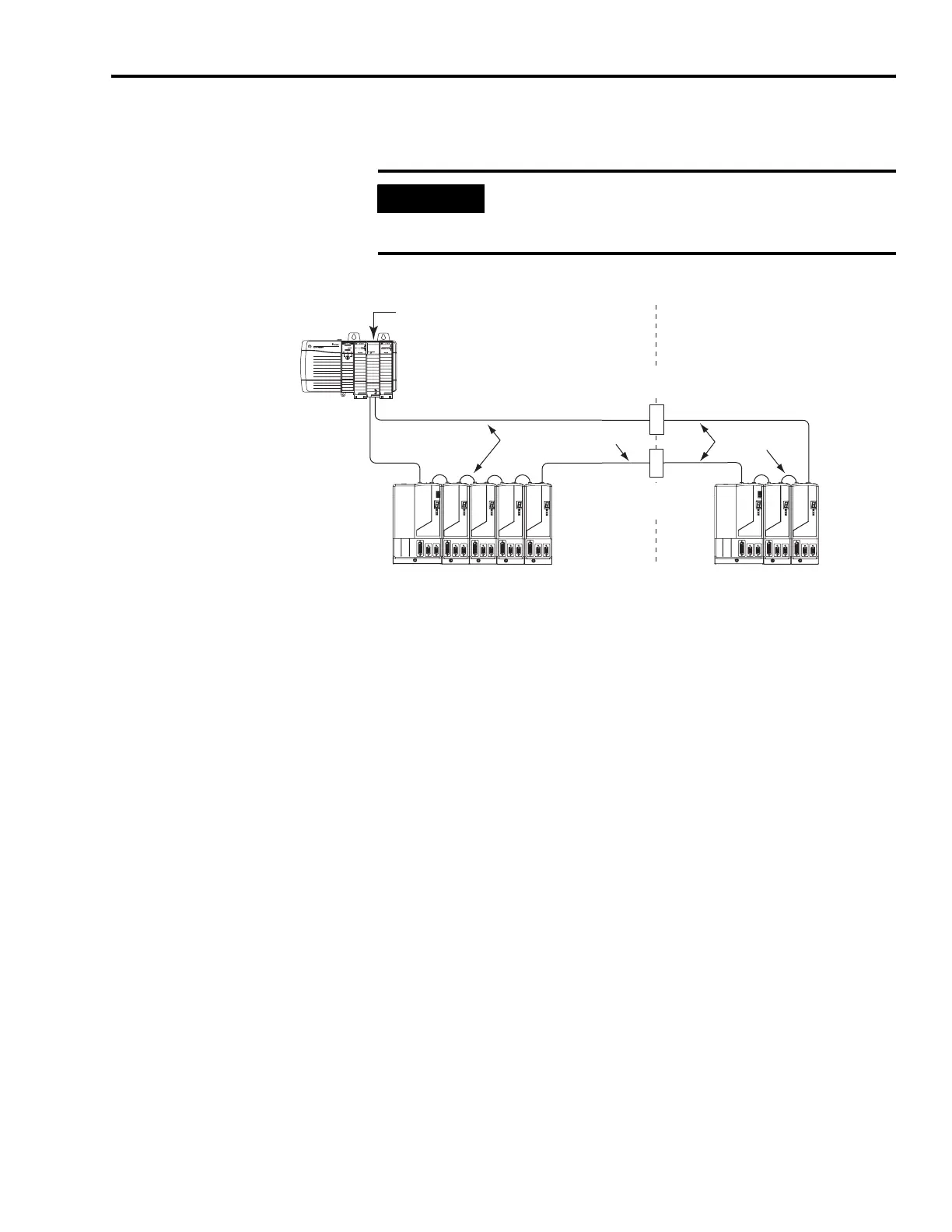

Fiber-optic Cable Example 4 (bulkhead adapters)

IMPORTANT

To avoid signal loss, do not use bulkhead adapters to connect

glass cables. Only use bulkhead adapters for making

plastic-to-plastic cable connections.

SERCOS interfac e

Tx (rear )

Rx (fron t)

1756-MxxSE SERCOS

Interface Module

SERCOS Fiber-optic

Bulkhead Adapter

SERCOS Fiber-optic Ring

SERCOS Ring

SERCOS Fiber-optic

Bulkhead Adapter

Kinetix 6000

System

Kinetix 6000

System

Logix Platform

(ControlLogix is shown)

Transmit

Receive

Trans mit

Receive Receive

Transmit

Cabinet
