Publication 2094-UM001A-EN-P — September 2006
142 Configure and Startup the Kinetix 6000 Drive System

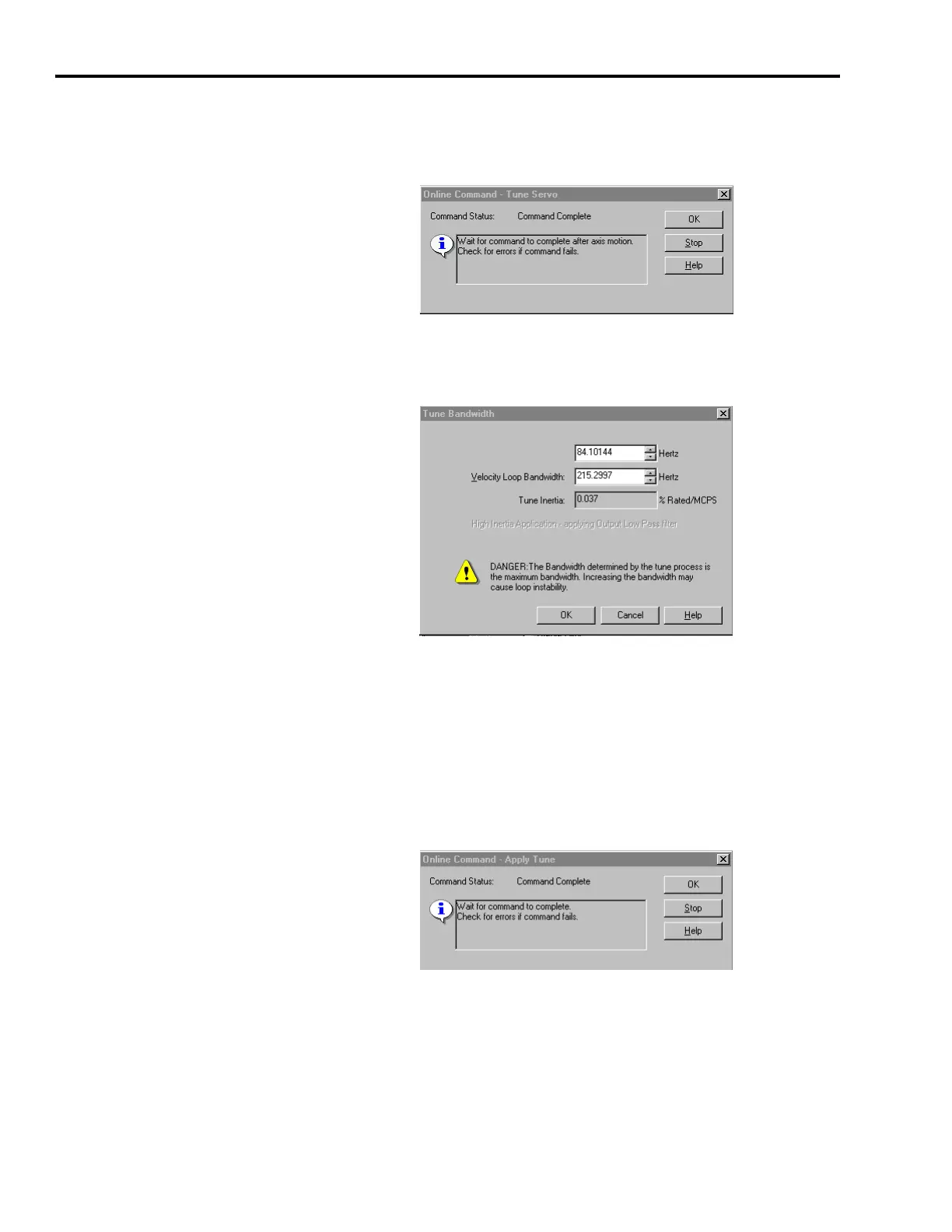

The Online Command - Tune Servo dialog opens. When the test
completes, the Command Status changes from Executing to
Command Complete.
8. Click OK.
The Tune Bandwidth dialog opens.
Actual bandwidth values (Hz) depend on your application and
may require adjustment once motor and load are connected.
Record your bandwidth data for future reference.
9. Click OK.
The Online Command - Apply Tune dialog opens. When the test
completes, the Command Status changes from Executing to
Command Complete.
10. Click OK.
