Specifications and Dimensions 187

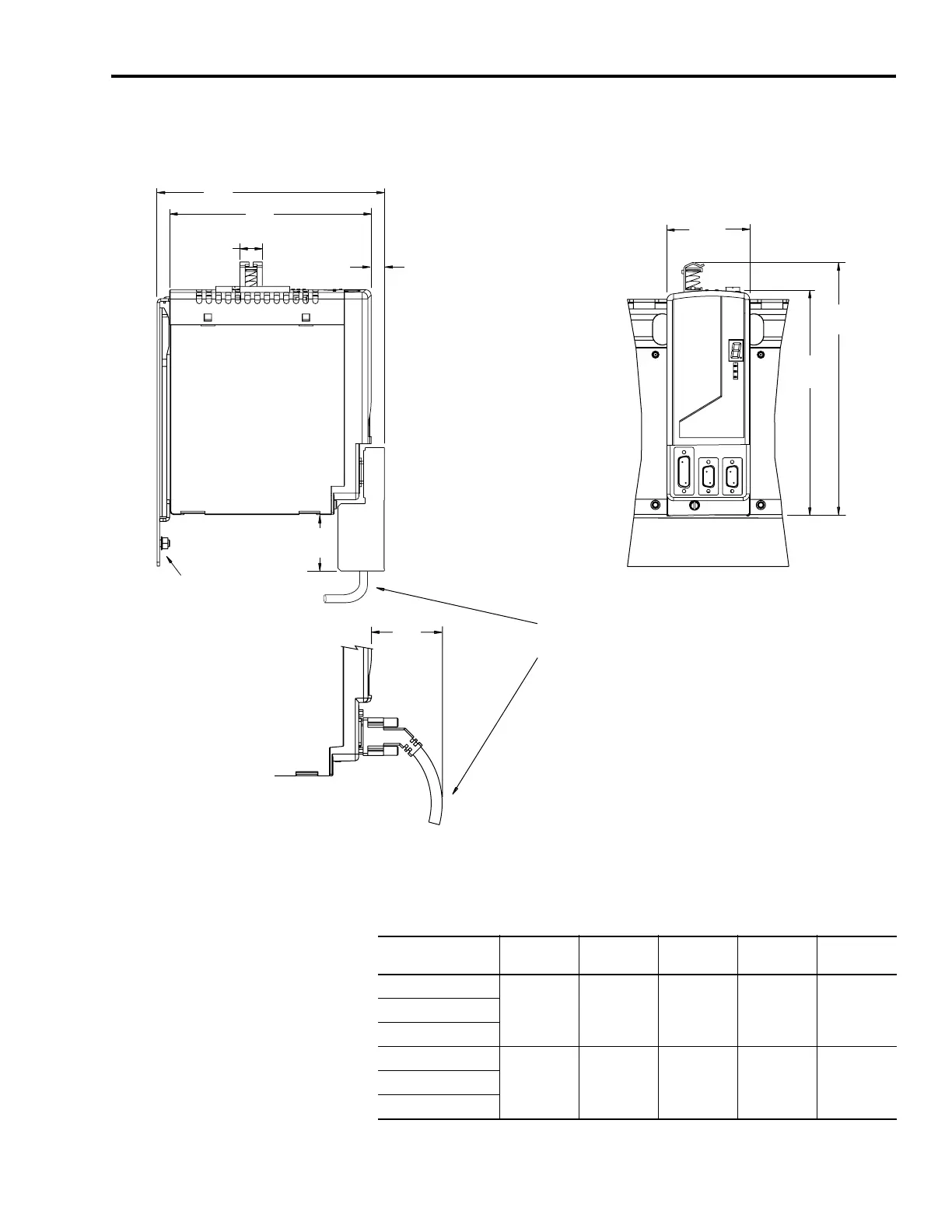

Axis Module Dimensions
2094-AMP5-S, -AM01-S, and -AM02-S (230V)
2094-BMP5-S, -BM01-S, and -BM02-S (460V)
Modules are shown mounted to the power rail and the dimensions
reflect that in the depth of the module.
AM Dimensions
20
(0.8)
8.9
(0.35)
70
(2.76)
A
B
D
E
F
62
(2.45)
Dimensions are in millimeters (inches)
2090-XXNFxx-Sxx (flying lead)
Feedback Cable with 2090-K6CK-D15Mxx
Low-profile Connector Kit
2090-UXNFBxx-Sxx (premolded connector) Feedback Cable
Power Rail
Important: Additional clearance below the connector
is necessary to provide the recommended cable-bend
radius.
2094-AM01-S (230V) shown
This view illustrates the
additional clearance required for
premolded cable connectors.
Kinetix 6000 AM
A
mm (in.)
B
mm (in.)
D
mm (in.)
E
mm (in.)
F
mm (in.)
2094-AMP5-S
198 (7.8) 176 (7.0) 51 (2.0) 206 (8.2) 231 (9.1)2094-AM01-S
2094-AM02-S
2094-BMP5-S
272 (10.7) 249 (9.8) 0 (0) 256 (10.1) 281 (11.0)2094-BM01-S
2094-BM02-S
