134 Rockwell Automation Publication 2099-UM001G-EN-P - December 2022
Chapter 5 Configure and Start the Kinetix 7000 Drive System
Configure Drive Parameters
and System Variables
This section provides information for accessing and changing parameters not
accessible through RSLogix 5000 software.
Tools for Changing Parameters
Most parameters are accessible through RSLogix 5000 software. Alternatives
include the DPI compatible Human Interface Module (HIM), and
DriveExplorer™ and DriveExecutive™ software.
Table 53 - Software For Changing Parameters
Change Parameters with DriveExplorer Software
To edit a parameter using DriveExplorer software, refer to the example dialog box
below. In this example, the I/O Interface group folder is open and the Analog
Outputs file is selected in the tree view pane on the left. The parameters and
corresponding elements are displayed in the pane to the right. Double-click a
parameter in the list to open the edit dialog box where you can change the value
for the desired parameter.

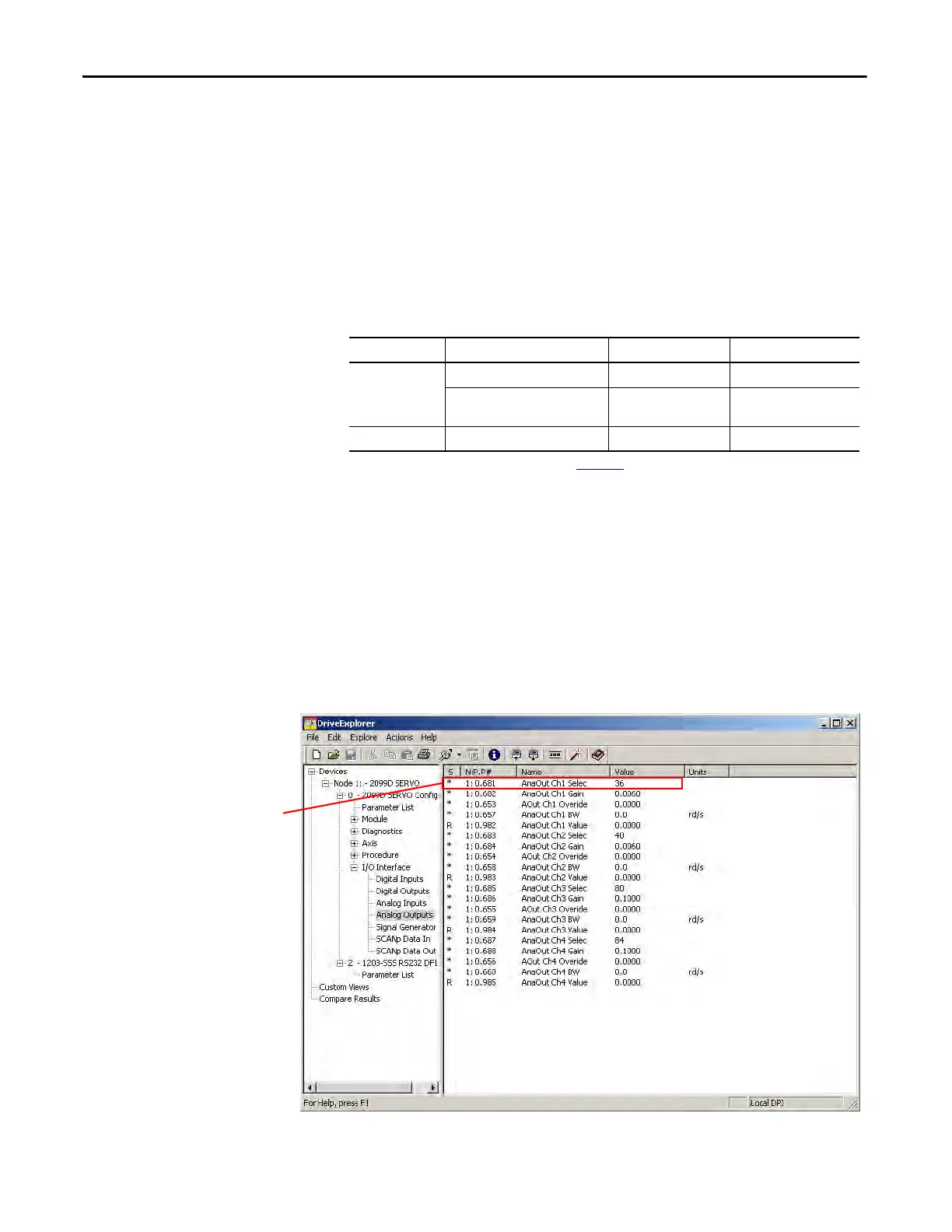

Figure 68 - DriveExplorer Software Example
Method Description Cat. No. Firmware Revision
DriveExplorer DriveExplorer software
(1)
(1) See DriveExplorer Getting Results Manual, publication 9306-GR001, for instructions.
9306-4EXP02ENE 2.01 or later
Serial to SCANport adapter 1203-SSS (Series B), or
1203-USB
3.004 or later
Drive HIM Full numeric LCD HIM 20-HIM-A3
(2)
(2) Compatible catalog numbers include all 20-HIM-Ax.
N/A
Double-click a parameter in the list
to open the edit dialog box.
