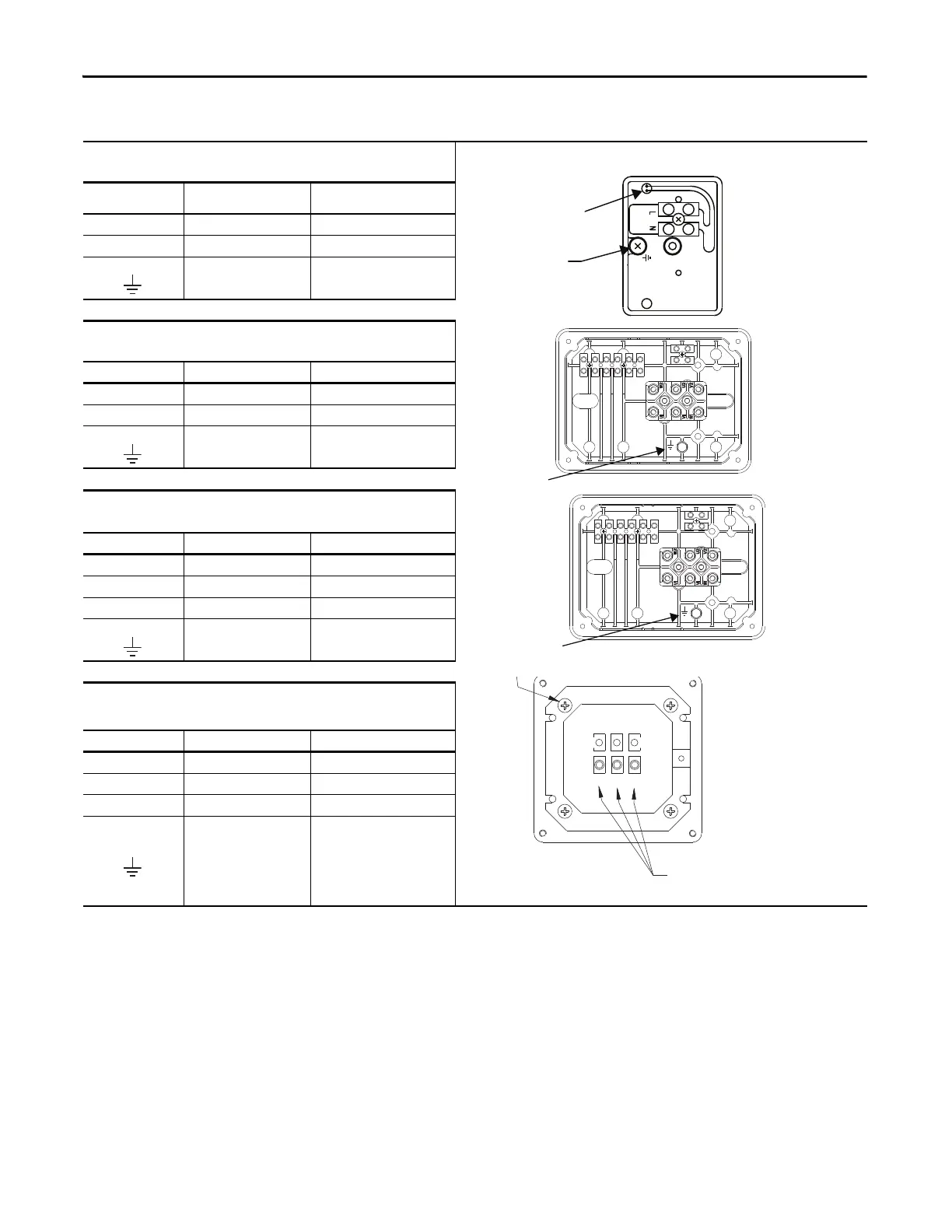

180 Rockwell Automation Publication 2099-UM001G-EN-P - December 2022
Appendix B Interconnect Diagrams
Table 69 - Blower Wiring Specifications
Single Speed 1-PH 230V (230V +/- 10%) Axial Blower SH080…SH100
Terminal
Abbreviation
Connection Description
L/L1 Line 1 Phase
N/L2 Neutral / Line 2 Neutral
Earth Ground PE/ Ground Symbol
Multiple Speed 1-PH 230V AC (200…277V) Axial Blower SH160…SH225
Terminal Connection Description
L/L1 Line 1 Phase
N/L2 Neutral / Line 2 Neutral
Earth Ground PE/ Ground Symbol
Multiple Speed 3-PH 400V AC (380…480V) Axial Blower SH160…SH225
Terminal Connection Description
L1 Line 1 Phase
L2 Line 2 Phase
L3 Line 3 Phase
Earth Ground Ground Symbol
Single Speed 3-PH 400/480V AC 50/60Hz Radial Blower
Terminal Connection Description
L1 Line 1 U1
L2 Line 2 V1
L3 Line 3 W1
Earth Ground Ground Symbol
Input Power Connection
Ground Connection
Single-speed 1-PH
Blower Terminal Box
Multi-speed 3-PH
Axial Blower
Terminal Box
W2 U2 V2
U1 V1 W1
400…460V
50-60Hz
Single-speed 3-PH
Radial Blower
Terminal Box
Input Power Connection
Multi-speed 1-PH
Axial Blower
Terminal Box
(Connect U1 to V2)
Ground Connection
Ground Connection
