22 Rockwell Automation Publication 2099-UM001G-EN-P - December 2022
Chapter 2 Install the Kinetix 7000 Drive System
Size the Kinetix 7000 servo drive using Motion Analyzer software, version 4.2 or
later, and use the results to predict the amount of heat dissipated into the
enclosure. You will also need heat dissipation data from other equipment inside
the enclosure (such as ControlLogix). Once the total amount of heat dissipation
(in watts) is known, the minimum enclosure size can be calculated. It is
recommended that you also contact the enclosure manufacturer for the best
enclosure fit, including possible cooling methods to help reduce enclosure size.
Using Motion Analyzer to Determine Heat Dissipation
To obtain Motion Analyzer software, go to:
https://www.rockwellautomation.com/en-us/products/software/factorytalk/
designsuite/motion-analyzer.html

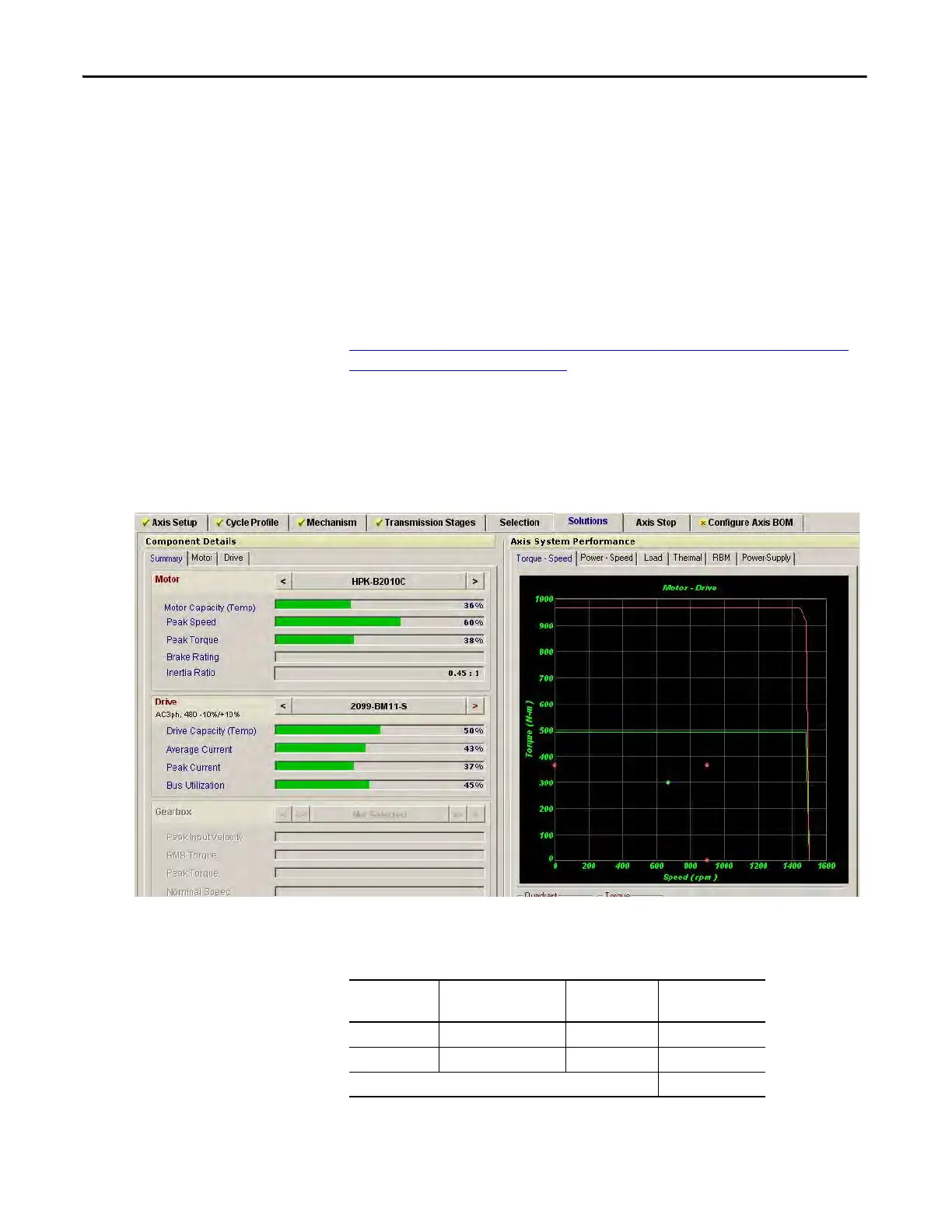

Complete the Motion Analyzer Axis View data to find an acceptable Kinetix
7000 drive and motor solution to meet the application needs. In the Axis View
Solutions window find the Drive Capacity value. In this example, the
2099-BM11-S Drive Capacity characteristic can be used for the estimation of the
Rated Power Output that is used for the percentage of watts dissipated.
Table 2 - Kinetix 7000 System Heat Dissipation Example
Enclosure
Component
Description Loading
(1)
(Motion Analyzer)
(1) Loading determined using Motion Analyzer software.
Heat Dissipation
(2)
Watts
2099-BM08-S Kinetix 7000 Servo Drive 50% 452
2099-BM11-S Kinetix 7000 Servo Drive 50% 1275
Total Wattage of Kinetix 7000 system 1727
