Rockwell Automation ArmorStart Bulletin 280G - Page 40

2-22 Installation and Wiring

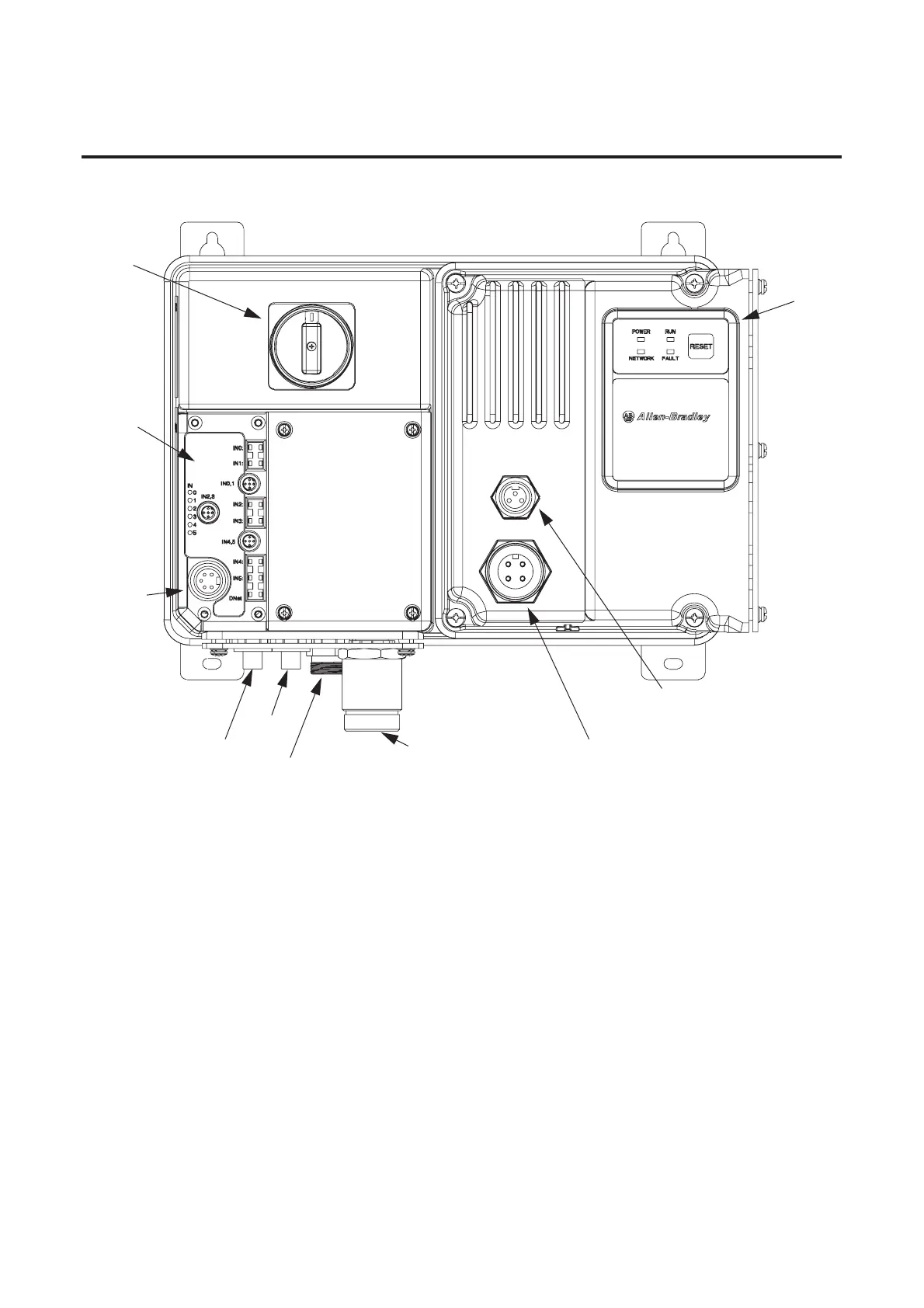

Figure 2.18 Bulletin 281G Safety ArmorStart
Motor
Connection
DeviceNet
Connection
(Mini/M18)
Local Disconnect
6 Inputs
(Micro/M12)
3-Phase Power
Receptacle
LED Status
Indication
A1/A2
Control Power
SM
Control Brake
