Specifications and Site Requirements
Mechanical Specifications
60 MagneMotion
Rockwell Automation Publication MMI-UM013B-EN-P - April 2020
NC-12 Mounting Plate
Two mounting plates can be used for mounting the NC-12 node controller to any flat surface.

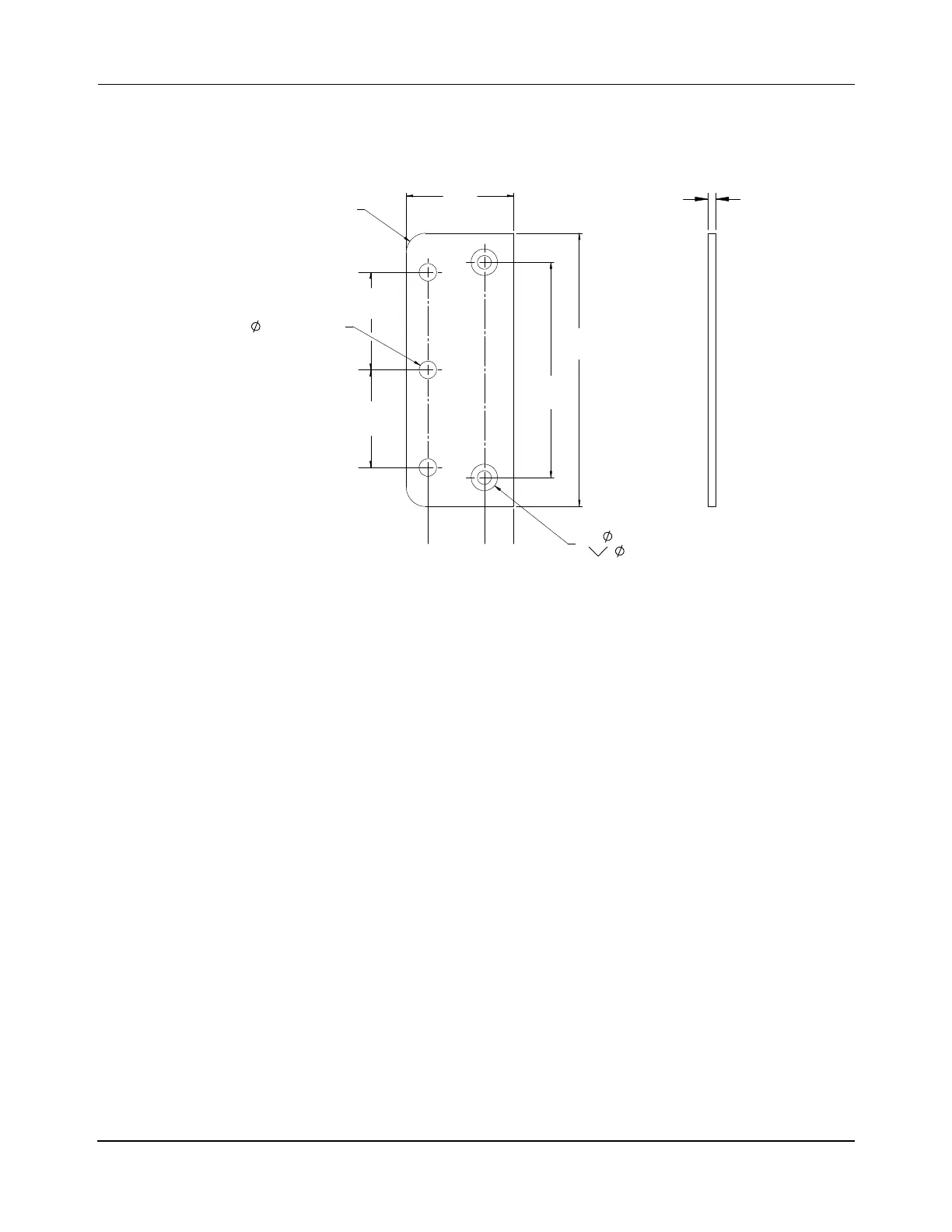

Figure 4-7: NC-12 Mounting Plate Mechanical Drawing
NOTE: Contact ICT Customer Support for current detail drawings.
Exposed Materials
• 6061-T6 Aluminum.
All Dimensions in Millimeters [Inches]
[0.59]
15.00
0
[1.73]
43.88
C
L
[0.16]
3.96
[2.2]
55
[0.39]
10
[5.5]
140
[1.97]
50
[1.97]
50
[4.34]
110.24
2X R
13.57 X 82°
9.0 THRU ALL
3X
2X 7.14 THRU ALL
