Installation
Node Controller Installation
Node Controller Hardware User Manual 91
Rockwell Automation Publication MMI-UM013B-EN-P - April 2020
Surface Mounting
Typical methods for mounting the NC-E to a surface by attaching the optional mounting
brackets are shown in Figure 5-5.

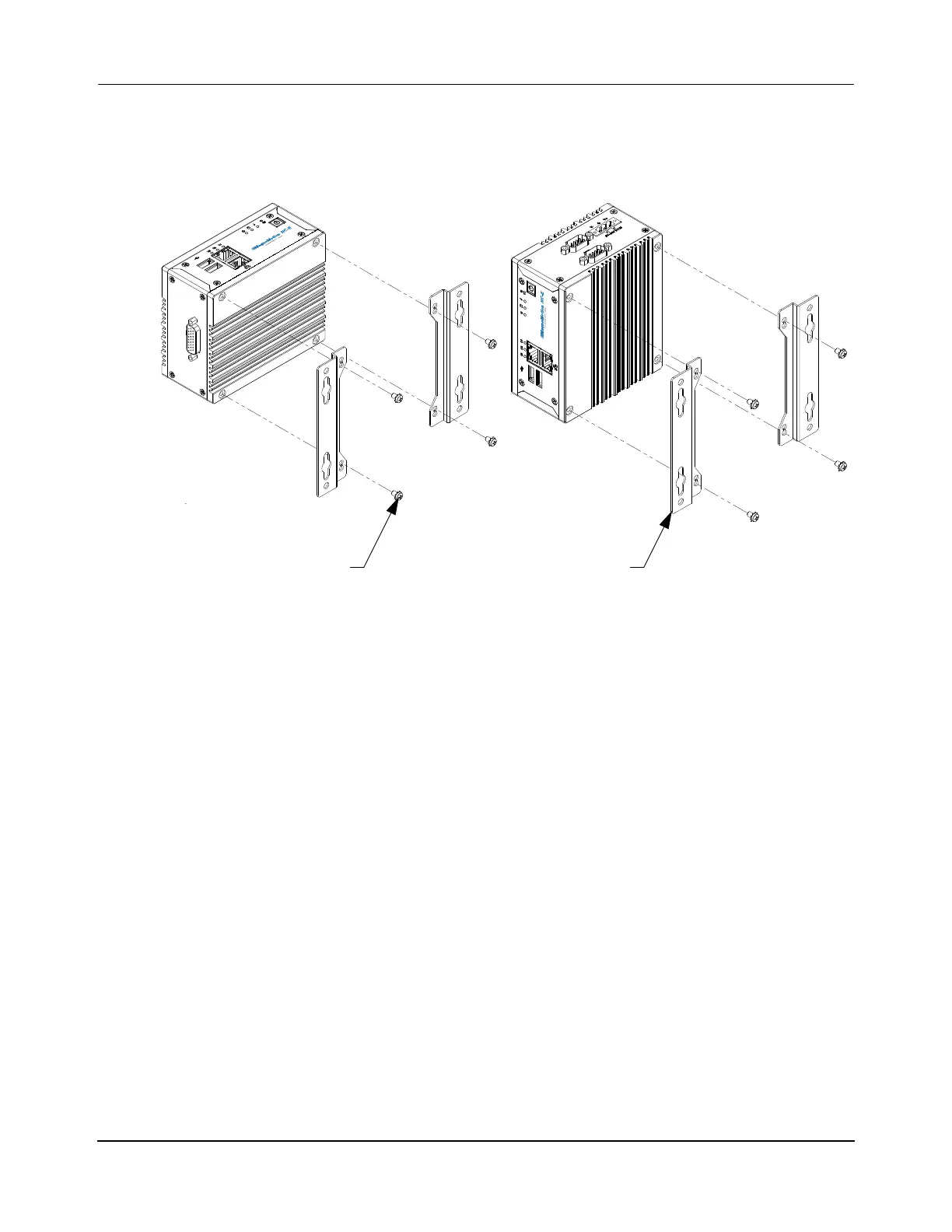

Figure 5-5: NC-E Node Controller Surface Mounting
1. Remove the four feet from the bottom of the node controller.
2. Align each mounting bracket to the NC-E and secure them to the node controller with
the supplied M4 screws. Apply Loctite 243 and tighten to 1.1 N•m [10 in•lb].
NOTE: The Loctite must cure for 2 hours at 22° C [72° F] before using the transport
system.
3. Locate the node controller as required and secure it with four screws (two per mount-
ing bracket) make sure that the service and exclusion zones are maintained.
4. Install cable management as required to secure the cables that are connected to the
node controller.
Mounting Bracket
(2X)
M4 Screw
(4X)
To Next Page
