Rockwell Automation MagneMotion 700-0871-00 - NC LITE Console Pinout; NC LITE LAN Pinout

Specifications and Site Requirements
Electrical Specifications
80 MagneMotion
Rockwell Automation Publication MMI-UM013B-EN-P - April 2020

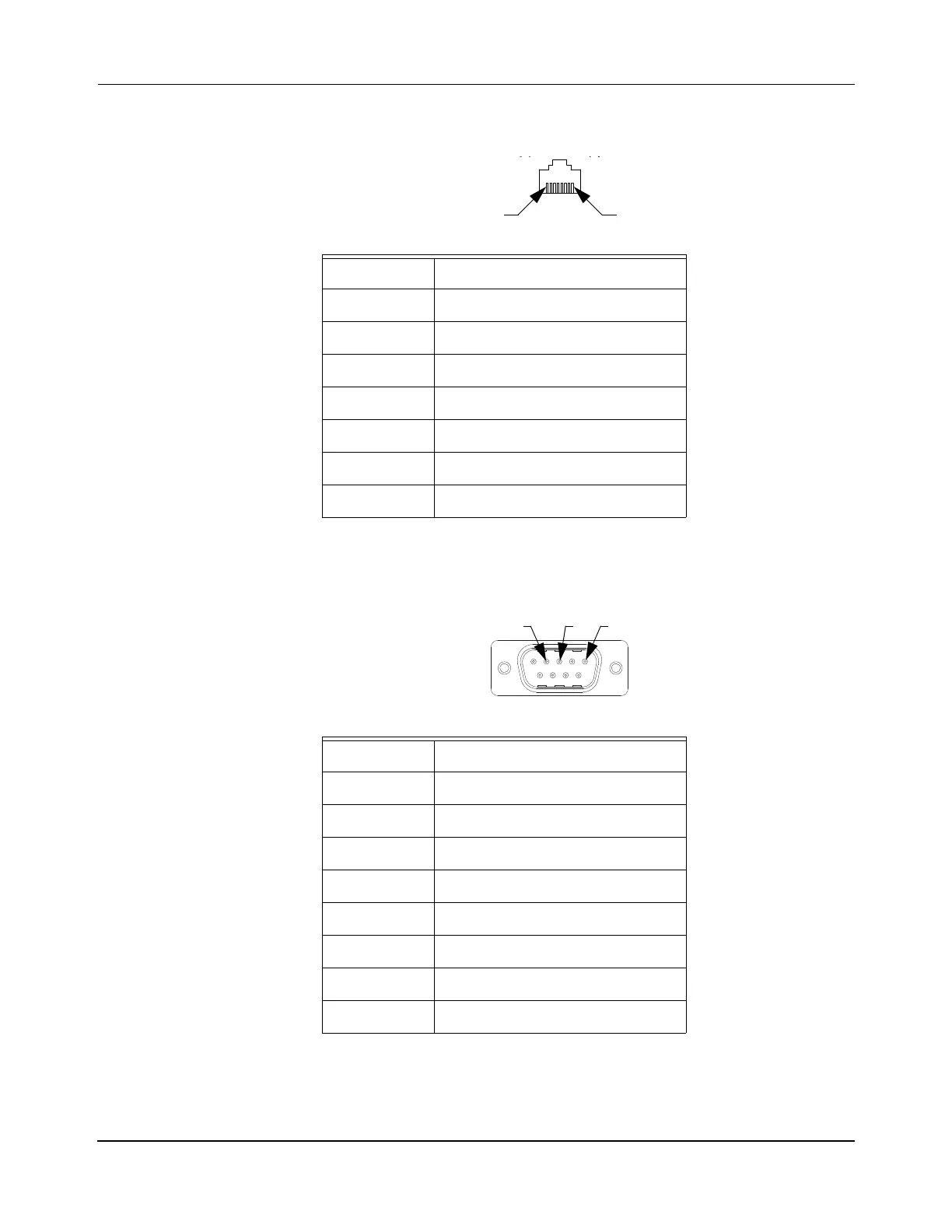

Table 4-25: NC LITE LAN Pinout
RJ45, Female
TD+ 1
TD- 2
RD+ 3
+18V DC 4
+18V DC 5
RD- 6
RTN 7
RTN 8
Table 4-26: NC LITE Console Pinout
DE-9, Male
— 1
Rx 2
Tx 3
— 4
RTN 5
— 6
— 7
— 8
— 9
8
1
2 53
