Rockwell Automation MagneMotion 700-0871-00 - NC-S Node Controller Power Pinout; NC-S Node Controller RS-422 Pinout

Specifications and Site Requirements
Electrical Specifications
Node Controller Hardware User Manual 67
Rockwell Automation Publication MMI-UM013B-EN-P - April 2020

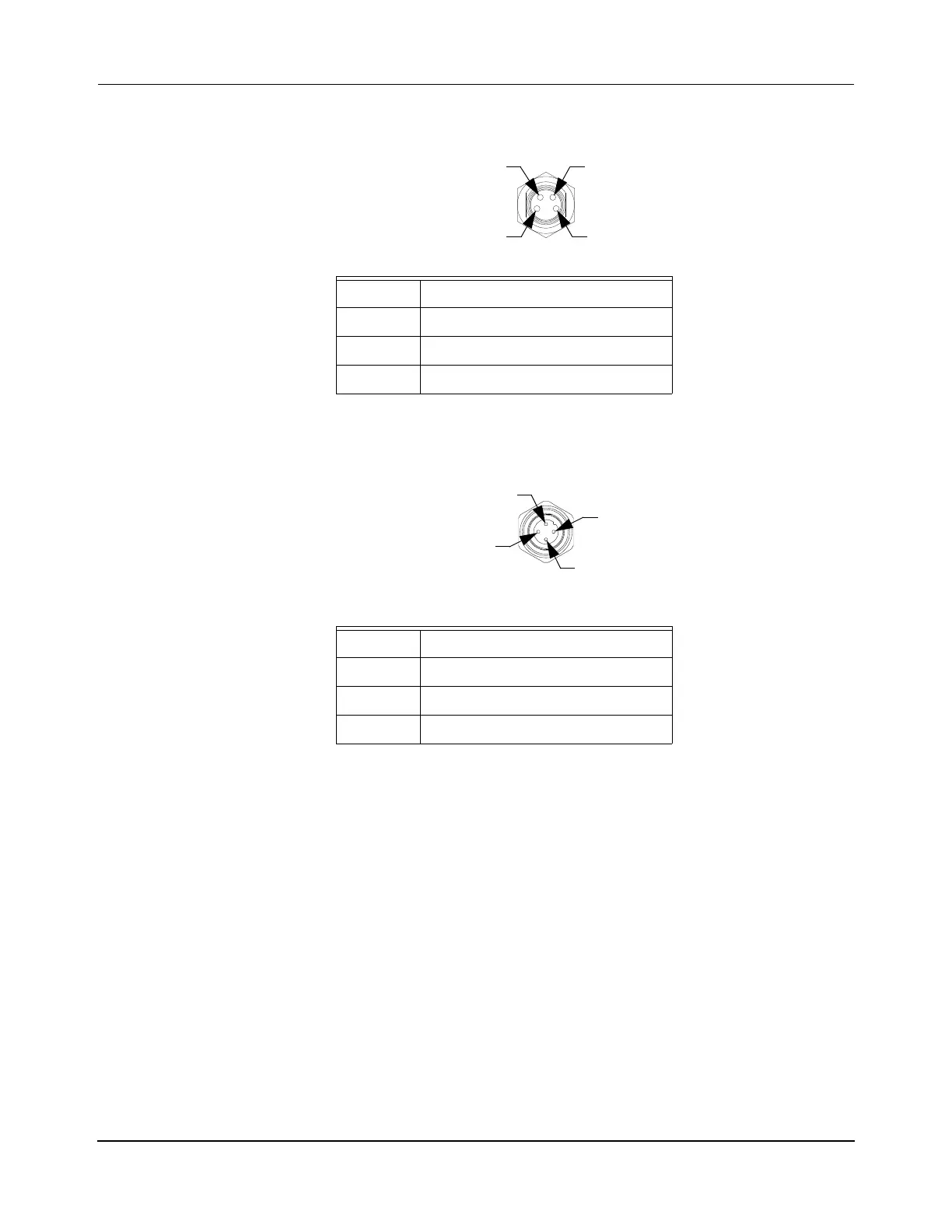

Table 4-5: NC-S Node Controller RS-422 Pinout
M8 Nano-Mizer, 4-Pin, Male
RxD+ 1
RxD- 2
TxD+ 3
TxD- 4
Table 4-6: NC-S Node Controller Power Pinout
M12 Eurofast, FSFD,
4-Pin, Male
PWR 1
— 2
RTN 3
GND 4
3
4
1
2
4
1
3
2
