Rockwell Automation MagneMotion 700-0871-00 - NC-E Node Controller COM1 (Console) Pinout; NC-E Node Controller Ethernet Pinout

Specifications and Site Requirements
Electrical Specifications
70 MagneMotion
Rockwell Automation Publication MMI-UM013B-EN-P - April 2020

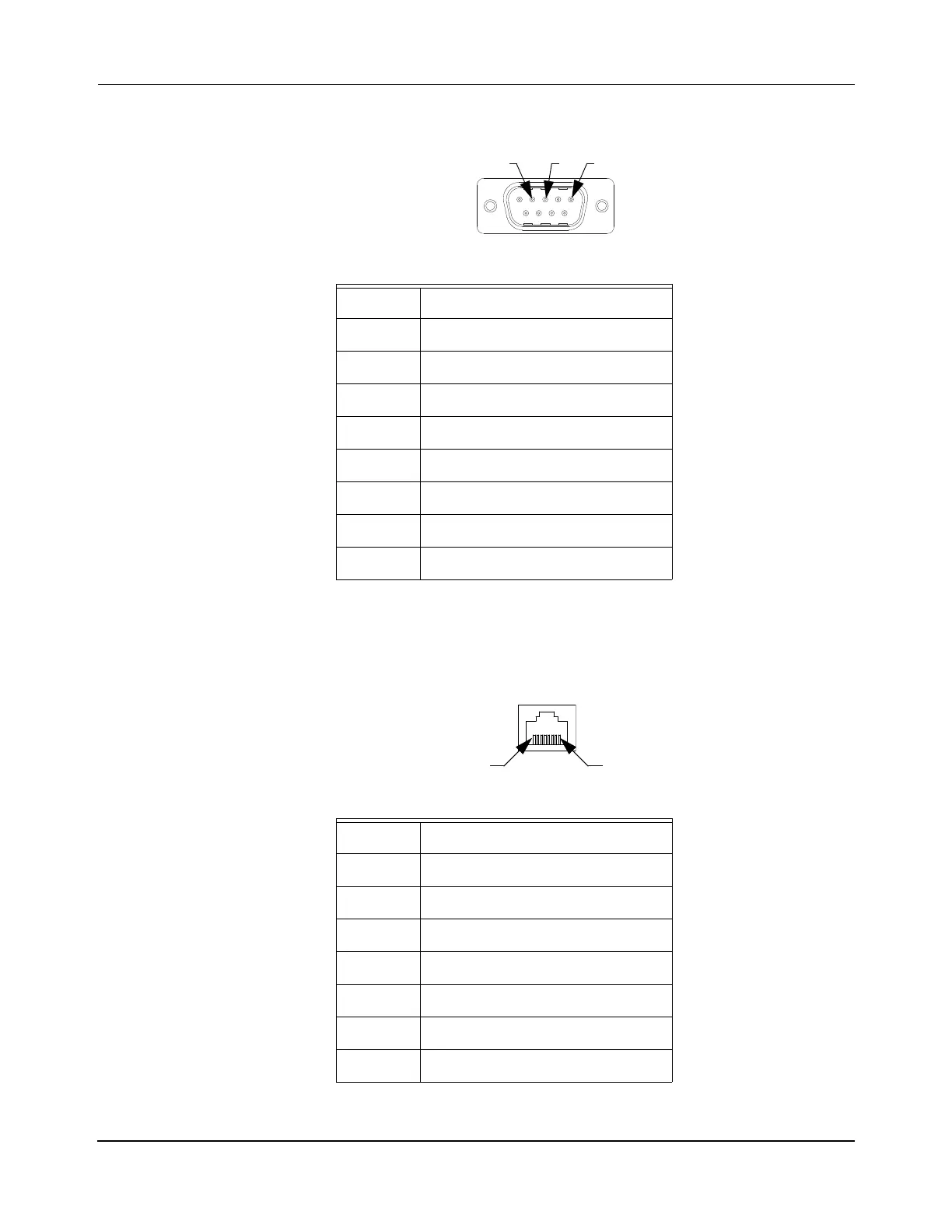

Table 4-10: NC-E Node Controller COM1 (Console) Pinout
DE-9, Male
— 1
Rx 2
Tx 3
— 4
RTN 5
— 6
— 7
— 8
— 9
Table 4-11: NC-E Node Controller Ethernet Pinout
RJ45, Female
TD+ 1
TD- 2
RD+ 3
— 4
— 5
RD- 6
— 7
— 8
2 53
8
1
