Panel Descriptions
Panel Descriptions

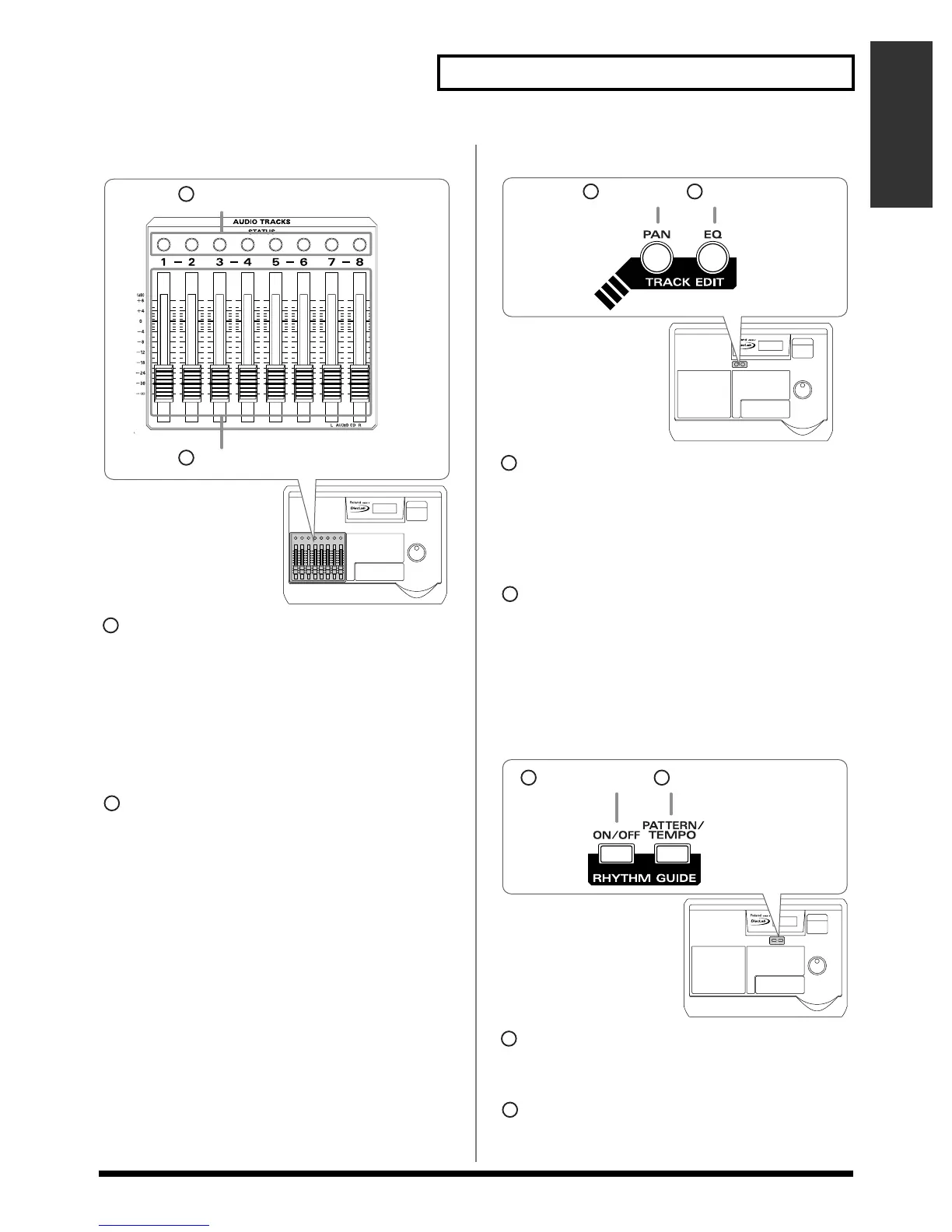

AUDIO TRACK section
fig.14-04e
STATUS buttons 1–8
These switch the status of each audio track. The current status
is shown by the color of the button.
• Extinguished: Sound will not be output (i.e., muted).
• Lit in green: The track is ready for playback.
• Blinking in red: The track is selected as a recording
destination.
• Lit in red: The track is now being recorded.
AUDIO TRACK faders
These adjust the volume of each audio track.
TRACK EDIT section
fig.14-05e
PAN Button
This displays a screen where you can set pan (left/right
positioning of the sound) for each audio track.
➔
“Setting the left/right position (pan) of an input sound”
(p. 113), “Setting the left/right position of each audio track”
(p. 132)
EQ (Equalizer) Button
This accesses a screen where you can make equalizer settings
to modify the tone of each audio track.
➔
“Adjusting the tone of each audio track—Equalizer” (p. 132)
RHYTHM GUIDE section
Here you can make settings for the Rhythm Guide function.
➔ “Using the rhythm guide” (p. 116)
fig.14-05ae
ON/OFF button
Pressed to cycle the Rhythm Guide function through the
available selections: Auto
→ On → Off.
PATTERN/TEMPO button
This accesses a screen where you can set the rhythm pattern
and tempo.
2
AUDIO TRACK faders
1
STATUS buttons
1
2
PAN button
2
EQ button
1
1
2
ON/OFF button
2
PATTERN TEMPO button
1
1
2
