32
Basic operation of the CDX-1
Connecting peripheral equipment

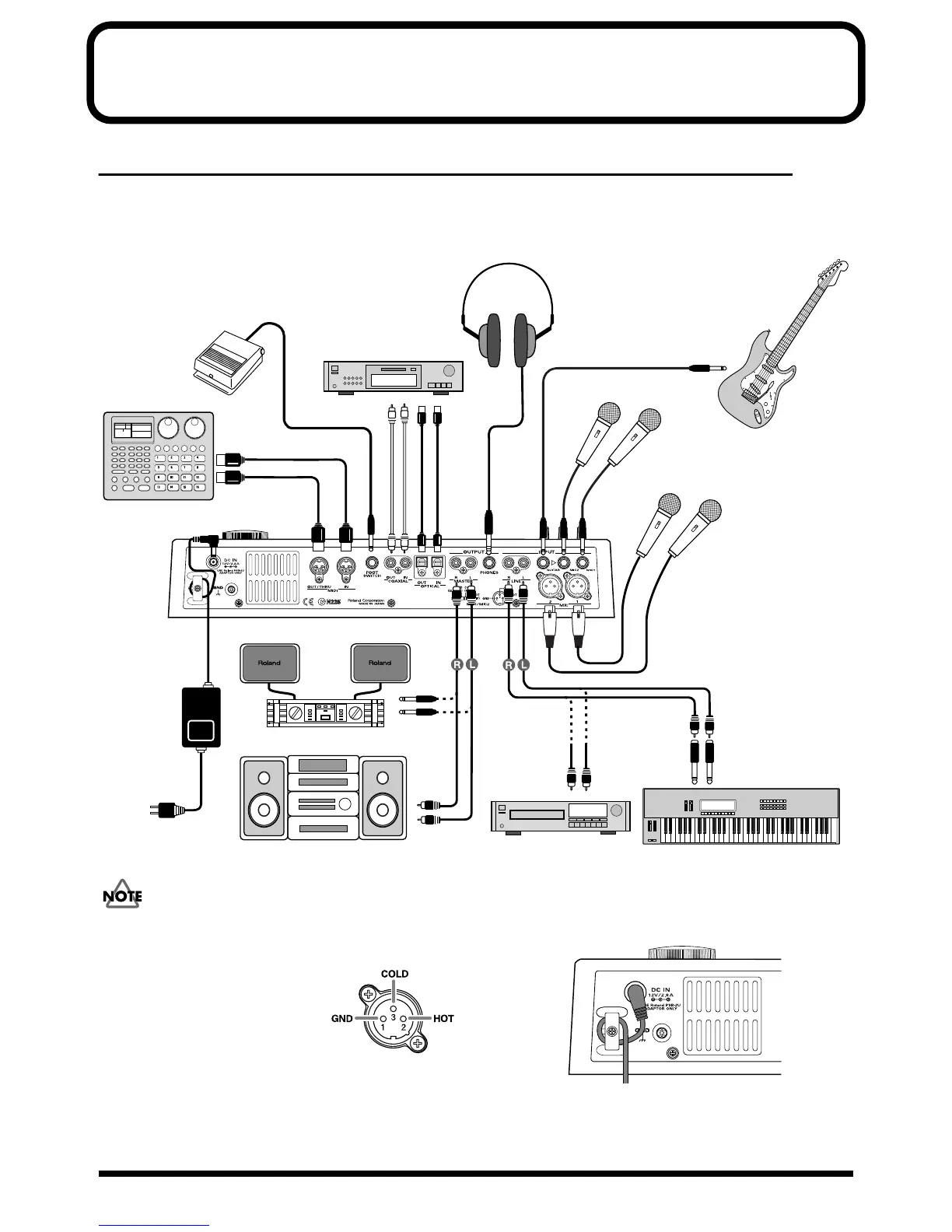

Make connections as shown in the diagram below. Before you begin making connections, be sure that the power of all
equipment is turned off.
fig.15-01e
• To prevent malfunction and/or damage to speakers or other
devices, always turn down the volume, and turn off the power on
all devices before making any connections.
• The pin assignment for the XLR type
connectors is as shown below. Before
making any connections, make sure that
this pin assignment is compatible with
that of all your other devices.
• Howling could be produced depending
on the location of microphones relative to speakers. This can be
remedied by:
1. Changing the orientation of the microphone(s).
2. Relocating microphone(s) at a greater distance from speakers.
3. Lowering volume levels.
• To prevent the inadvertent disruption of power to your unit
(should the plug be pulled out accidentally), and to avoid
applying undue stress to the AC adaptor jack, anchor the power
cord using the cord hook, as shown in the illustration.
fig.15-03
• Do not use identically numbered phone-type and XLR-type MIC
jacks simultaneously.
• Please connect or disconnect the foot switch after you turn off the
power.
Stereo Headphones
Electric Guitar
Electric Bass
Mica
Mica
Keyboard, Rhythm Machine, etc.
CD Player etc.
Audio Set etc.
Power amp
AC Adaptor
(PSB-2U)
Rhythm Machine etc.
Foot Switch (DP-2 etc.)
DAT/MD Recorder etc.
To Next Page
