1-2 Part Names and Functions
26
Chapter 1 Getting Started
Chapter 1 Getting Started

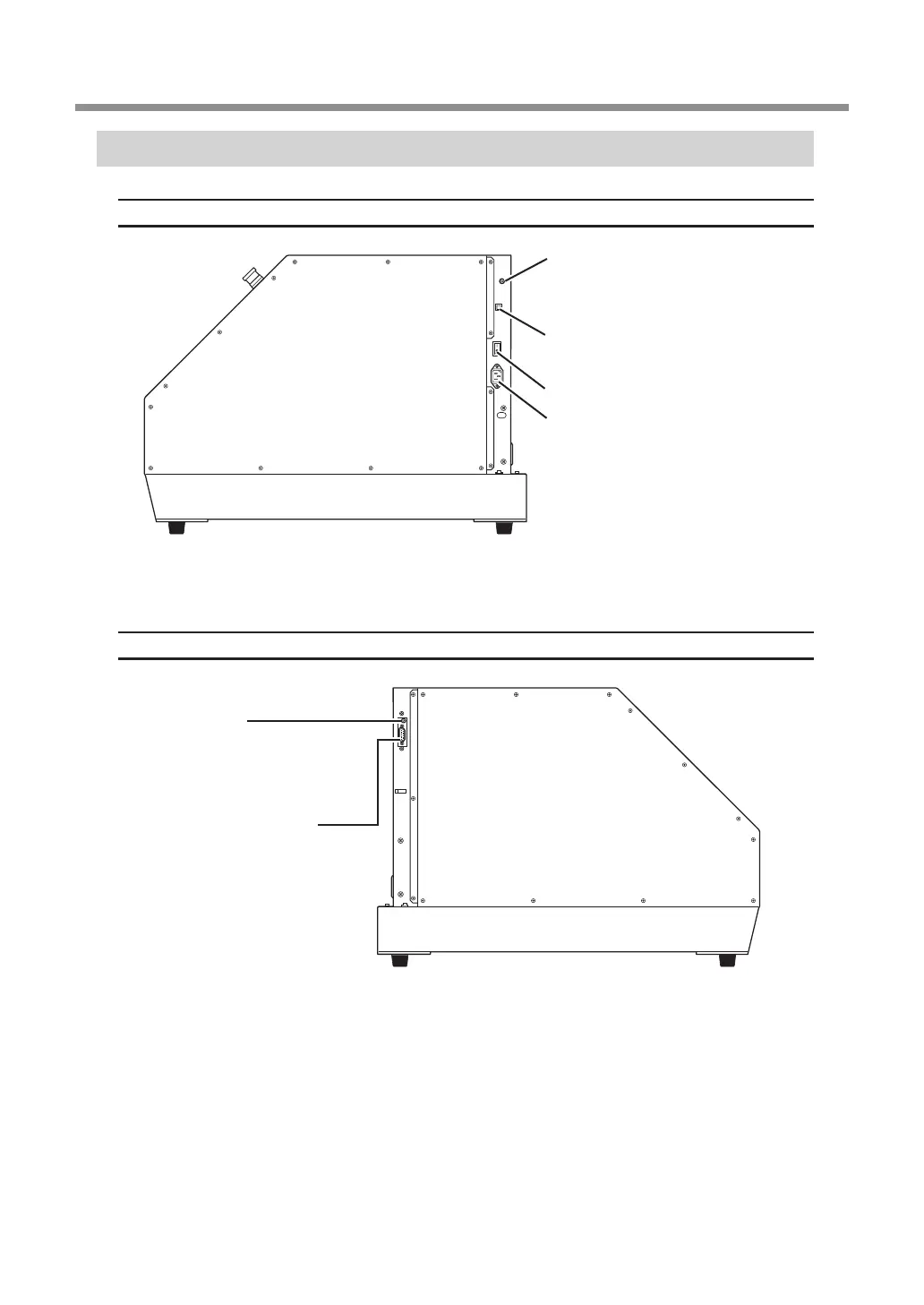

Side
Right side
Left side
Expansion port
This is a connector for external equip-
ment.
 P. 91, “Expansion Connector”
Rotary Axis Unit Connector
This is the terminal to connect the optional
rotary axis unit.
 P. 91, “Expansion Connector”
Sensor connector
Connect the supplied sensor cable to
this connector.
 P. 70, “Setting the Z Origin Using the
Z0 Sensor”
USB connector
This is for connecting a USB cable.
 P. 35, “Connecting to the Computer”
Main power switch
Power-cord connector
