1-2 Part Names and Functions
28
Chapter 1 Getting Started
VIEW button
Move the spindle head to the high-
est center position of the machine
and move the table towards the
front. When this button is pressed
during cutting operation, the ma-
chine is paused.
P. 51, "Moving to the View Posi-
tion," p. 53, "Pausing /Resuming/
Quitting of Cutting"
Sub power button
Press this button to start the ma-
chine when the main power switch
is on.
P. 43, "How to Start the Ma-
chine"
MODELING lamp
This lights up when the
Sub power button is
pressed.
SCANNING lamp (optional)
This lights up while using the op-
tional scanning unit.

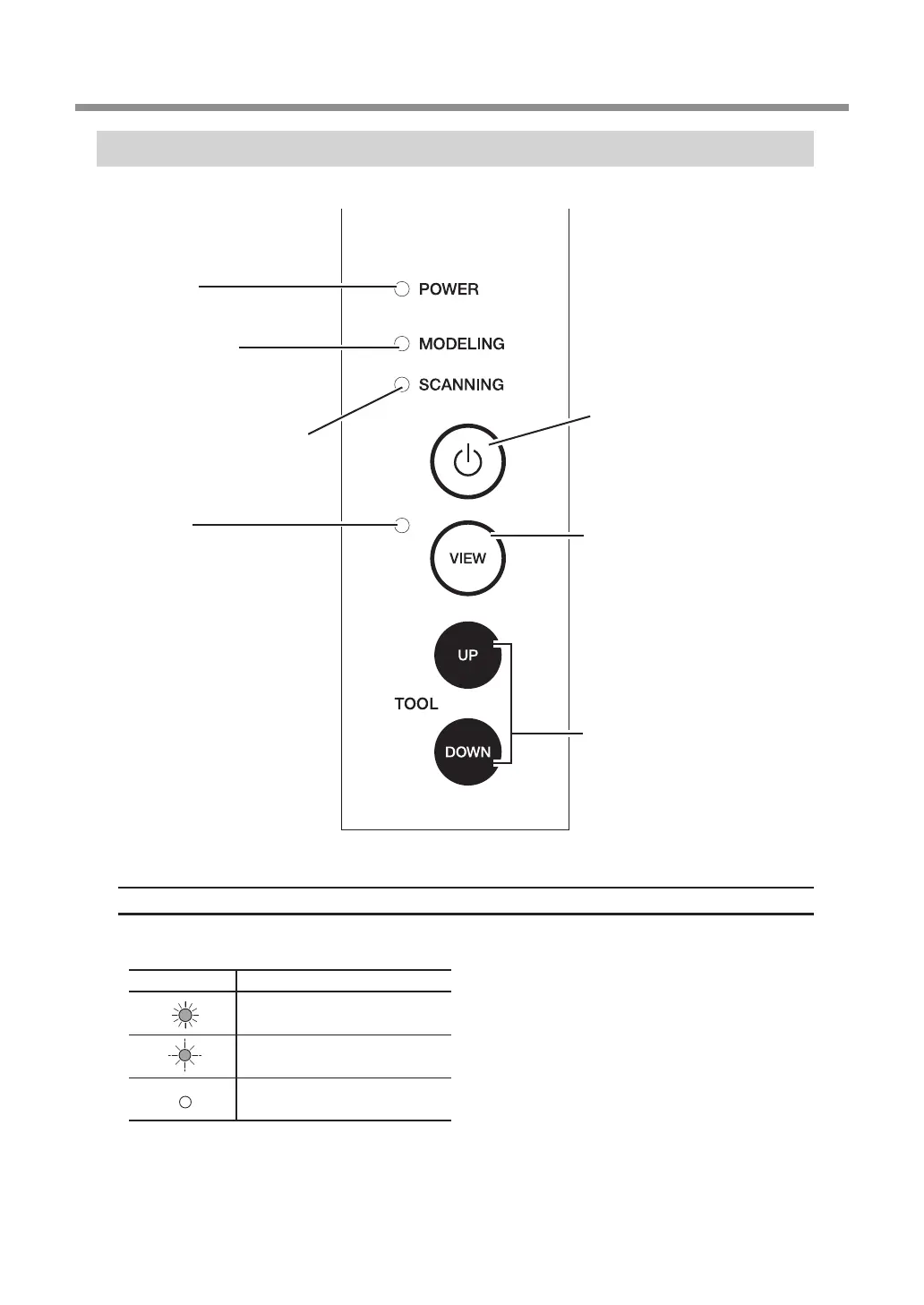

Built-in Panel
Displayed lamps in this document
Lamp status in this document is described below.
Display Status
Lights
Flashes
Dark
Power lamp
Lights up when the machine is
operating.
VIEW lamp
Lights up when the machine is
temporarily stopped. While the
lamp is on, the machine does not
receive processing data.
TOOL-UP/TOOL-DOWN
button
These buttons move the spin-
dle head up and down.
