Chapter 5 Appendix Chapter 5 Appendix
91
Chapter 5 Appendix

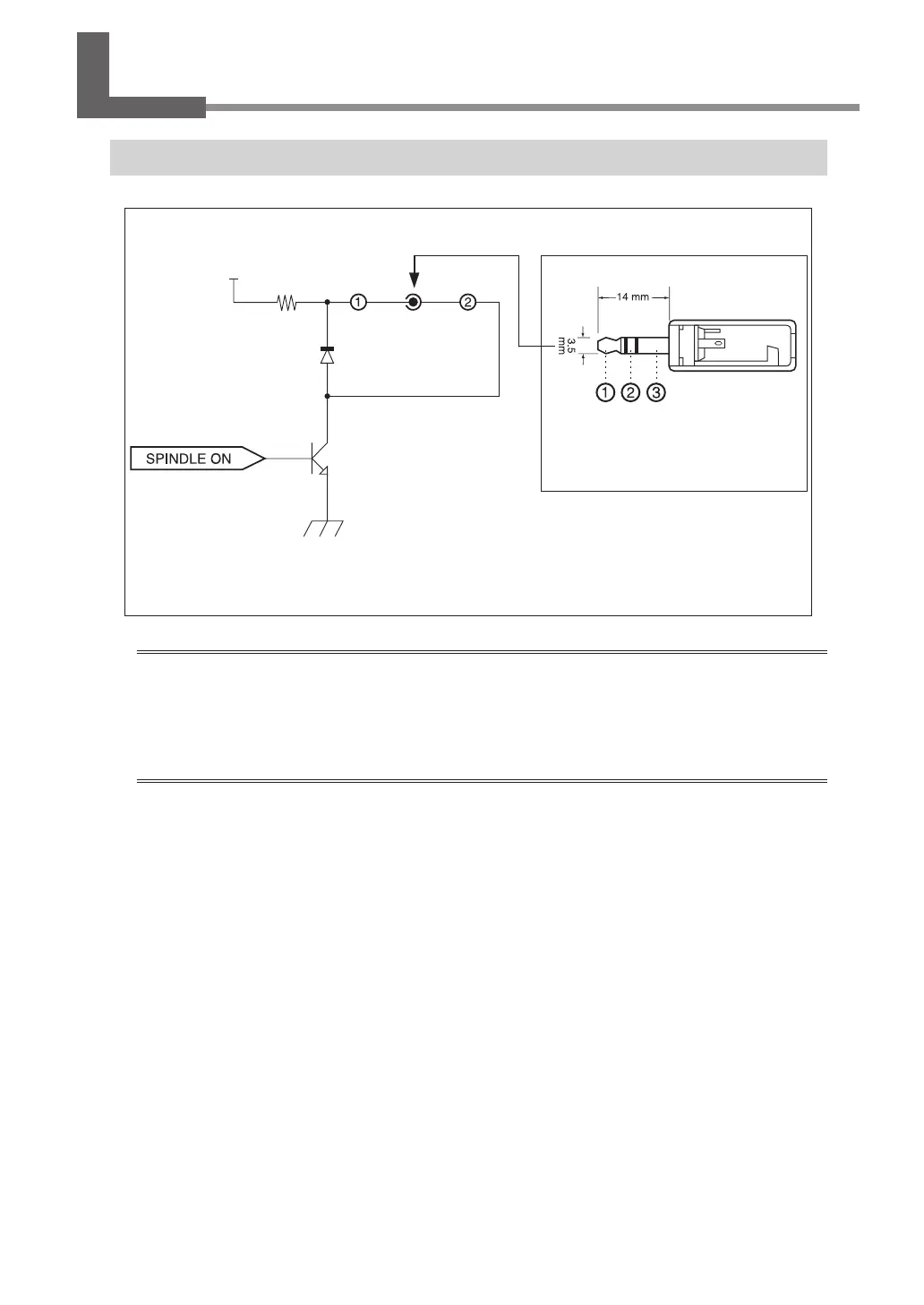

Expansion Connector
Expansion connector
Be sure to use the connector within the rated range shown above.
Do not apply voltage greater than 24 V to the terminal.
Do not short-circuit the connector and earthing.
Adaptive plug
Do not use terminal . Use only terminals and .
No responsible is assumed for eects to which any equipment connected to this external output con-
nector is subjected.
No responsible is assumed for malfunction when using any equipment connected to this external
output connector is subjected.
Use a three-contact plug that
meets the size requirements
above.
This circuit works during spindle motor rotation.
Pin 1 Connector Pin 2
Ic (max)=150 mA
If (max)=1 A
Adaptive plug
+24 V
100Ω/ 2 W
5-8 Specications
