Chapter 5 Appendix Chapter 5 Appendix
73
Chapter 5 Appendix
5-2 Using the Engraving Cutter
Installing the Engraving Cutter and Setting the Origin Point
The engraving cutter and collet come as the optional parts. Use a collet that matches the diameter of
the cutter.

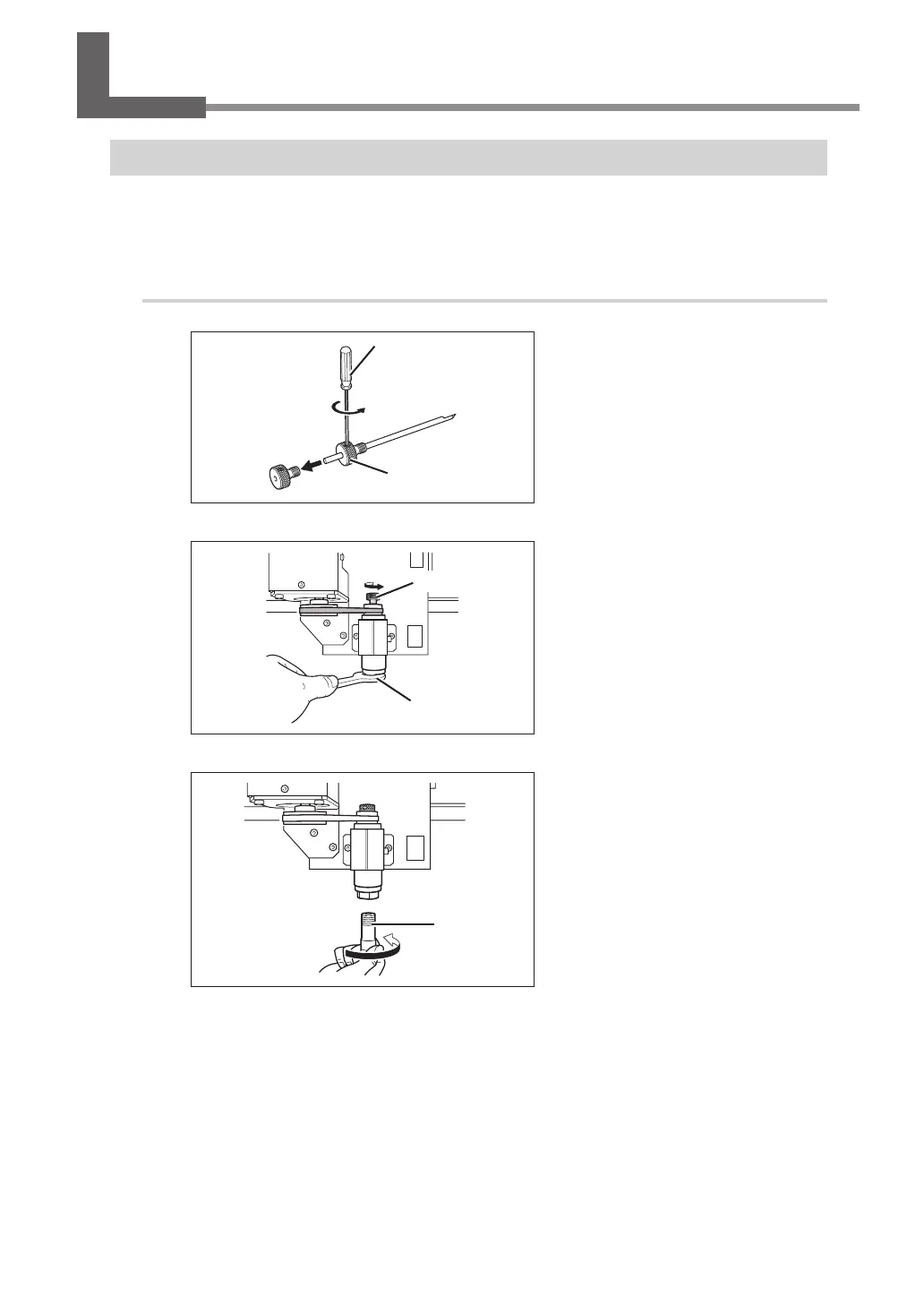

1.
Installing the engraving cutter.
Detach the cutter holder from the
cutter.
While holding the spindle unit
immobile with a large spanner,
tighten the cutter holder.
The cutter holder is reverse-threaded
(that is, you turn it counterclockwise
to tighten it). Be careful to turn it in the
correct direction.
Insert the collet into the spindle
unit from below.
Cutter holder
Hexagonal screw
driver (small)
Spanner (large)
Collet
Cutter holder
To Next Page
