5-1 Using the Z0 Sensor
71
Chapter 5 Appendix
Close the front cover.
For the RML-1 cutting data
When "Selected automatically
(RMX-1/NC Code)" is selected
with the command set selection,
choose "User Coordinate Sys-
tem" with Set Origin Point.

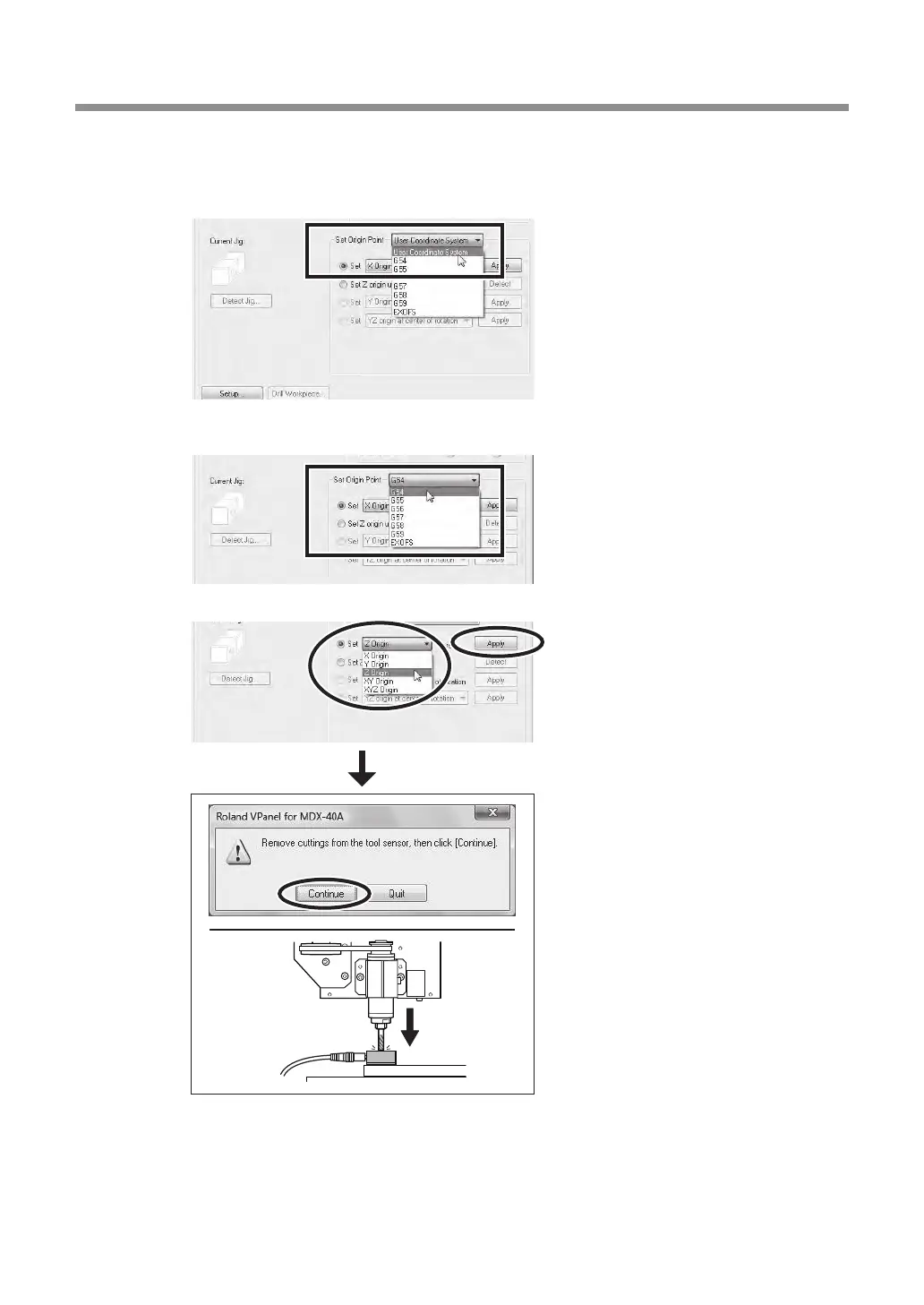

If "RML-1" is selected with the command
set selection, only "User Coordinate
System" is selectable with the Set Origin
Point.
For the NC code cutting data
With "Set Origin Point", select the
workpiece coordinate system that
matches the cutting data.
Select "Set "Z Origin" here", and
click [Apply].
Click [Continue].
The tool slowly descend until it contacts
the sensor.
When the tool rises and stops, the setting
operation is complete.
To Next Page
