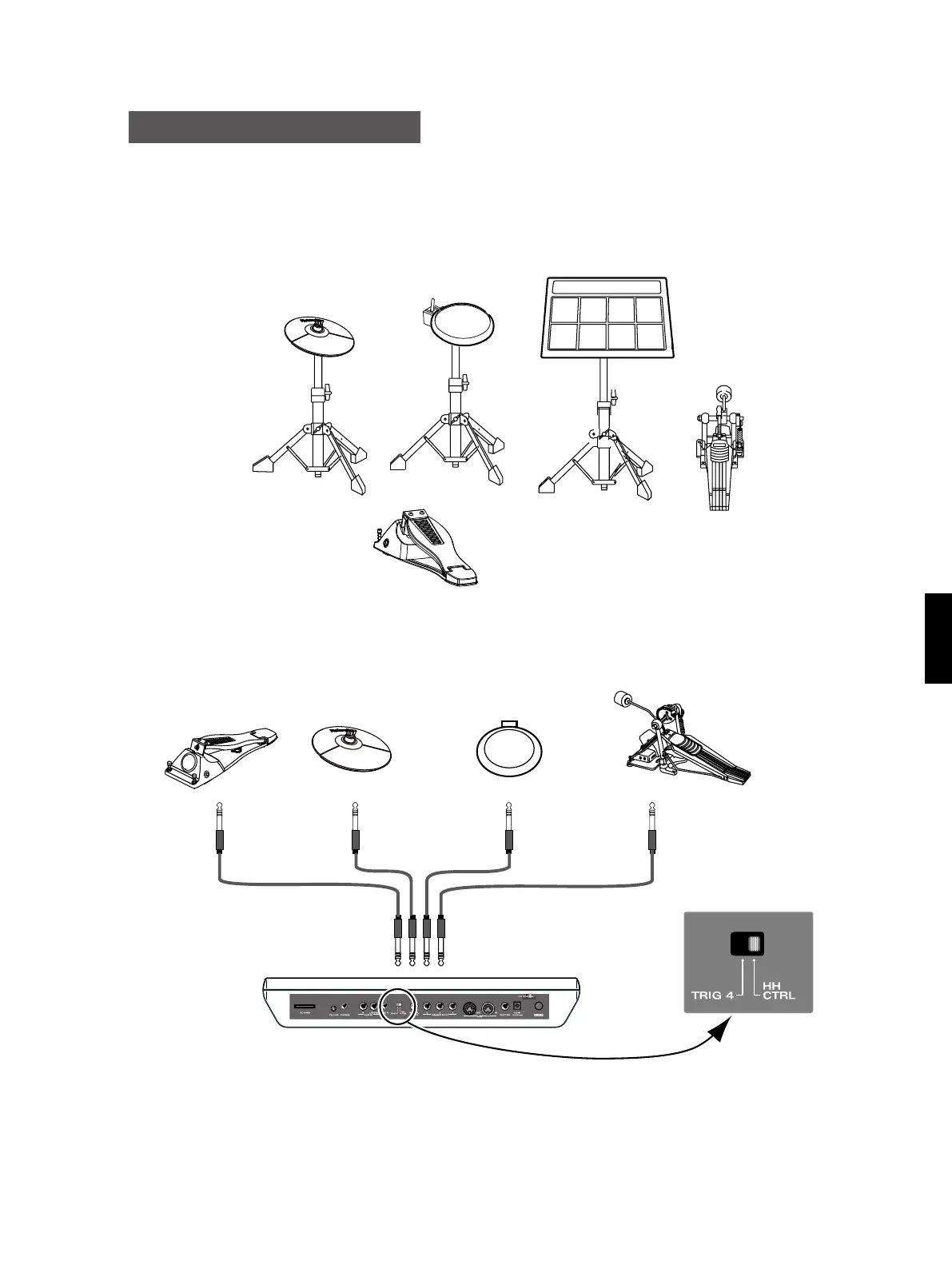

Example 2: Full Set Kit
If you wish to connect a hi-hat control pedal (FD-8; sold separately) to the HH CTRL/TRIG 4 jack,
set the [HH CTRL/TRIG 4] select switch to HH CTRL. If you wish to connect an external pad, set the
switch to TRIG 4.
Set to HH CTRL
TRIGGER INPUT (1–3)
HH CTRL
/TRIG 4
TRIG 1
TRIG 2TRIG 3
HH CTRL/TRIG 4
Pad (CY-5)
Kick Trigger Unit (KD-7)
+ Kick Pedal
Kick
Hi-Hat
Hi-Hat Control Pedal
Pad (PD-8)
Crash Splash Ride China
Tom2 Tom3 Tom4
Tom1
Hi-Hat Control
Pedal (FD-8)
Snare

Roland Octapad SPD-20X Specifications

General

Velocity Sensitivity	Yes
Pads	8
Presets	50
Effects	EQ
Display	LCD
MIDI	MIDI
Connectivity	MIDI
Outputs	Stereo (L/Mono, R)
Inputs	4 x External Trigger Inputs, Footswitch Jack
Power Supply	AC Adapter
