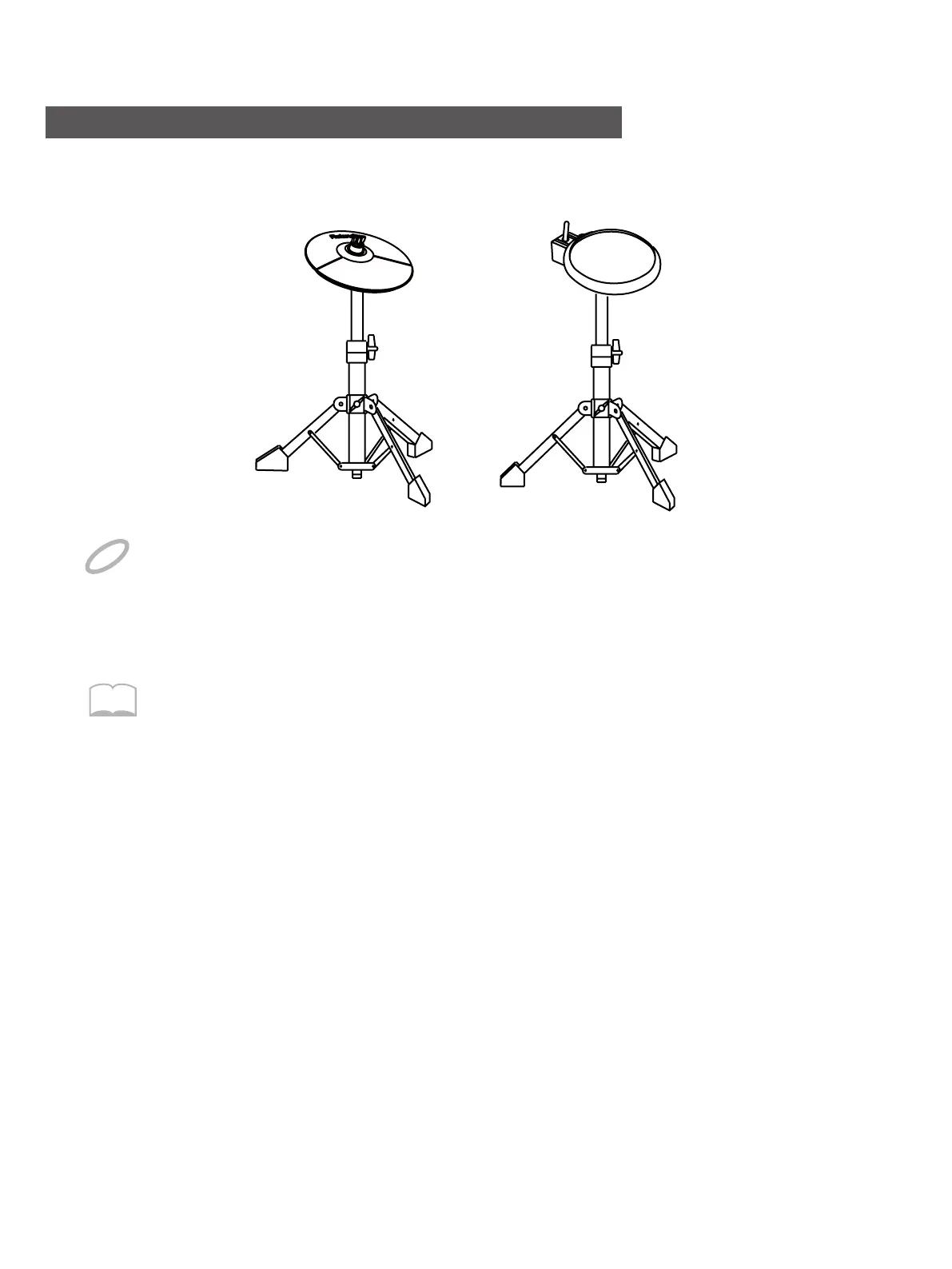

The external pad, cymbal and kick trigger unit are connected to the Trigger Input jacks 1, 2, and 3, or
the HH CTRL/TRIG 4 jack. (However, in this case, the Trigger Input switch is set to TRIG 4.)
Precautions When Connecting a External Pad
You may hear a brief sound when you change the position of the switch. This is normal, and should not be a
cause for concern.
NOTE
To perform with even greater expression, we recommend the use of the following specialized pads from
Roland PD-8, CY-5, CY-8, KD-7 and KD-9.
When you use these pads, it is necessary to set the pad type with the TRIGGER parameter TRIG TYPE.
MEMO
The four Trigger Input jacks provided with the SPD-20X are already Dual Trigger Type. This is to allow
processing of two types of signals, for when you strike the head and for rim shots, when you connect a
PD-8, CY-5 or CY-8.
