Installing the AP
7441 Physical Installation
Ruckus Wireless Indoor AP 100.2.0 User Guide, 800-70892-001 Rev A 101
The 7441 DAS AP can be installed in a variety of configurations, as designed by the
DAS vendor. For one example scenario in a multi-floor building, see Figure 45. DAS
systems typically require RF design using sophisticated RF modeling tools in order
to design effective Wi-Fi coverage on the DAS system. Detailed RF specs may be
secured on the Ruckus Support Site.

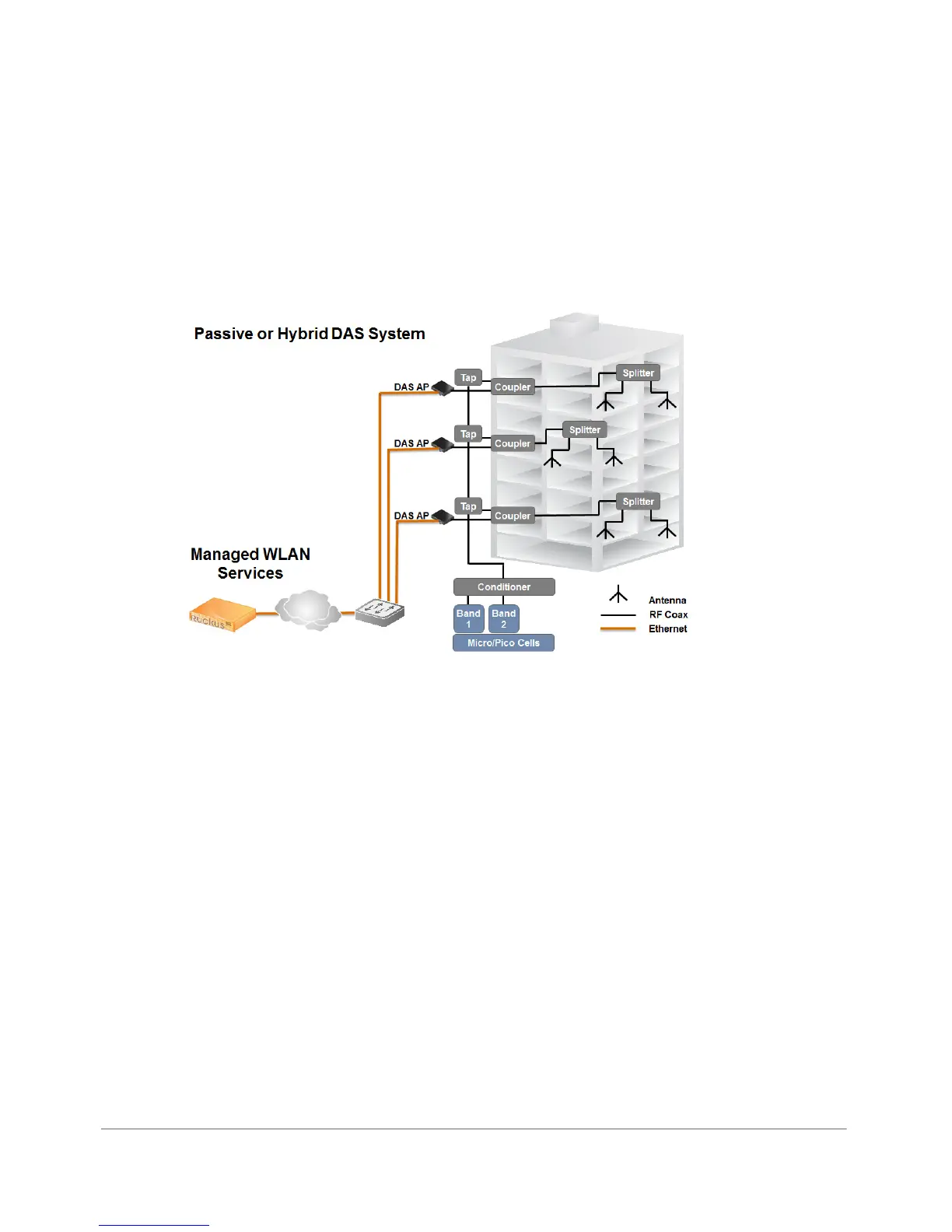

Figure 45. 7441 DAS AP installation example
