ZoneFlex 7321 AP
The ZoneFlex 7321 is a best price/performance dual-band 802.11n SME AP.
NOTE The 100.x AP base images support standalone mode and FlexMaster (FM)
WLAN manager operation. The SmartZone software-compatible images only
support SCG, SZ and vSZ controllers. The ZD-compatible images only support ZD
controllers.
The 7321 requires a minimum of AP base image 100.0.0 and later to operate, or
SCG 1.1 and later, vSZ 2.5 and later, SmartZone software 3.2 and later, or ZD 9.4
and later to operate.
The 7321 includes five LEDs on its front panel and buttons and connectors on its
rear panel.
Front Panel
Figure 4 shows the top view of the 7321. For a description of front panel elements,
refer to Ta b le 6 .

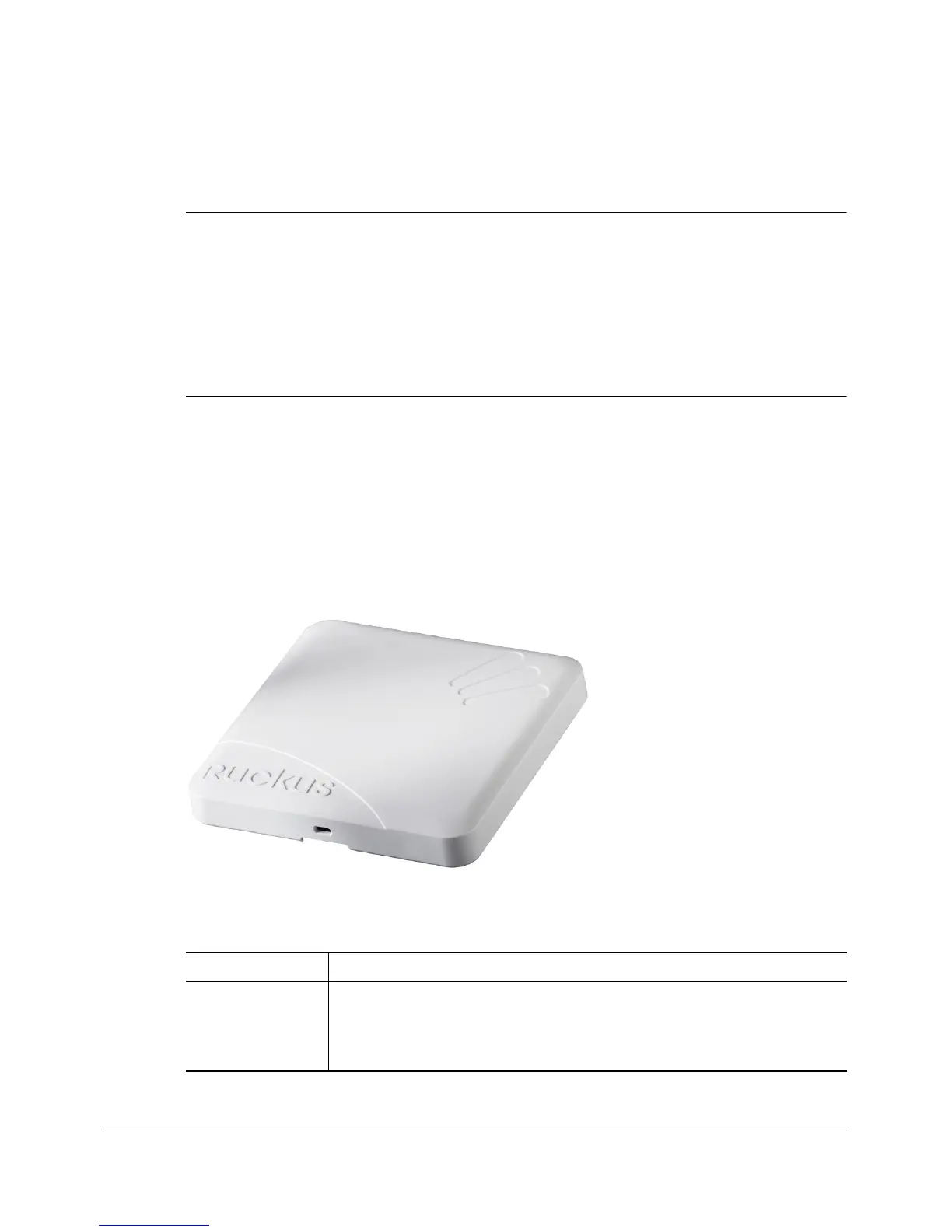

Figure 4. 7321 front panel
Table 6. 7321 front panel elements
LED Description
PWR LED • Off: Off.
• Red: Boot up in process.
• Green: On.
