Installing the AP
7441 Physical Installation
Ruckus Wireless Indoor AP 100.2.0 User Guide, 800-70892-001 Rev A 103
Mounting Instructions
The 7441 mounting options include desktop, wall mounting (flat), wall mounting
(horizontal), and DIN rail mounting. Continue with one of the following:
• Wall Mounting (Flat)
• Wall Mounting (Horizontal)
• DIN Rail Mounting
• Grounding the AP
• DIN Rail Removal
Wall Mounting (Flat)
1 Attach the wall mounting brackets to the 7441 as shown in Figure 47.

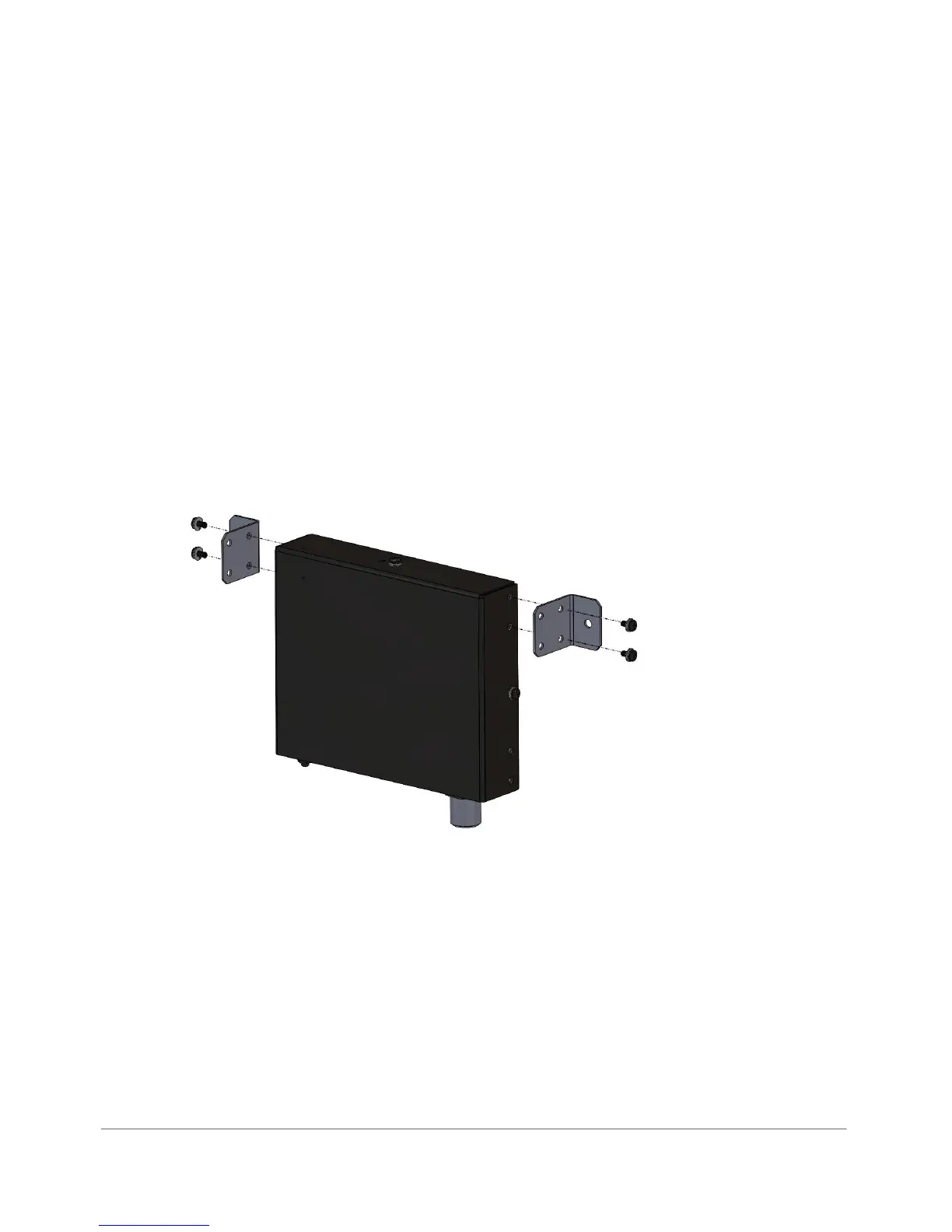

Figure 47. 7441 flat wall mount
2 Place the AP on the wall and mark the locations for screw holes.
3 Drill screw holes, place the AP onto the wall and insert screws.
Wall Mounting (Horizontal)
The 7441 can be mounted to a wall horizontally as shown in Figure 48.
