Installing the AP
7055 Physical Installation
Ruckus Wireless Indoor AP 100.2.0 User Guide, 800-70892-001 Rev A 99
Using the 110 Punch Down Block
CAUTION! Do not connect both the Punch-down block and the Uplink port to a
network. Only one connection can be used at a time.
If you prefer to use the 110 Punch-down block connector rather than the RJ-45
connector for power and network connectivity, refer to the following diagram for
wiring details.

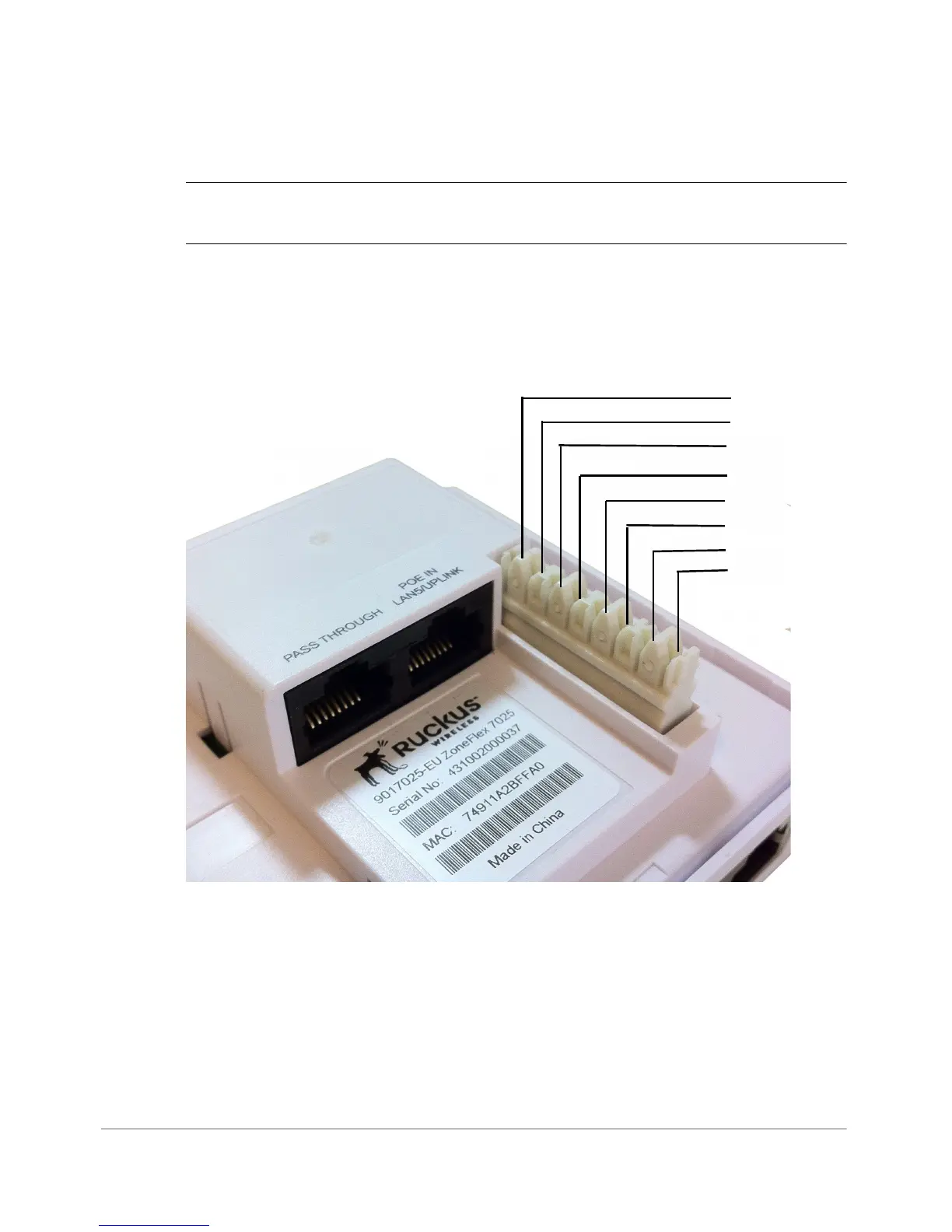

Figure 44. 7055 AP punch-down block wiring
White/Orange
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
