Reset Buttons

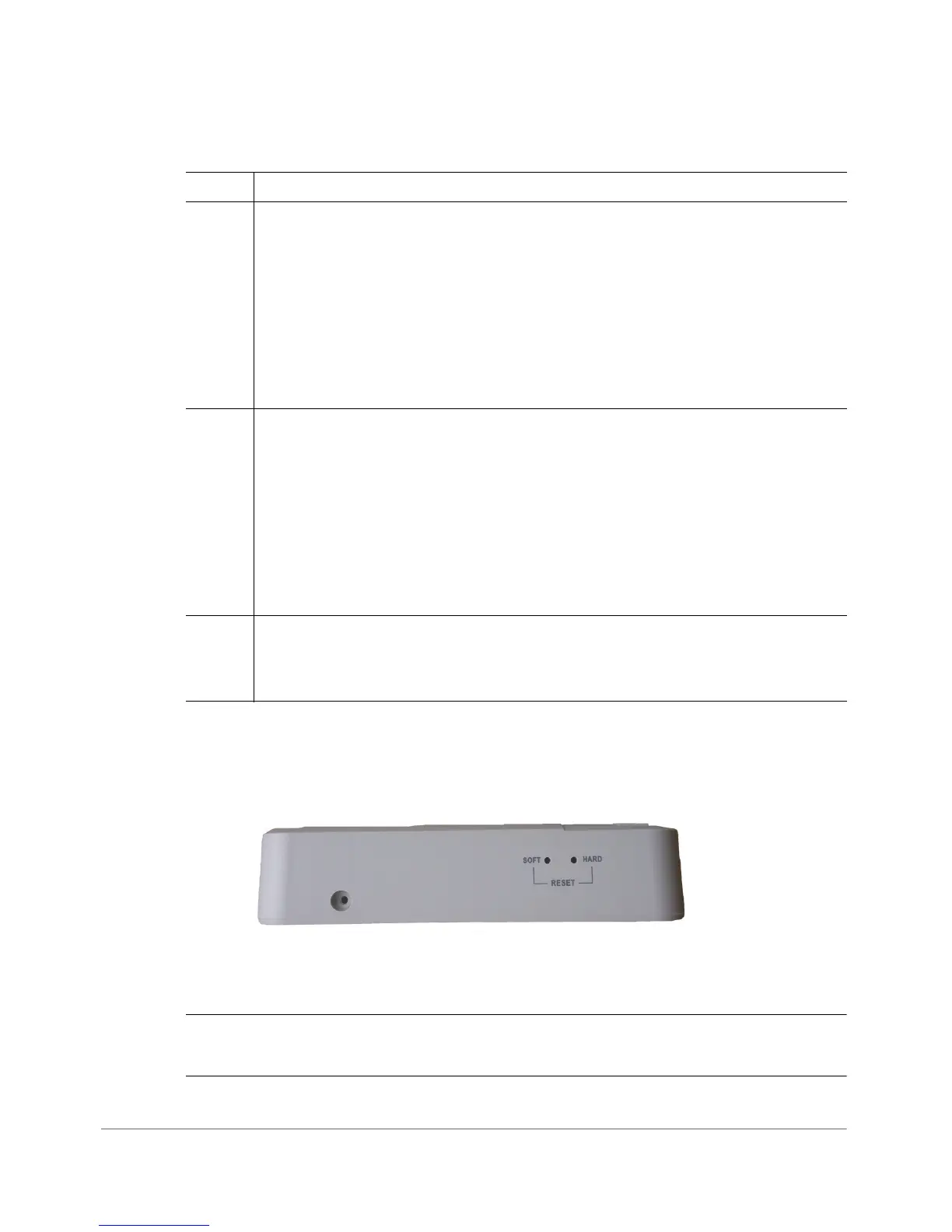

Two reset buttons on the left side of the AP are used to reboot or factory reset the AP.
Figure 3. Reset buttons
Press and hold the Soft Reset button for three seconds or more to reset the AP to
factory defaults. Press and release the Hard Reset button to restart the AP.
NOTE On the 7055, the Hard reset button restarts the AP, while the Soft reset
button reverts the AP to factory default settings.
AIR Off: The AP is operating in standalone mode or operating as a root AP (RAP)
or a non-mesh AP.
Green: The AP is functioning as a Mesh AP (MAP), and the wireless signal to
its uplink AP is good.
Fast flashing green (two flashes every second): The AP is functioning as a
Mesh AP (MAP), and the wireless signal to its uplink AP is fair.
Slow flashing green (one flash every two seconds): Mesh networking is
enabled, but the AP is still searching for a mesh uplink.
DIR
Off: The AP is not being managed by ZoneDirector (standalone mode).
Green: The AP is being managed by ZoneDirector.
Slow flashing green (one flash every two seconds): The AP is being
managed by ZoneDirector, but is currently unable to communicate with
ZoneDirector.
Fast flashing green (two flashes every second): The AP is being managed
by ZoneDirector and is currently receiving configuration settings (provisioning)
or an image update.
LAN1 -
LAN4
Green: Link up.
Flashing green: Activity.
Off: Link down.
Table 5. ZF 7055 LEDs (Continued)
LED Meaning
