ZoneFlex 7441 DAS AP
The ZoneFlex 7441 is a Wi-Fi AP used on coax distributed antenna system (DAS)
networks.
NOTE The 100.x AP base images support standalone mode and FlexMaster (FM)
WLAN manager operation. The SmartZone software-compatible images only
support SCG, SZ and vSZ controllers. The ZD-compatible images only support ZD
controllers.
The 7441 requires a minimum of AP base image 100.0.0 and later to operate, or
SCG 2.5 and later, vSZ 2.5 and later, SmartZone software 3.2 and later, or ZD 9.7
and later to operate.
The 7441 includes five LEDs, power, network and DAS coaxial connectors on its
front panel.
Front Panel
Figure 17 shows the front view of the 7441. For a description of each front panel
part, refer to Ta b l e 1 8.

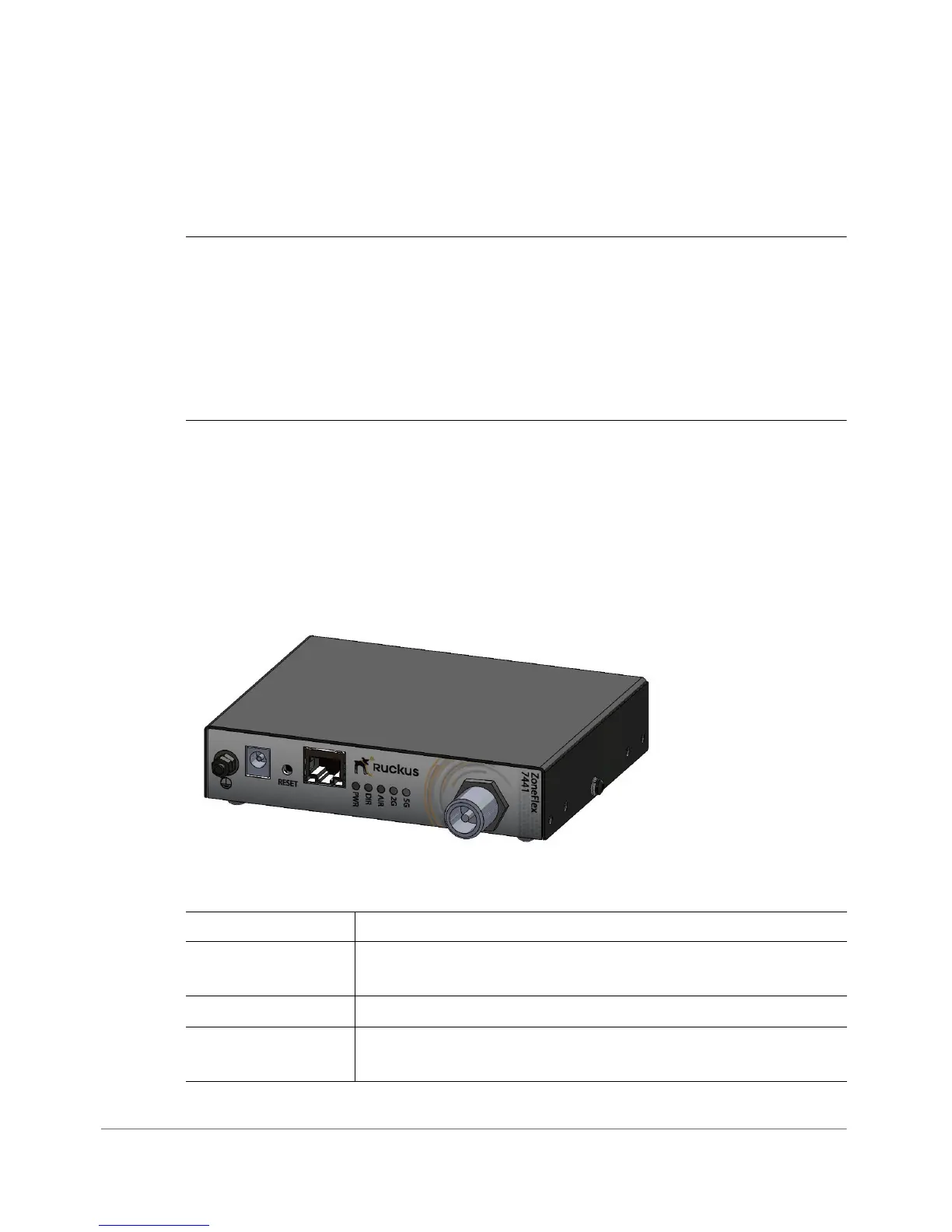

Figure 17. 7441 top view
Table 18. 7441 front panel elements
LED Description
Ground post Attach the ground wire using the included terminal ring and hex
nuts.
Power socket DC power socket.
Reset button Resets the AP to factory default settings if held for more than 5
seconds.
