Introducing the Ruckus Wireless AP
Getting to Know the AP Features
Ruckus Wireless Indoor AP 100.2.0 User Guide, 800-70892-001 Rev A 16
Rear Panel Features
Figure 2 shows the rear panel of the 7055. For a description of each rear panel
element, refer to Tab l e 4 .

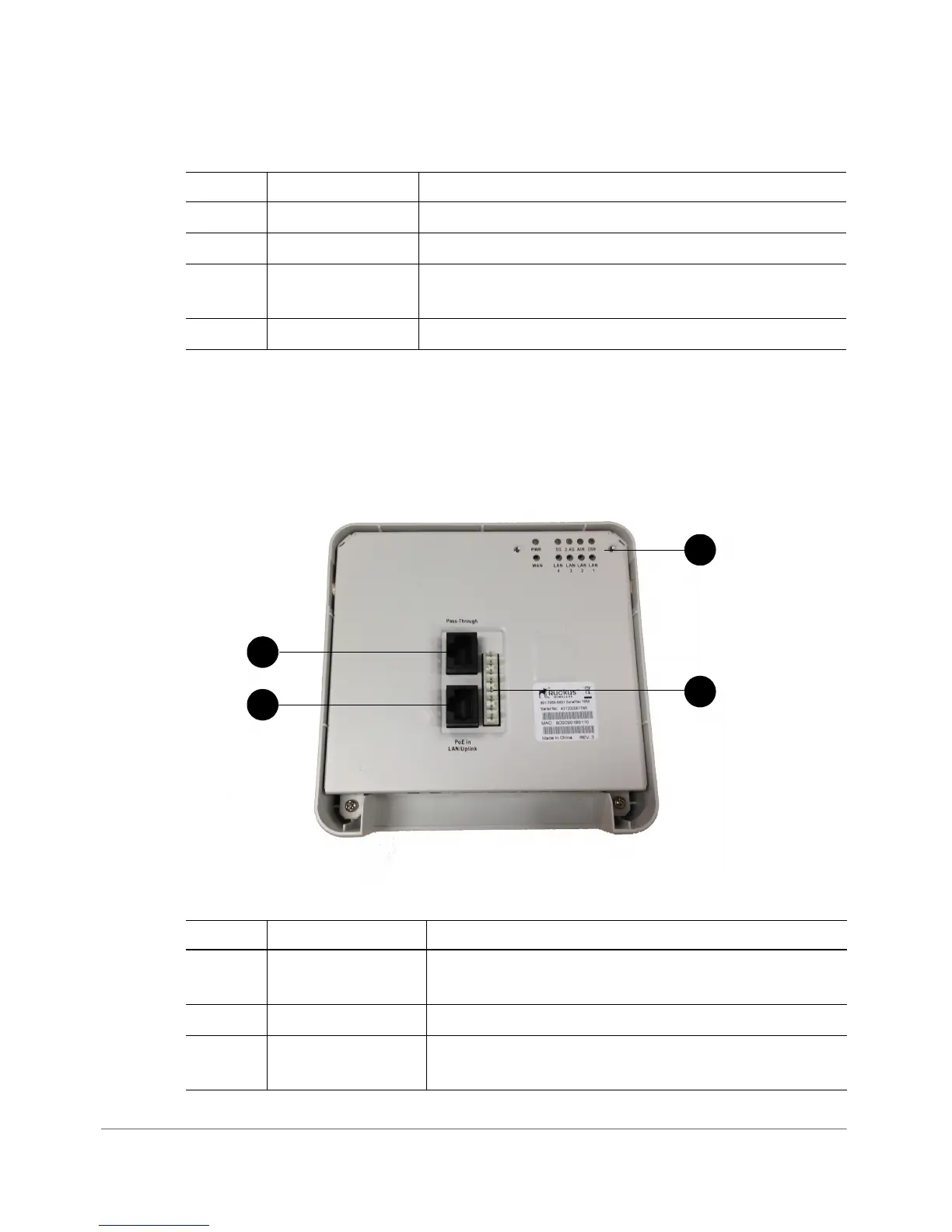

Figure 2. ZF7055 rear panel
2 Power Input Optional 48V DC power input.
3 LAN1-LAN3 Three 10/100 RJ-45 Ethernet Ports.
4 LAN4 One 10/100 RJ-45 LAN port with PoE out. Supports
802.3af PSE Class 0/2 (depending on power input).
5 Reset buttons Refer to
“Reset Buttons” on page 18 for details.
Table 4. ZF 7055 rear panel features
Number Name Description
1 PoE In LAN/Uplink Uplink LAN port that supports 802.3af and 802.3at
Power over Ethernet (PoE) input.
2 Punch down Block 110 punchdown block.
3 Pass Through Port RJ-45 pass through port for the pass through
connection.
Table 3. ZF7055 front view features (Continued)
Number Name Description
