Introducing the Ruckus Wireless AP
Getting to Know the AP Features
Ruckus Wireless Indoor AP 100.2.0 User Guide, 800-70892-001 Rev A 68
Rear Panel
The rear panel of the R700 includes one 10/100/1000 PoE Ethernet port, 10/100/
1000 Ethernet port, power socket and reset button. See Tab l e 3 5 for a description
of each rear panel part.

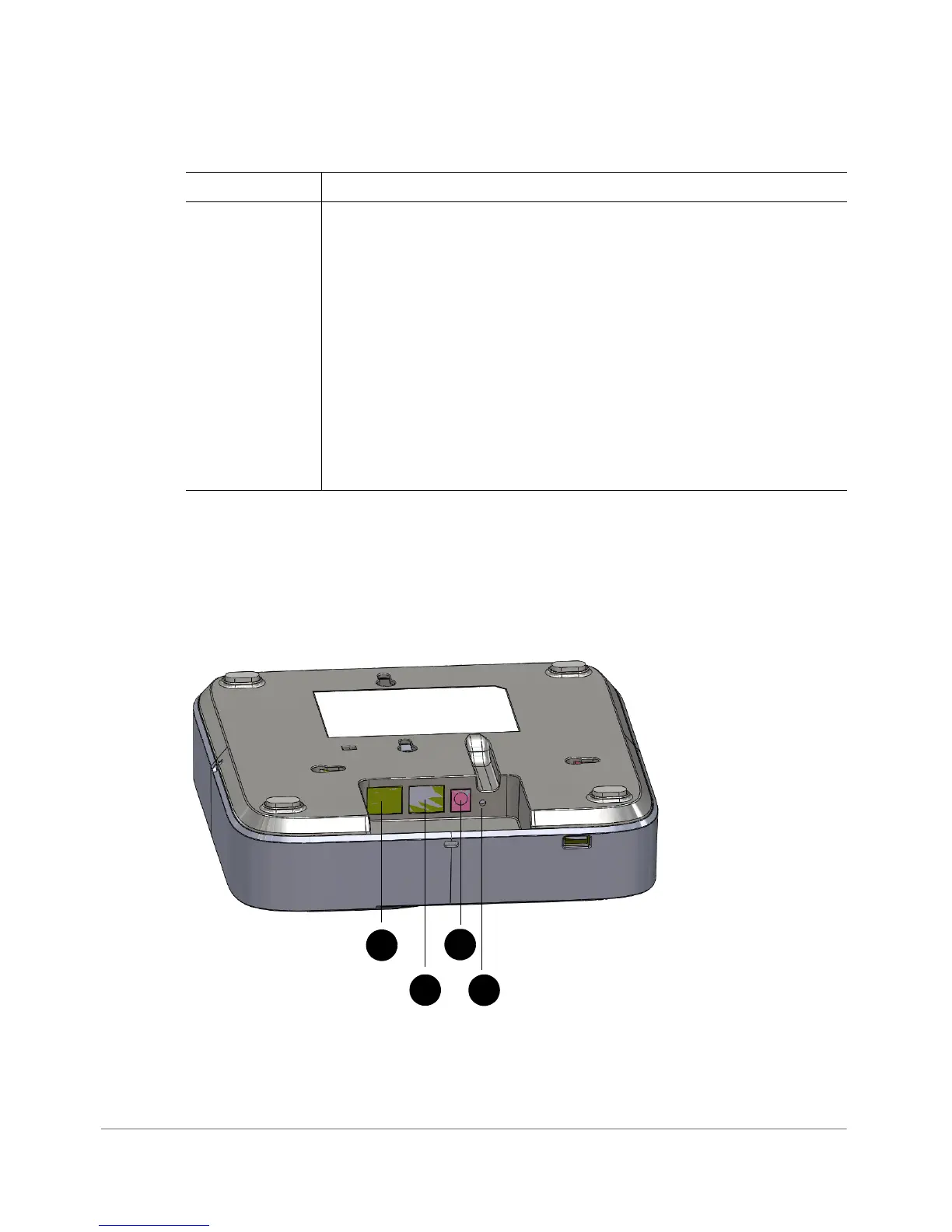

Figure 31. R700 rear panel
5GHz LED • Off: The WLAN service is down.
• Amber: The WLAN is up, but no clients or downlink MAPs are
associated/connected.
• Green: The WLAN is up and at least one client is associated. No
downlink MAPs are connected.
• Slow flashing green (one flash every two seconds): The WLAN is
up and at least one downlink MAP is connected. No clients are
associated.
• Fast flashing green (two flashes every second): The WLAN is up,
at least one downlink MAP is connected, and at least one client is
associated.
Table 34. R700 front panel elements (Continued)
LED Description
