Introducing the Ruckus Wireless AP
Getting to Know the AP Features
Ruckus Wireless Indoor AP 100.2.0 User Guide, 800-70892-001 Rev A 71
Front Panel

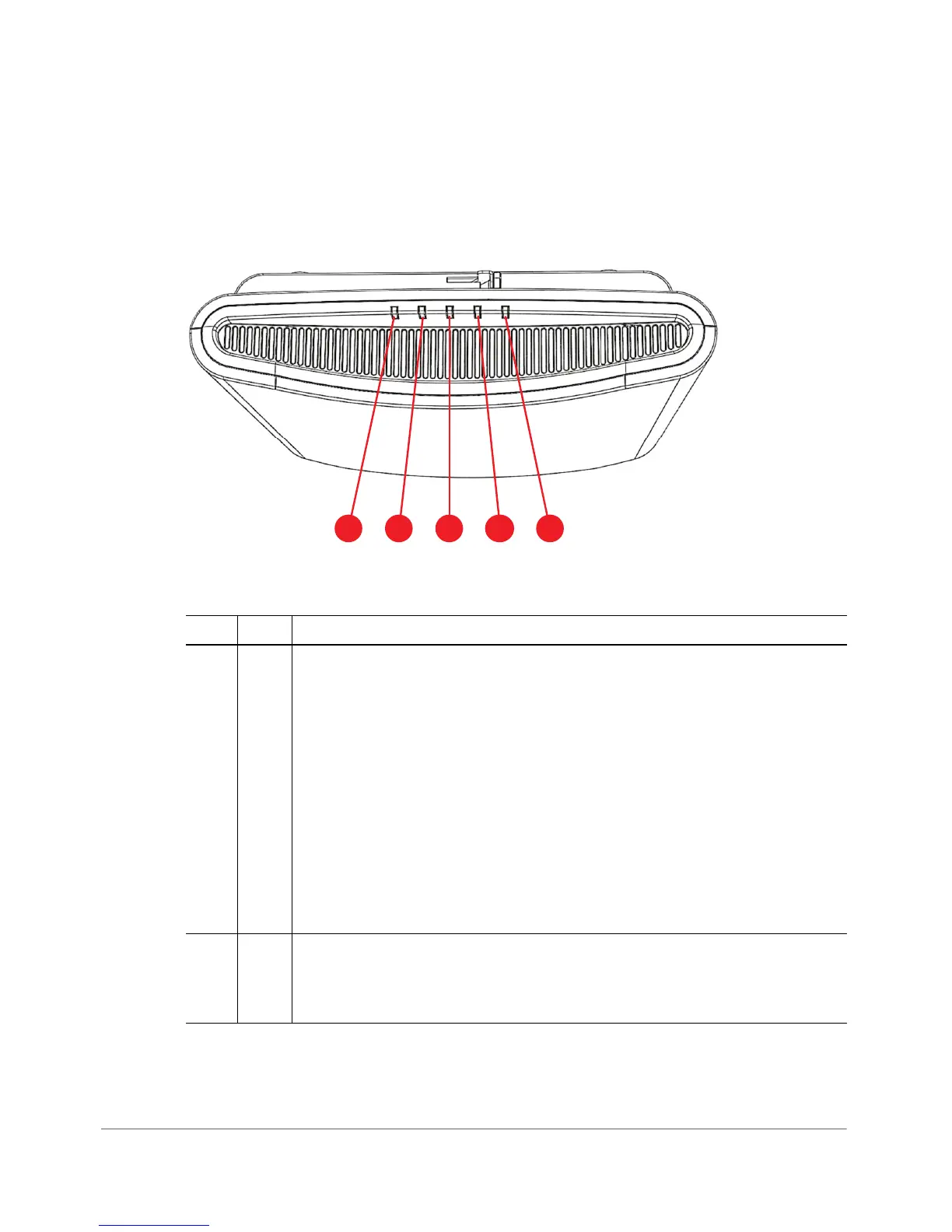

Figure 32 shows the front view of the R710. For a description of the front panel
LEDs, refer to Tab le 3 7 .
Figure 32. R710 front view
Table 37. R710 front panel LEDs
No. LED Description
15
(GHz)
• Off: The WLAN service is down.
• Amber: The WLAN is up, but no clients or downlink MAPs are
associated/connected.
• Green: The WLAN is up and at least one client is associated. No
downlink MAPs are connected.
• Slow flashing green (one flash every two seconds): The WLAN is up
and at least one downlink MAP is connected. No clients are
associated.
• Fast flashing green (two flashes every second): The WLAN is up, at
least one downlink MAP is connected, and at least one client is
associated.
22.4
(GHz)
• Off: The WLAN service is down.
• Green: The WLAN is up and at least one client is associated.
• Amber: The WLAN is up. No clients are associated.
