Cubis
®
MCE Operating Instructions 11
Device Description
3.2 Weighing Pan and Associated Components

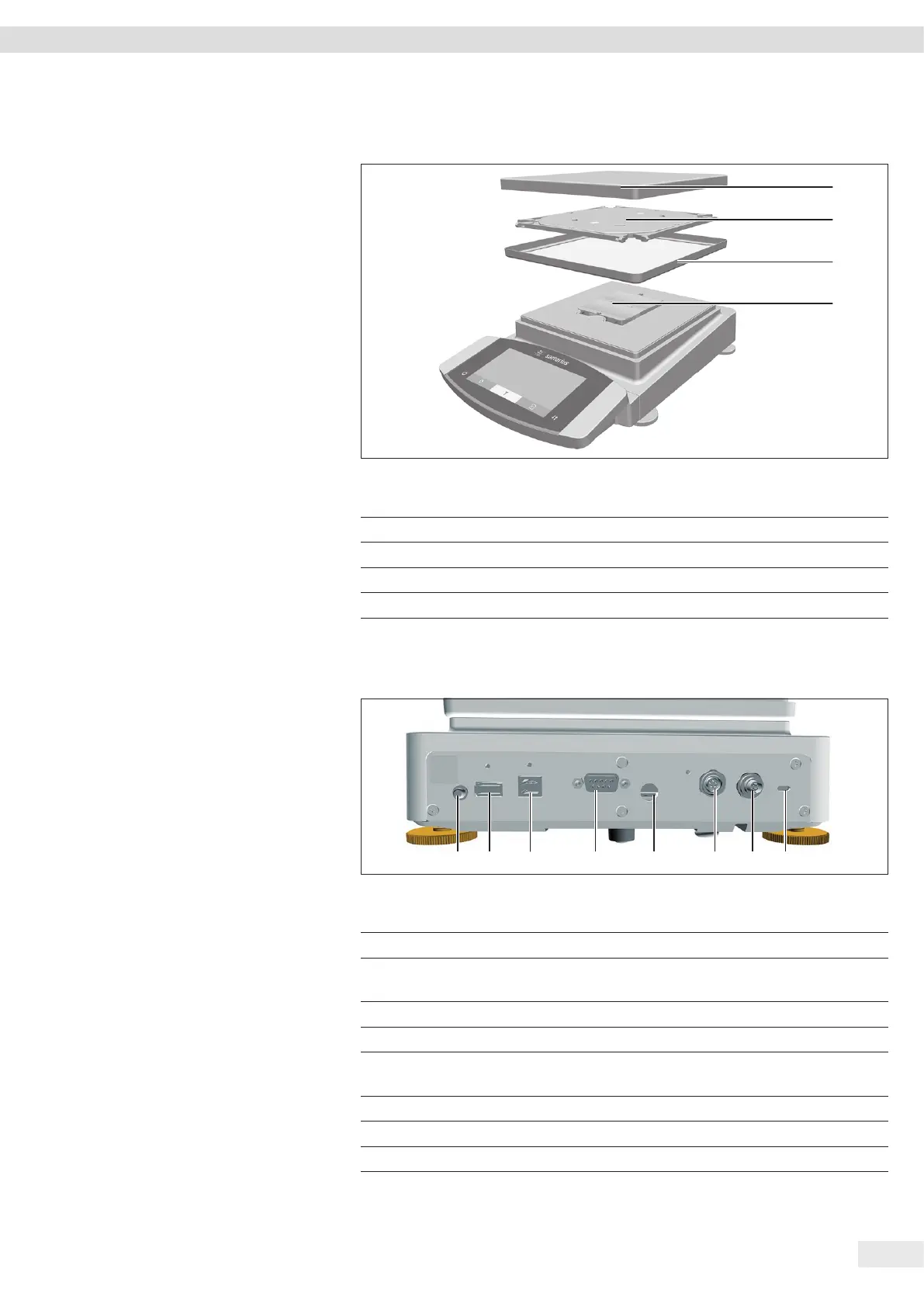

Fig. 2: Precision balance (example)
Pos. Designation
1 Weighing pan
2 Pan support
3 Shield disk
4 Pan retainer
3.3 Connections and Components on the Weighing Module
Fig. 3: Connections for weighing module
Pos. Designation Description
1 On key
2 USB-A connection For printers and for software updates via a
USB mass storage device
3 USB-B connection For connection to a PC
4 COM-RS232 connection 9-pin, for connection to a PC or PLC
5 Access switch Protects the device from changes to the device
settings. Is sealed for conformity-assessed devices.
6 Peripheral connection For connecting Sartorius accessories
7 Power supply For connection to the power supply
8 Slot For attaching a “Kensington” anti-theft device
3
4
2
1
8
1 2 3
4 5
6 7
