26 Cubis
®
MCE Operating Instructions
Installation

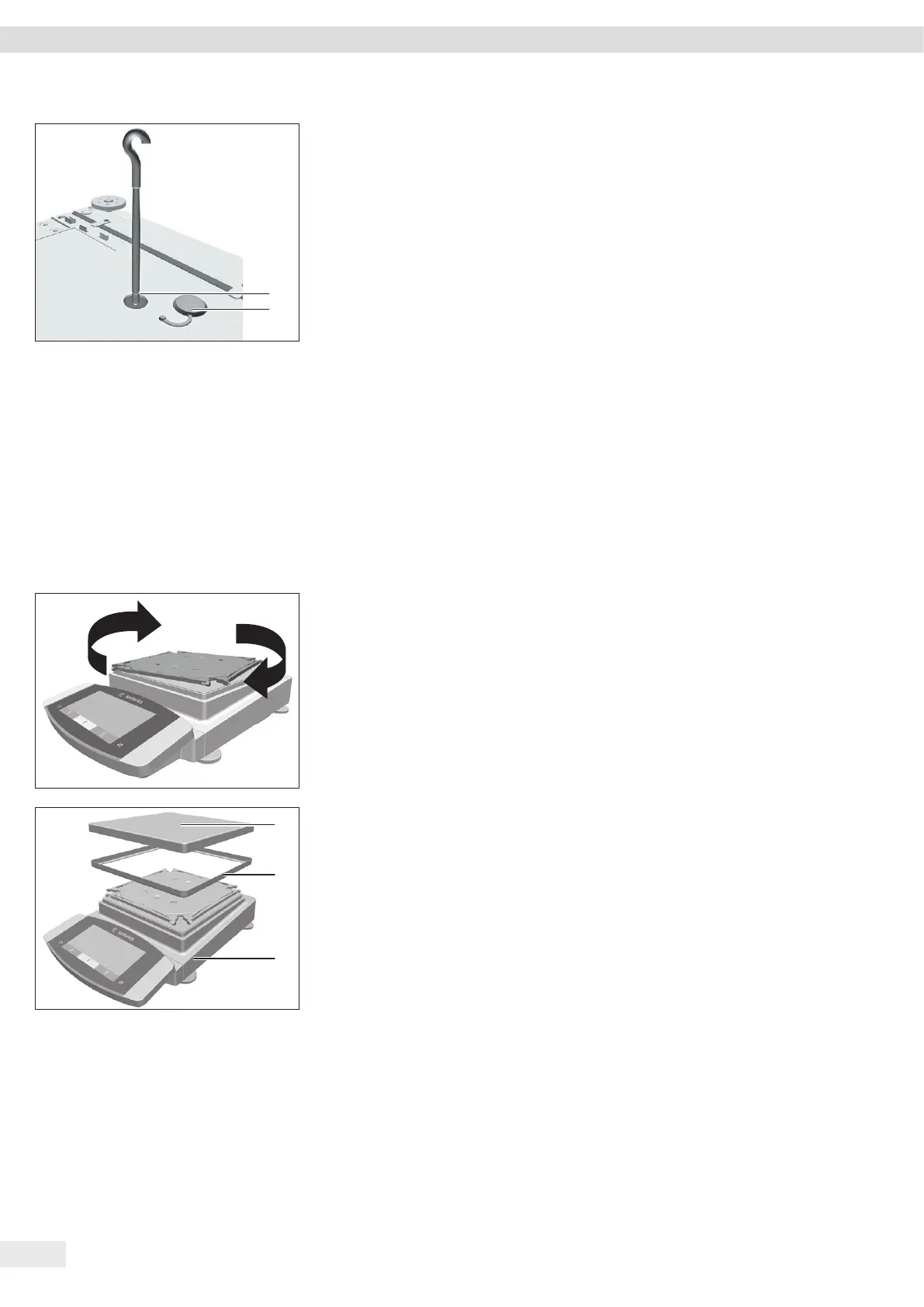

t Pull the cover of the below-balance weighing equipment out.
t NOTICE Damage to the device from cross-threading! Ensure that the hook for
below-balance weighing is inserted straight into the thread opening (1).
t Install a draft protection shield.
t Suspend the sample on the hook for below-balance weighing, e.g. with a wire.
t To cover the below-balance weighing equipment after weighing:
t Remove the hook for below-balance weighing from the thread.
t Return the hook for below-balance weighing to its retainer on the underside
of the weighing module.
t Re-insert the cover of the below-balance weighing equipment.
5.6 Positioning the Weighing Pan and Associated Components
Procedure
t Position the pan support down onto retainer, diagonally to the weighing module,
and press slightly.
t Carefully turn the pan support clockwise until the two buttons engage.
y The pan support is now attached.
t Place the shield plate (2) on the weighing module (3).
t Place the weighing pan (1) on the pan support.
5.7 Acclimatization
When a cold device is brought into a warmer area: The temperature difference can
lead to condensation of humidity in the device (moisture formation). Moisture in the
device can lead to malfunctions.
t Allow the device to acclimatize for approx. 2 hours at the installation site.
Ensure that the device is disconnected from the power supply during that time.
2
1
1
2
3
