Operating Concept

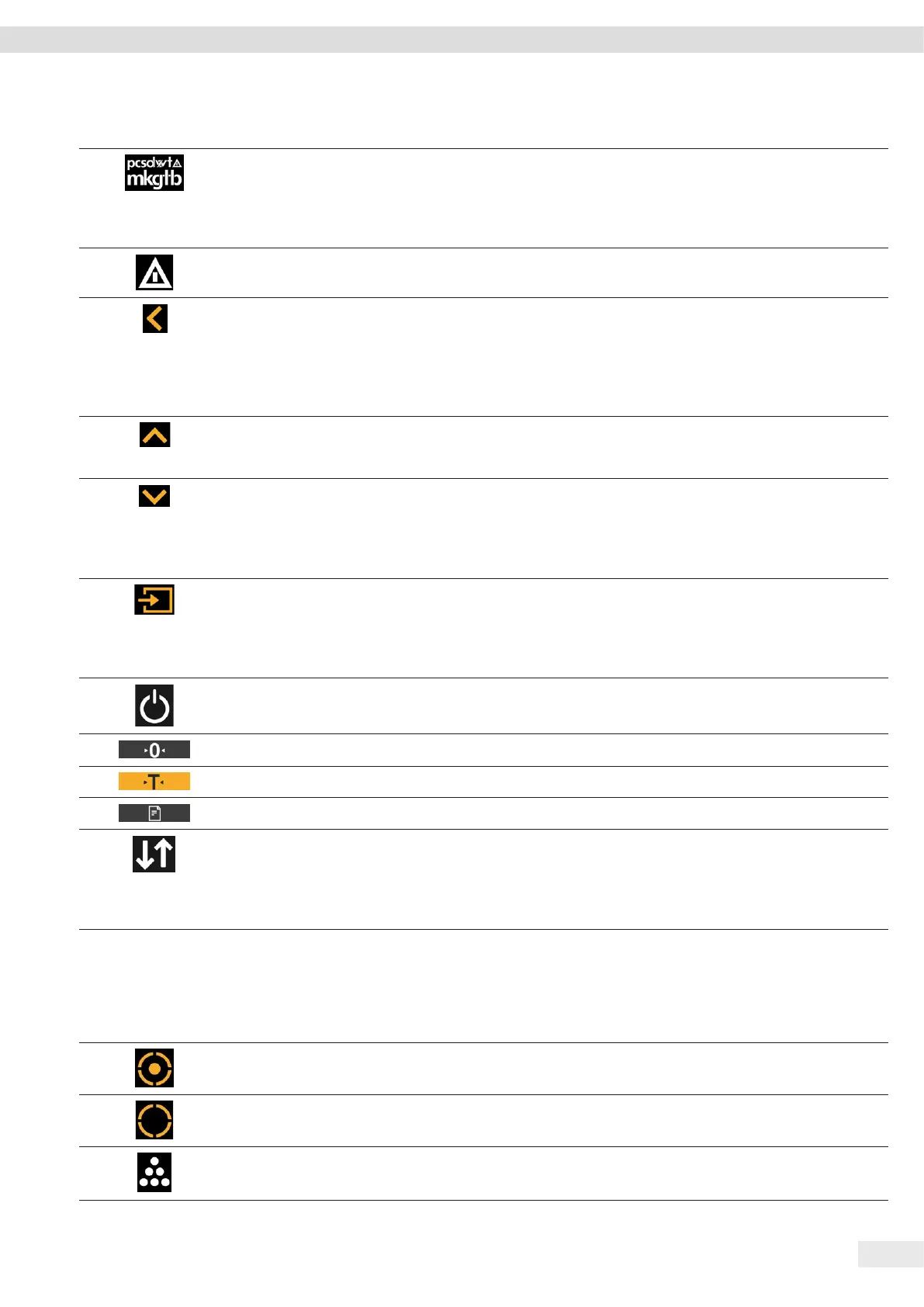

Pos. Symbol Designation Description
7
[Toggle between weight
units] button
If the “Toggle between weight units” function is active:
− If the button is held down: Accesses the “Toggle between weight units” function
menu.
− When the button is pressed: Switches between the basic unit display and up to
4 other units.
8
[Invalid weight value]
button
If a fault exists in the weighing module: Indicates the cause of this fault.
9
[Back] button − In the menu:
− When the button is pressed: Returns to the previous display.
− If the button is held down: Saves the menu settings.
− When entering digits: Selects the previous digit position.
− For an active application: Exits the application and deletes the set reference
value.
10
[Up] button − In the menu: Scrolls through the menu levels or the available configuration
values.
− When entering digits: Increases the displayed value.
11
[Down] button − In the menu: Scrolls through the menu levels or the available configuration
values.
− When entering digits: Decreases the displayed value.
− In the main display of an active application: Accesses the display to set the
reference values.
12
[Confirm] button − In the menu: Accesses the displayed menu level or confirms the displayed
configuration value.
− When entering digits: Selects the next digit position.
− In the main display of an active application: Starts the application process and
saves the set reference value.
13
[On / Off] key If the key is briefly pressed: Switches the operating display on.
If the key is held down: Switches the operating display off.
14
[Zero] key Zeros the device.
15
[Tare] key Starts taring.
16
[Print] key Exports the readouts to the integrated data interfaces.
17
[Change] key − For models without a motorized draft shield, if the “Toggle between weight
units” function is active:
− If the key is briefly pressed: Switches between the set weight units.
− If the key is held down: Accesses the “Toggle between weight units”
function menu.
4.4 Displays in the Operating Display
Pos. Symbol Designation Description
1
[Leveling] display − Indicates that the device is leveled.
− If the center circle is flashing: Indicates that the device is not leveled.
2
[Leveling] display Flashes while the device is leveling.
3
[Counting] display Indicates that the “Counting” application is selected.
