4.1.2 Toggleable Maps
Map toggling is a feature available on all Active
12's. Toggle-enabled MapCards allow you to switch
between different map layers at a particular point
on the same zoom level. For example, you can
flip between the two scales (1:50k and 1:25k) and
the Base Map. It is also possible to toggle between
different map types and map providers.
If a toggle-enabled MapCard is loaded, a mini toggle
symbol appears next to the Stop/Record icon on
the GPS screen in the status bar, indicating the map
inserted can be toggled. This enables the toggle
maps button on the left
.
Please Note: Not all maps are toggleable. Look for
the toggle icon or logo on all of our toggle-enabled
products. The toggle function can also be added
to existing map cards (see satmap.com for further
details on this service).
Getting Started:
Insert your SD card. This will load your Map Packs
screen.
Use the joystick to flip between maps, and select
View Map to access the desired GPS MAP screen.
To access the Map Packs screen at any point,
centre press the joystick (or page forward on the
Primary Screens to POSITION INFO) and select
Map Packs using the lower left-hand side button.
Toggle between maps by pressing the upper
left-hand side button (Toggle maps) and switch
seamlessly between different maps without having
to zoom in or out.
Please note: Most detailed maps have a "ceiling",
and will disappear from the screen when zoomed
out above this ceiling. This is intentional, as the map
detail would be too small to observe clearly. If no
other maps are available for toggling, the Toggle
icon will disappear.

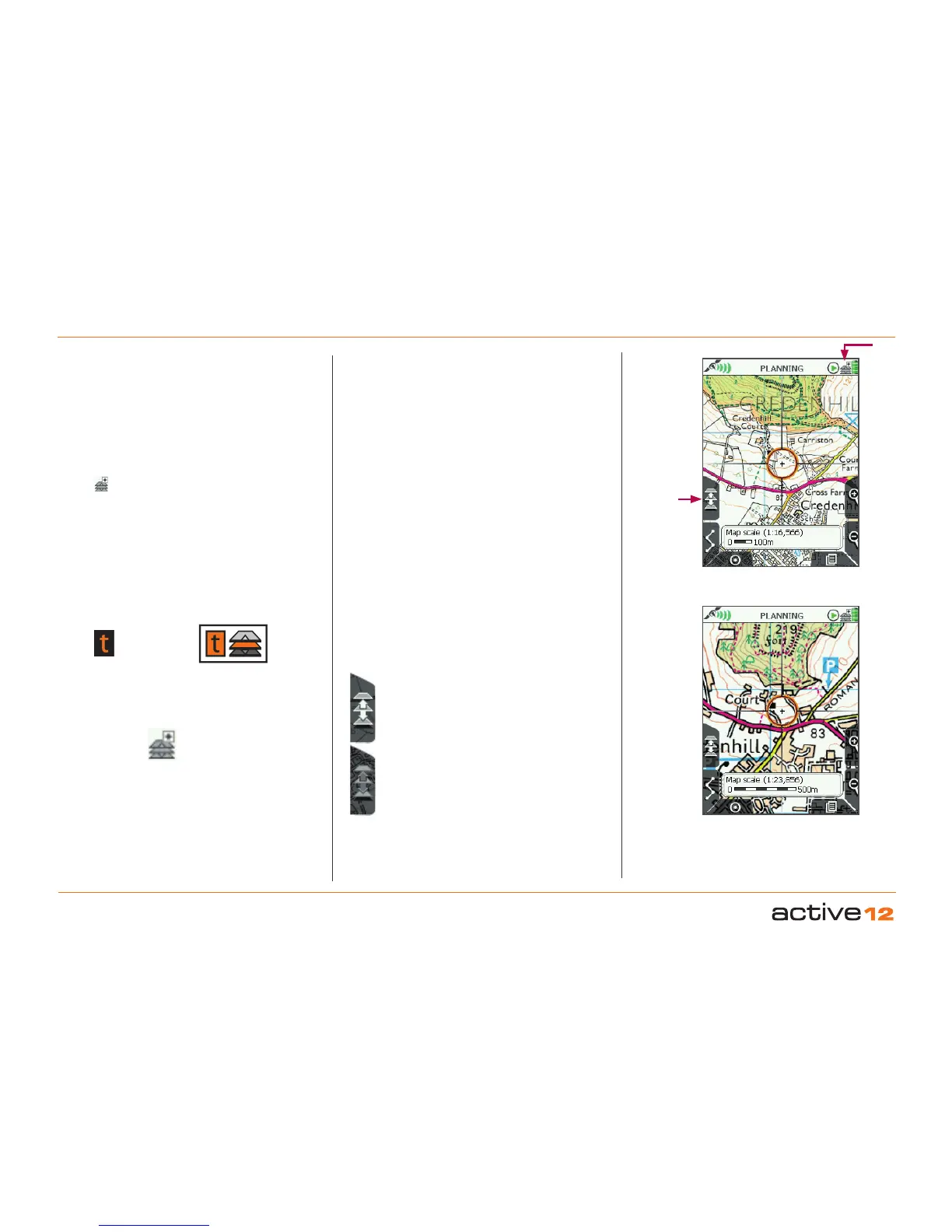

4.1 Screen 1: GPS MAP (...Cont)
Toggle icon
Toggle Symbol
(shown on screen)
Toggle logo
Toggle maps button appears bold when
suitable map card is loaded and map areas
and zoom levels overlap.
Toggle maps button appears gray when
toggle function is not available.
OS 1:25 000
scale mapping
OS 1:50 000 scale
mapping
Toggle maps
Toggle
icon
To Next Page
