13. LOIs (Lines of Interest)
13.1 LOIs (Lines of Interest) Overview
LOIs are Lines of Interest allowing you to plot a line
consisting of multiple waypoints joined together,
instead of a single POI (Point of Interest).
LOIs are drawn in a similar way to a route, but
cannot be followed or activated like a route, or have
comments for individual points. They are used to
represent boundaries or alternative routes. The
description screen shows the length of the line and
the line colour can be edited.
Note: Use SatSYNC to add graphics or more detailed
information to an LOI. (See the SatSYNC 1.5 User
Guide).
13.02 Add LOI Screen
(GPS MAP → MAIN MENU → OOI Menu → Add LOI
by Map)
To create an LOI, select Add LOI by Map from the
OOI Menu and press Select or centre press the
joystick. This will take you to the Add LOI screen
where you will be able to lay down points (green
dots) to form a 'line'.
The orange locator circle has a red cross in the
centre to indicate you are in edit mode and on
the Add LOI screen. You can plot points by either
pressing the top left '+' button or by centre pressing
the joystick. Use the lower left 'x' button to remove
points.
The line and its length are shown as you create the
LOI. The name of the LOI appears in the designated
area and you will be able to change the colour of
the LOI.
Buttons:
Add LOI point (+)
Lay down LOI points on the map
Remove LOI point (x)
Remove LOI points from the map
GPS Map
Return to GPS MAP screen
Zoom
Zoom in/out
Done/(Back)
Go to keypad to name LOI and then to OOI Folders.
(Back cancels the operation and takes you back to
the OOI Menu).
13.03 Add LOI in a Specic Folder
(MAIN MENU → OOI Menu → OOI Folders → specic
folder → nal subfolder → Back → Add LOI by Map)
This will add the LOI to the last visited folder.
Note: Folders are created using SatSYNC and must
contain at least one OOI or route to be visible on the
unit. (See SatSYNC User Guide for more information).

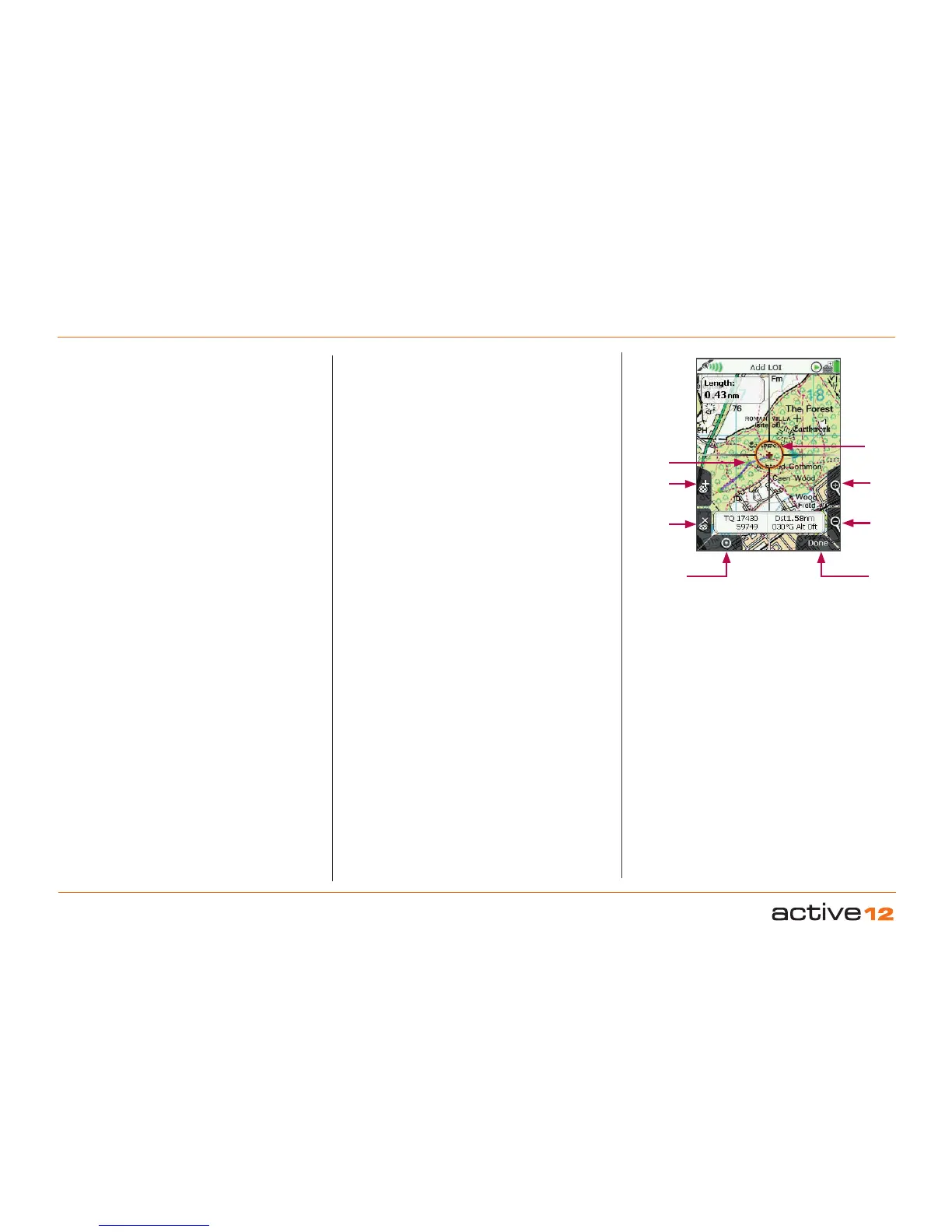

LOI point
Remove
LOI point
GPS Map
Add
LOI point
Zoom
In
Locator
circle with
red cross to
indicate edit
mode
Zoom
Out
Done/
Back
Create Lines (of
Interest, LOI)
