Section 4: Operation and Configuration
CG4 Series Service Manual Page 4-13
4.5 OPERATION SETTING MODE
The operation setting mode enables further selection of the functions of the printer. These are:
• Program download mode
• Font download mode
• Default setting mode
• HEX dump mode
• USB interface
• RS-232C/ IEEE 1284/ LAN interface
• Keypad selection
• Scanner/ Smart keyboard selection
Selection of the above operation setting modes are as shown below.
Printer start-up
While pressing
FEED/LINE button, press
and release POWER
button. Keep holding
FEED/LINE button.
Green light
Release FEED/LINE
button when ON LINE
(POWER) indicator
changes to blinking green
light and three short
beeps sound are heard.
1
2

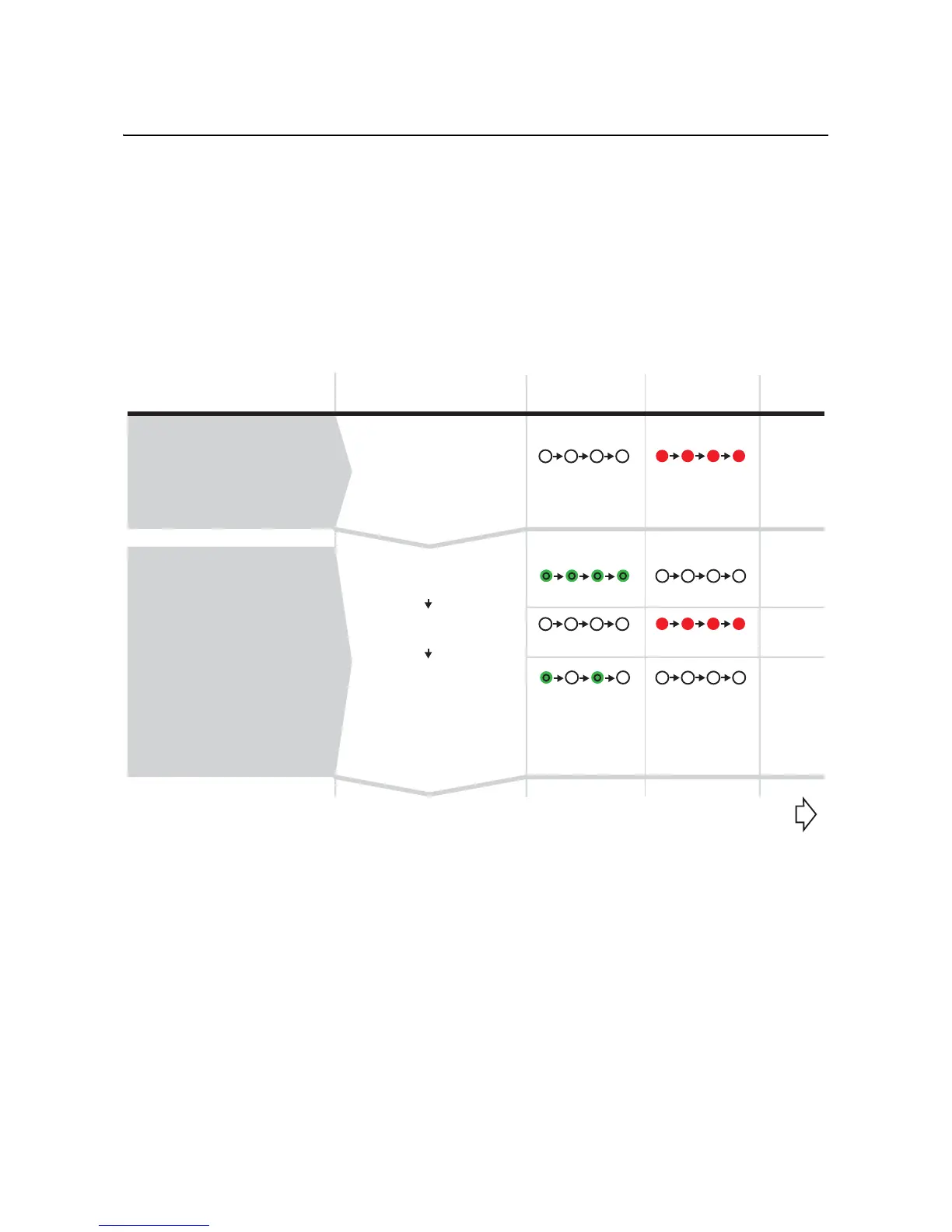

Printer statusProcedures
(The printer will cyclically
advance to next mode as
long as the FEED/LINE
button is held down.)
Off
ON LINE (POWER)
indicator
ERROR
indicator
Buzzer
User Test Print Mode.
Factory Test Print Mode
Operation Setting Mode
Off
One short
beep
Blinking green light
Off
Three
short
beeps
Two short
beeps
Red light
Off
Red light
To be continued on the next page.
To Next Page
