Section 8: Appendix
CG4 Series Service Manual Page 8-5
8.2 OPTIONAL ACCESSORIES - DISPENSER
8.2.1 To install the optional Dispenser
1.
Make sure the printer is powered off and disconnect the
power cable and interface cable.

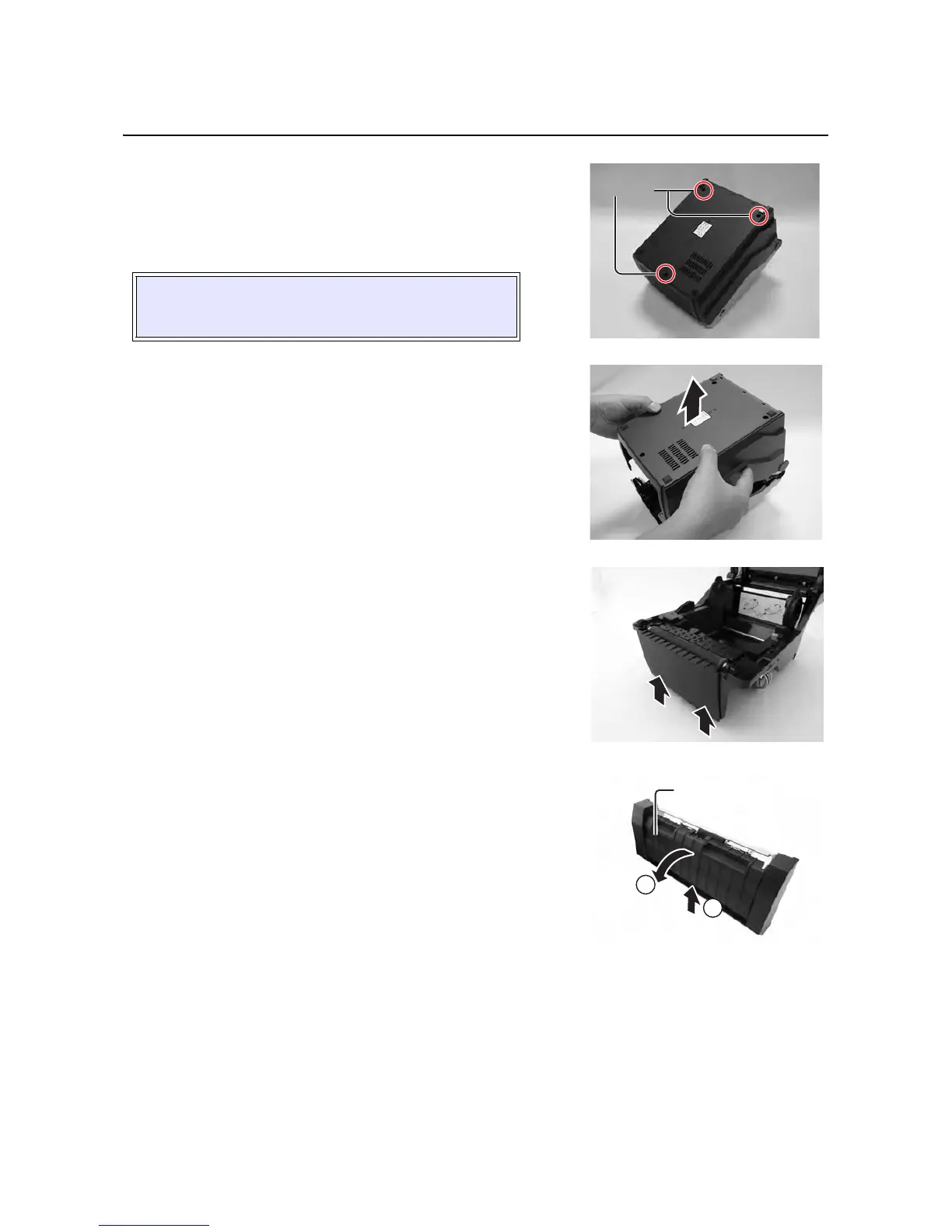

2. From the base of the printer, remove three screws (circled)
as shown.
3. Remove the Bottom Housing cover.
4. Turn over the printer in upright position. Pull the cover
open/close latches
on both sides of the printer toward you
to unlock the
Top cover, and then open the Top cover.
Remove the
lower front cover by lifting it upward.
5. Before installing the Dispenser kit, open the Pressure
bracket
by lifting upward and outward as shown.
CAUTION:
Ensure not to scrape the window portion when the printer
is turned over.
