SATO CG4 Series Service Manual

Section 6: Checks and Adjustment Procedures
Page 6-6
CG4 Series Service Manual
6.6 OFFSET POSITION ADJUSTMENT
This setting adjusts the option (Tear off, Cutter, Dispenser) stop position after a print out.
By sending command to the printer, the stop position can be adjusted within the range of ±99 dots.
1. Prepare the printer to be ready for print out.
Ensure the required media are loaded and the printer is in Online mode.
2. Send the appropriate command to adjust the tear off, cut or dispense position accordingly as follows.
Commands:
• Tear off position offset command is <PC>21,b
•
Cut position offset command is <PC>22,b
•
Dispense position offset command is <PC>23,b
b: Vertical offset position in dots (-99 to +99)
A positive value moves the offset position of the label forward (away from the print head) while negative
value moves the offset position of the label back to the mechanism.
Example: To set the Cut position offset with the cutting edge of the label move forward 8 dots.
<A>
<PC>22,+8
<Z>
3. Print a User Test print to check the offset position.
Refer to
Section 4.3 User Test Print Mode or send the test print command (<TP>,2) to execute User test
print.
4. If the print start position does not meet the criteria, repeat from step 2 above.
In addition to the above setting, the Offset position can also be adjusted by using SATO Utilities Tool
application or by sending command <PO> from the host.

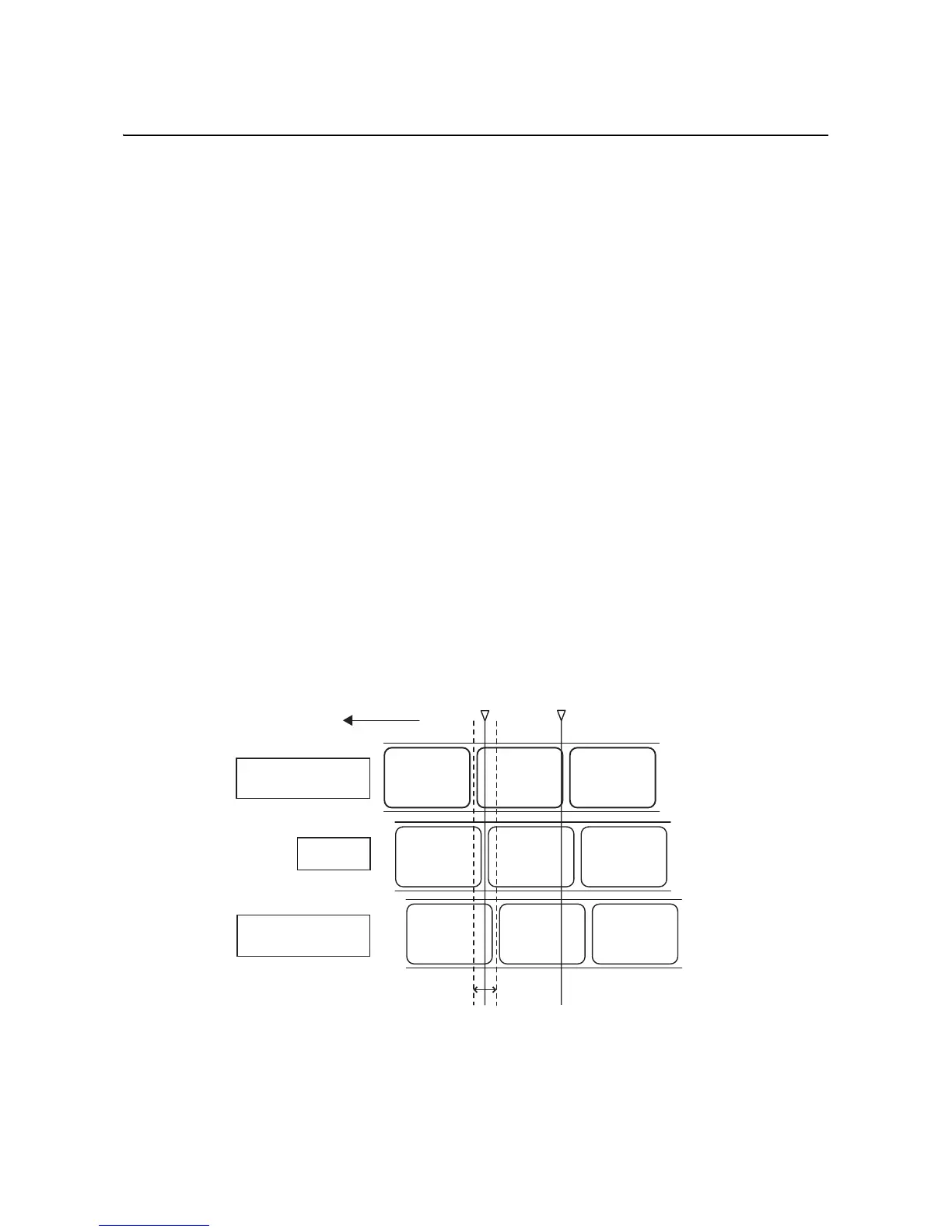

-99 dots+99 dots
Label feed direction
Stop position for
cutting,dispense
or tear-off
+ Adjustment
zero
Adjustment
- Adjustment
Adjustment of Offset setting
Reference position
for printing
