Section 3: Interface Specifications
CG4 Series Service Manual Page 3-13

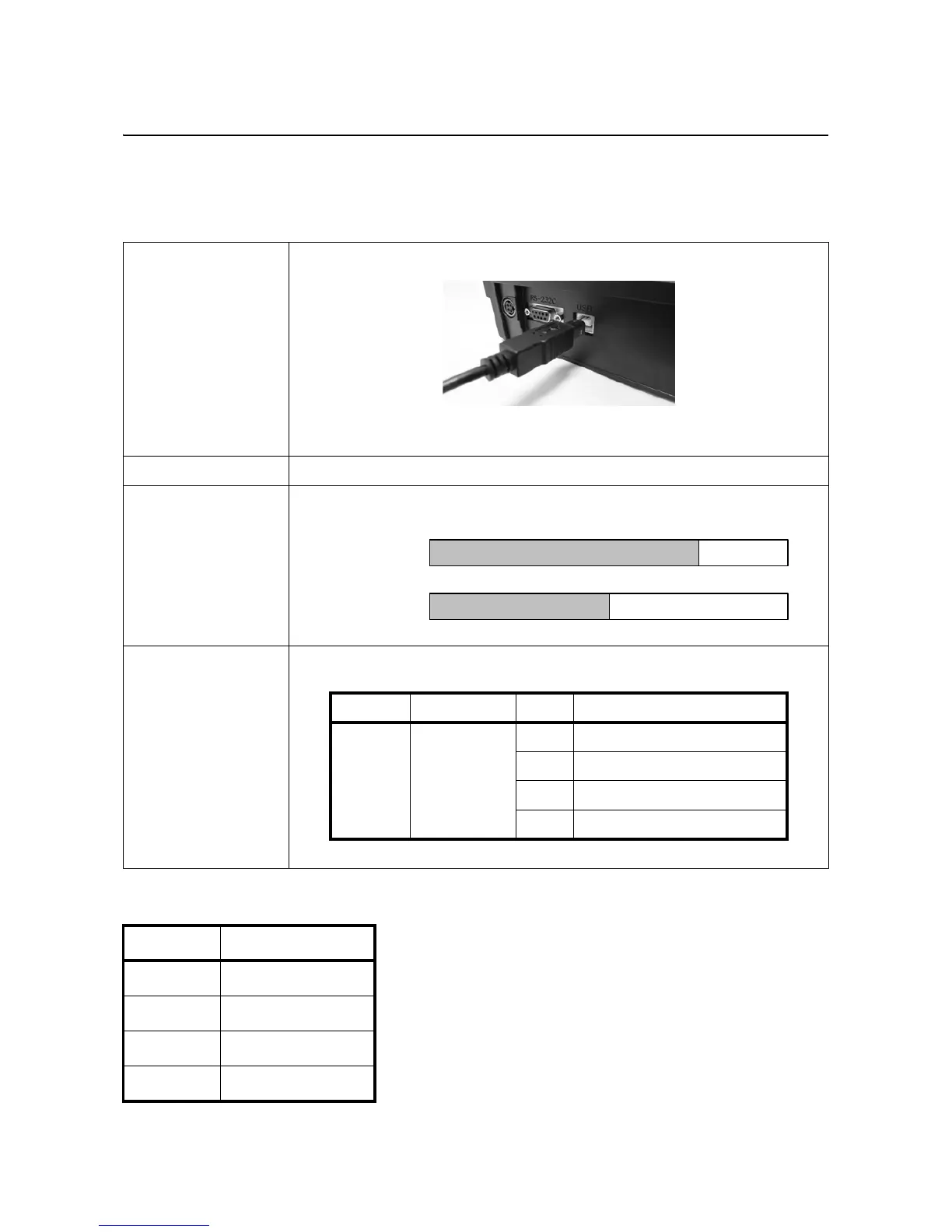

3.4 UNIVERSAL SERIAL BUS (USB) INTERFACE
This printer supports the USB 2.0-compliant interface and the transfer rate at 12.5 Mbits/second.
3.4.1 Basic Specifications of USB interface
The USB interface is available with all three types of boards.
3.4.2 Pin Assignments
Interface connector
Series B plug
Cable length: 5m or less (Twisted Pair Shielded)
Version USB 2.0
Maximum receive
buffer capacity
1MB
Interface type Use Printer configuration tool or <DI> command.
<DI>a
Parameter Item Value Description
a Interface
0USB
1 RS-232C/LAN/IEEE1284
2Keypad
3 Scanner/ Smart keyboard
Pin No. Description
1 VBus
2-Data(D-)
3+Data(D+)
4GND
To Next Page
