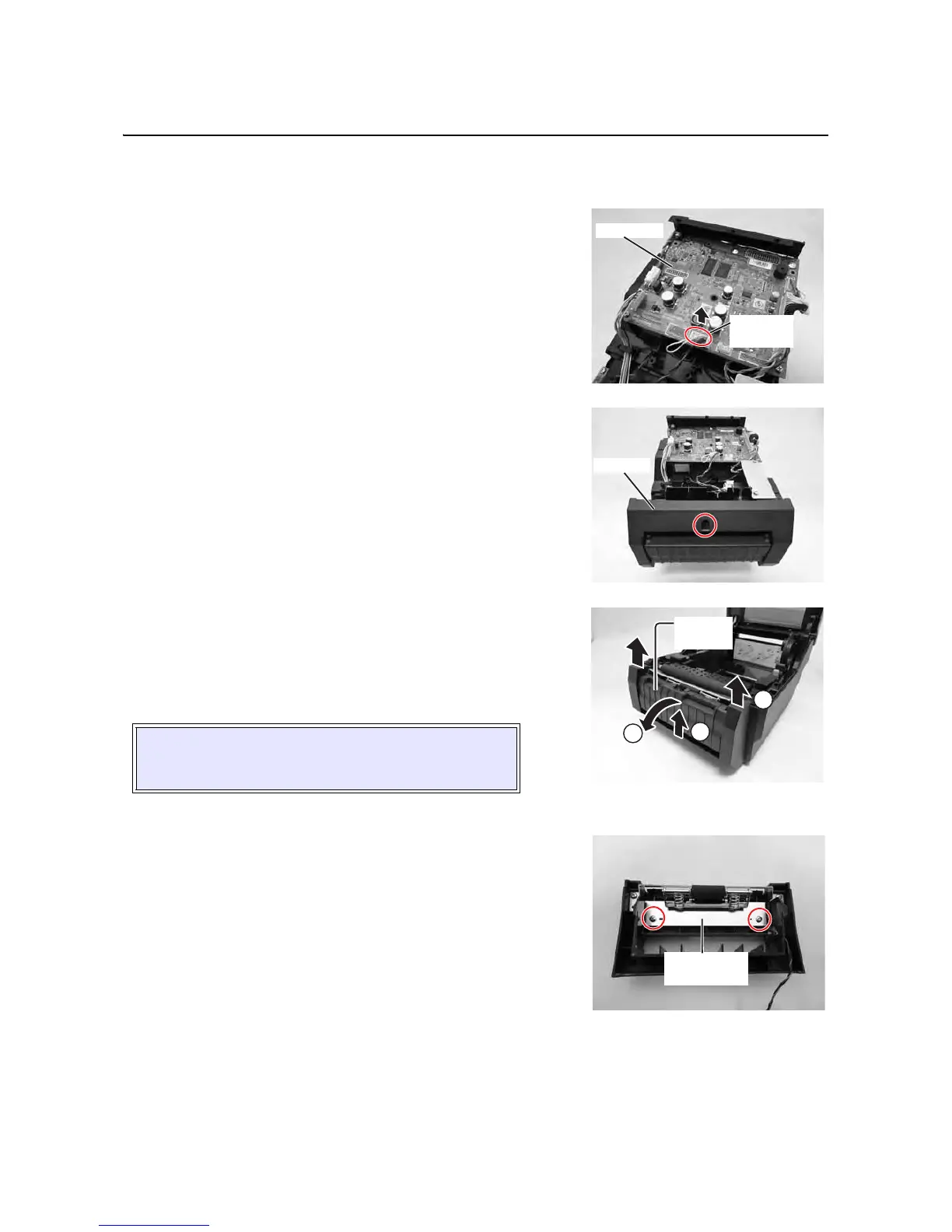

Section 7: Replacement Procedures
CG4 Series Service Manual Page 7-19
7.14 DISPENSER KIT/ ROLLER/ LABEL SENSOR REPLACEMENT (OPTIONAL)
This section covers the basic mechanical procedures for replacement of the Dispenser Kit.
7.14.1 Dispenser kit Replacement
1.
Remove the Bottom Housing Cover as explained in the
earlier
Section 7.3 Removal of the Bottom Housing
cover
.
2. Disconnect the Dispenser kit’s cable from the OPTION
connector
on the MAIN PCB.
3. From the base of the Dispenser kit, remove a screw
(circled) as shown.
4. Turn over the printer in upright position, open the Top cover
and remove the
Dispenser kit by lifting it upward.
5. Replace the new Dispenser kit and follow the above steps
in reverse sequence, to reassemble the parts.
Continue the following steps if you required to replace the
Dispenser roller or Dispenser label sensor.
7.14.2 Dispenser roller Replacement
6. From the reverse side of the Dispenser kit, remove the two
screws securing the Dispensing roller bracket in place.
CAUTION:
Ensure that no cables are pinched between parts when
you are installing the
cutter kit to the printer.
OPTION
connector
MAIN PCB
Dispenser
kit
1
3
2
Pressure
bracket
Dispensing
roller bracket
