SATO CG4 Series Service Manual

Section 5: Troubleshooting

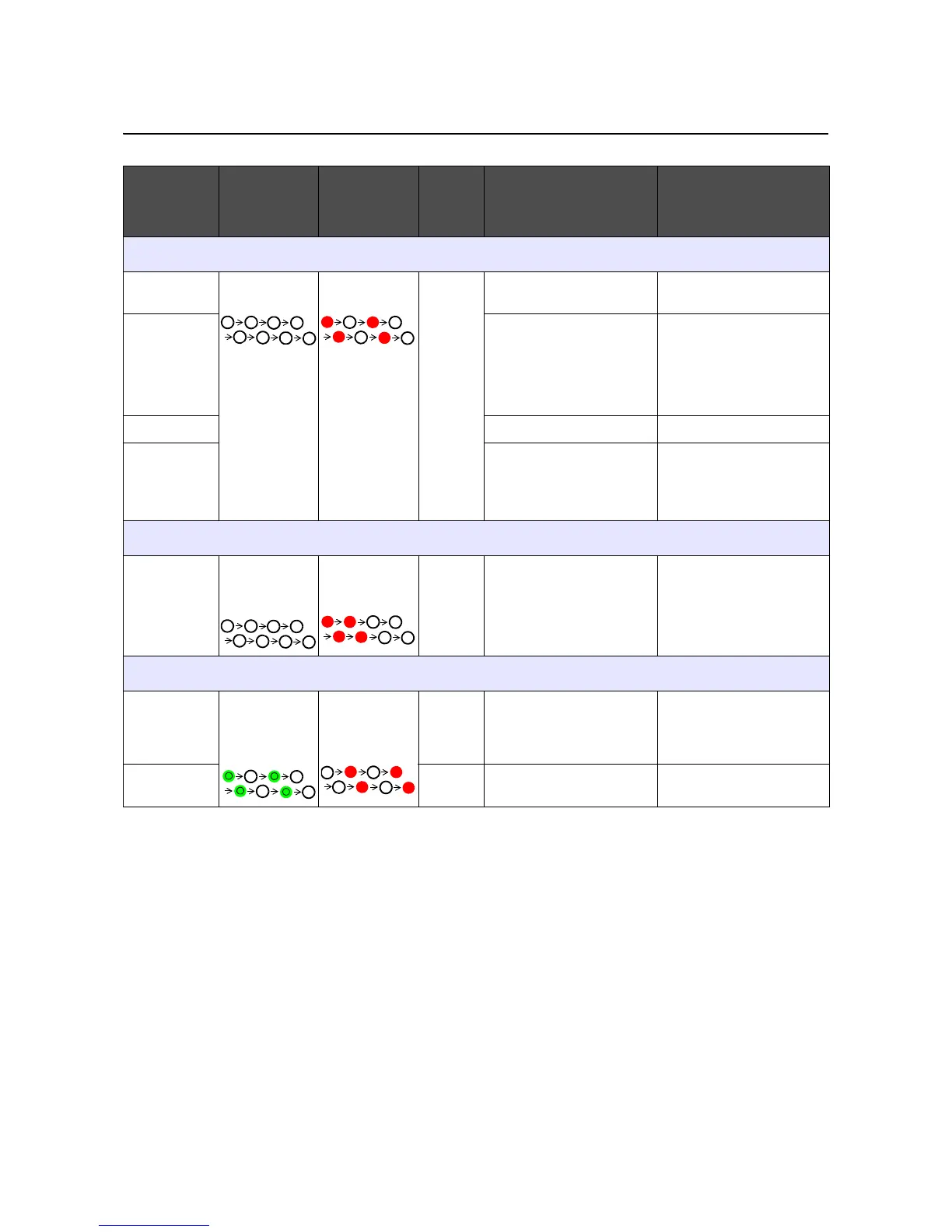

CG4 Series Service Manual Page 5-3
5.1 ERROR SIGNAL TROUBLESHOOTING (cont'd)
Contents
ON LINE
(POWER)
LED
ERROR
LED
Buzzer Causes Corrective Actions
Minor error
Cover open Off Blinking red 3 short
beeps
sound
1) Cover is not closed
properly.
1) Close the cover.
Sensor error 1) Wrong sensor level.
2) Wrong sensor type.
3) The value set for pitch
offset is too big.
4) Label meandering.
1) Level adjustment.
2) Sensor type adjustment.
3) Set a smaller value for
the pitch offset.
Paper end 1) Out of paper. 1) Set the paper properly.
Ribbon end 1) Out of ribbon or ripped
ribbon.
2) Ribbon is not set
properly.
1) & 2) Set the ribbon
properly.
Option
Cutter error Off long blink
interval
3 short
beeps
sound
1) Cutter is not connected.
2) Cut operation was not
performed successfully.
1) Connect the cutter unit.
2) Set and feed the paper
again.
Warning
Buffer near
full
Blinking green
(Lights
alternately)
Blinking red
(Lights
alternately)
— 1) Free space for receive
buffer is low.
1) Pause the data transmis-
sion on the host side and
wait until enough buffer
space available.
Ribbon near
end
— 1) Not much ribbon left. 1) Replace ribbon.
