8.2.1 Control model 1
PI
2P

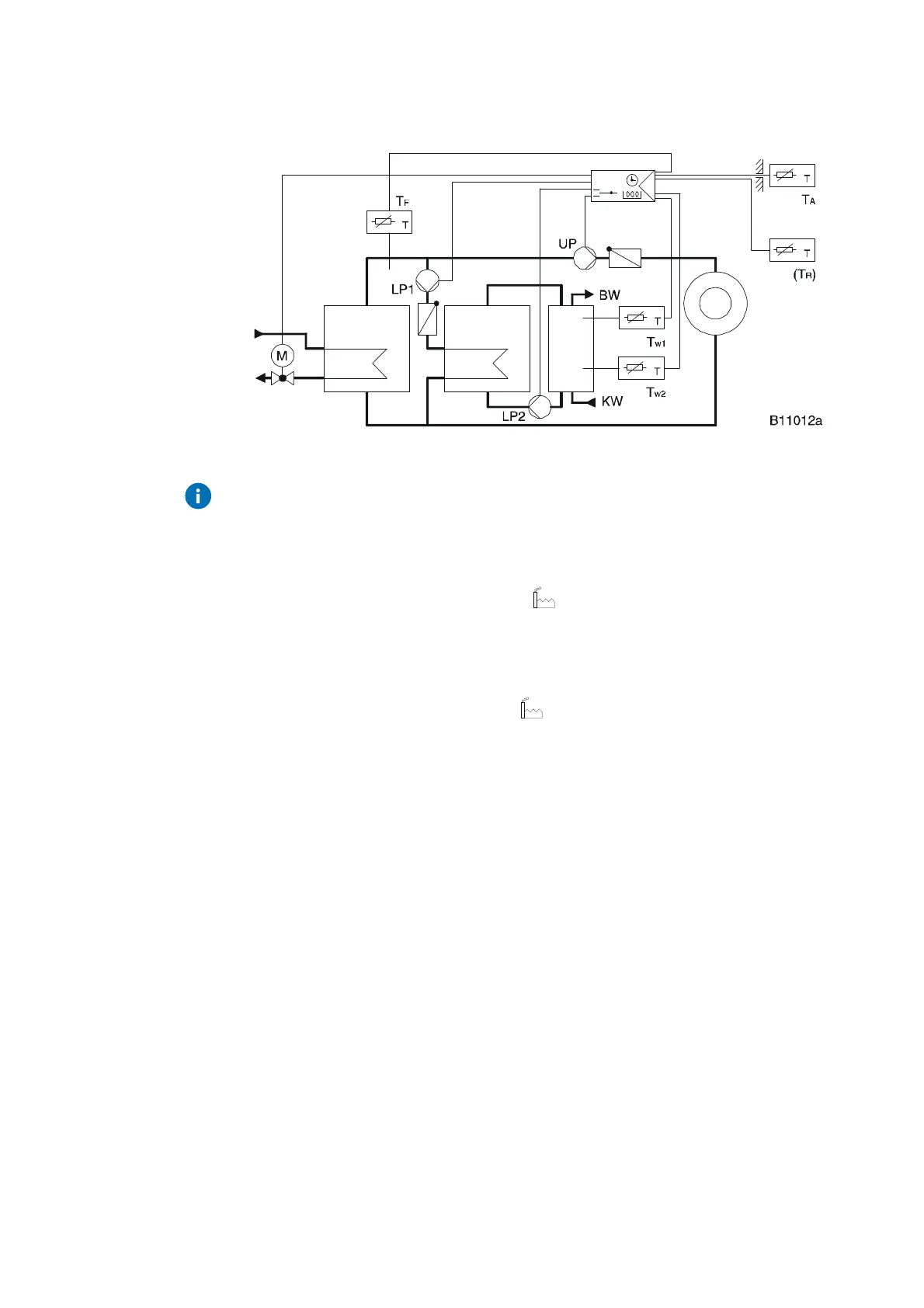

Fig. 7: EQJW 145 Control model 1
Weather-compensating control of the flow temperature (secondary) in
converter installations with DHW preparation (parallel circuit) with 2 charge
pumps, via an additional converter (tank charge system)
Main SERVice parameters (see also 3.3)

SP06 1 (Control model
)

SP08 1 (Room sensor connection)

SP09 3 (Room temperature connection enabled)

SP34 2 (DHW heating with separate charge pump using two
DHW sensor.
)

SP49 2 (Configurable output is used to activate a 2nd charge
pump)
