8.2.2 Control model 2
PI
2P

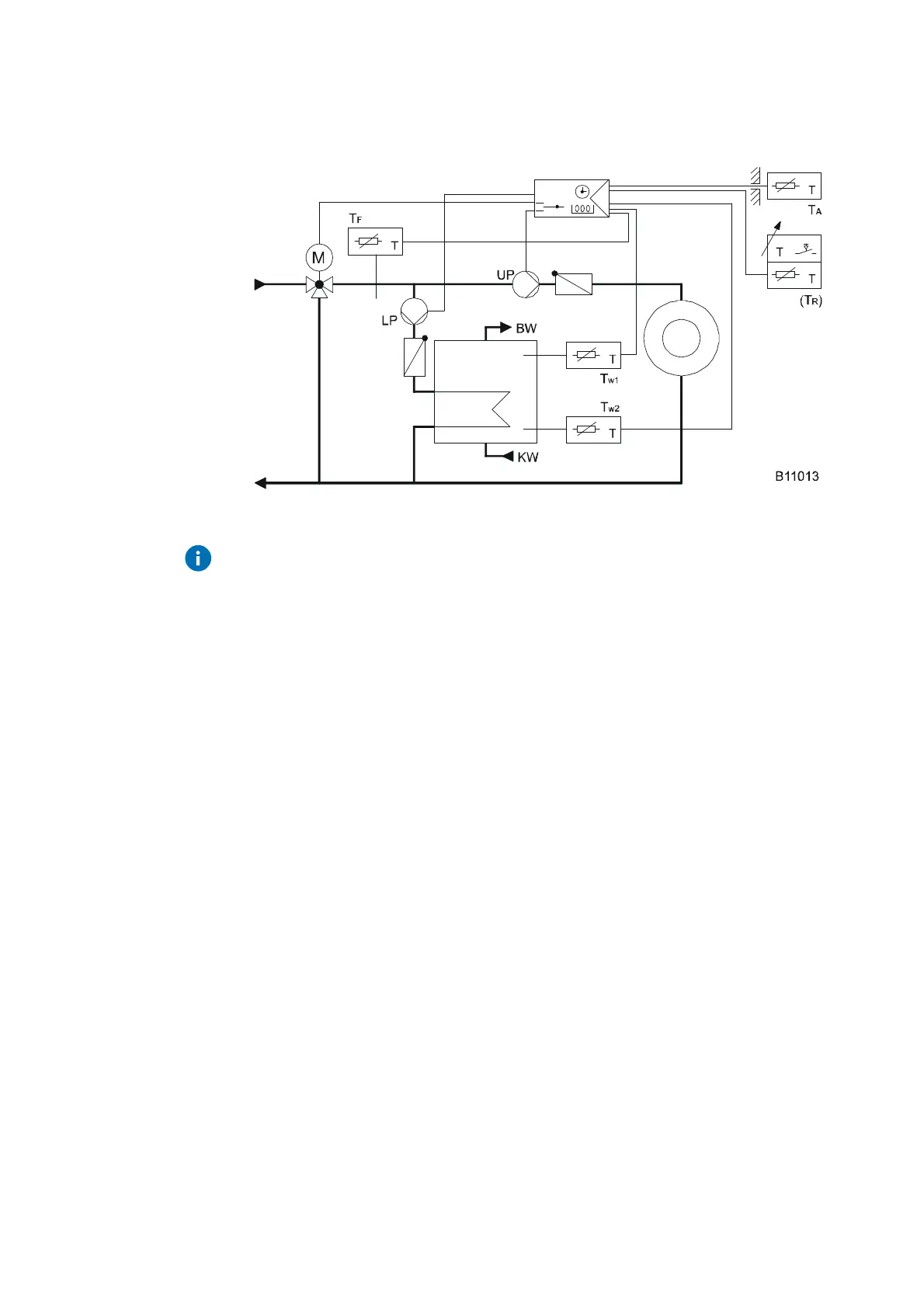

Fig. 10: EQJW 145 control model 2
Weather-compensating flow temperature control and DHW preparation via a
mixer valve
Main SERVice parameters (see also 3.3):

SP06 3 (Control model)

SP08 2 (Connect room operating unit EGS52/15 with room
sensor)

SP09 1 (Room temperature connection is enabled if
T
Ri
> T
Rs
)

SP34 2 (DHW preparation with separate charge pump using
two DHW sensors)
