12
©
Scania CV AB 2011, Sweden
01:03-02
IMPORTANT! The lifting eyes on the engine are
not designed to lift the whole vehicle and
therefore must not be used for this purpose. All
three lifting eyes must be used when lifting the
engine.
On vehicles built from May 2000 onwards, the
rear lifting eyes have been removed. They may be
ordered as a spare part, part number 1 360 442.

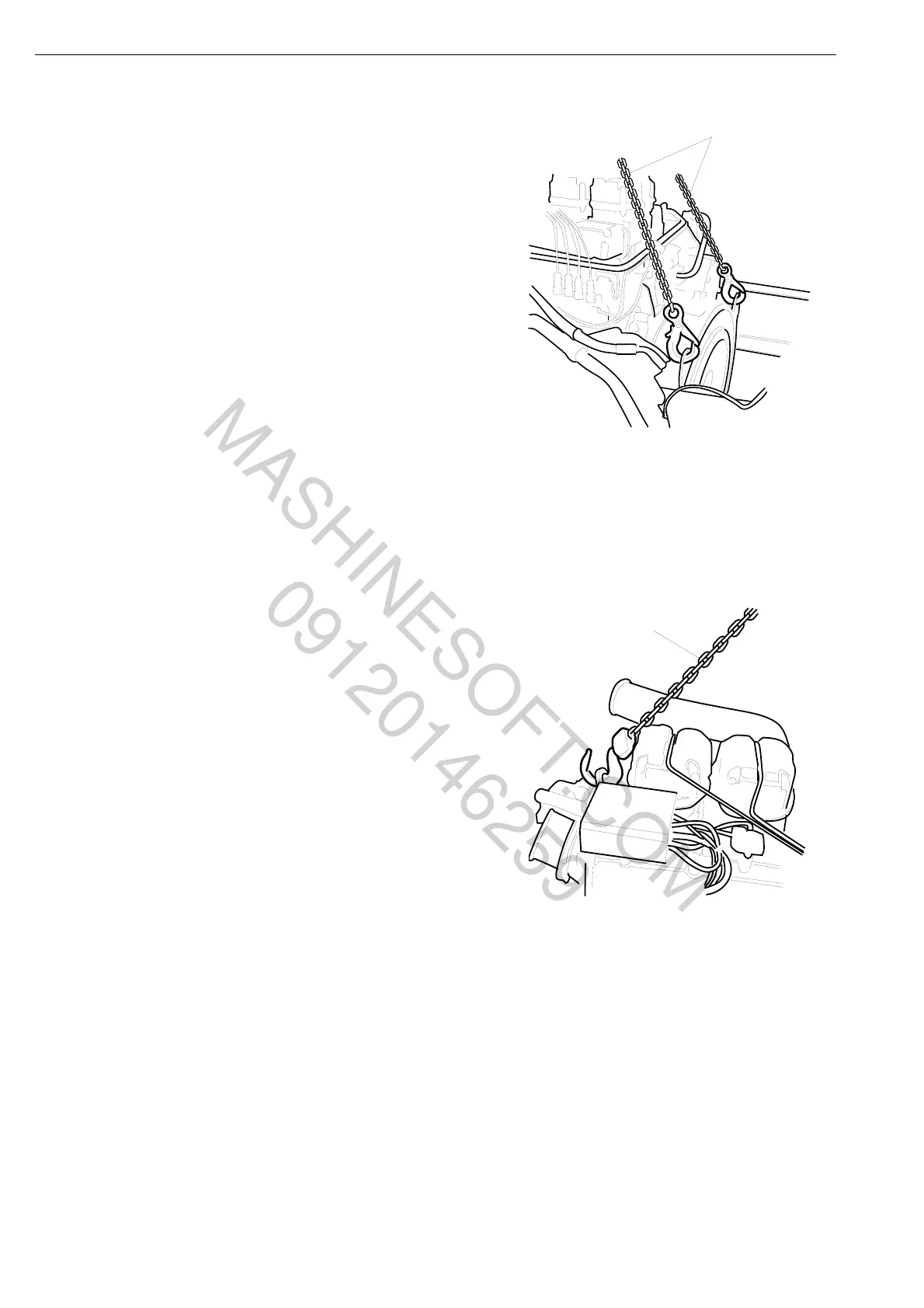

30 Fasten lifting chain 98 094 to the rear
lifting eyes.
31 Fasten ratchet lever hoist 587 308 to the
front lifting eye.
Engine assembly
