Scania DC11 - Page 141

01:03-02
©
Scania CV AB 2011, Sweden
141

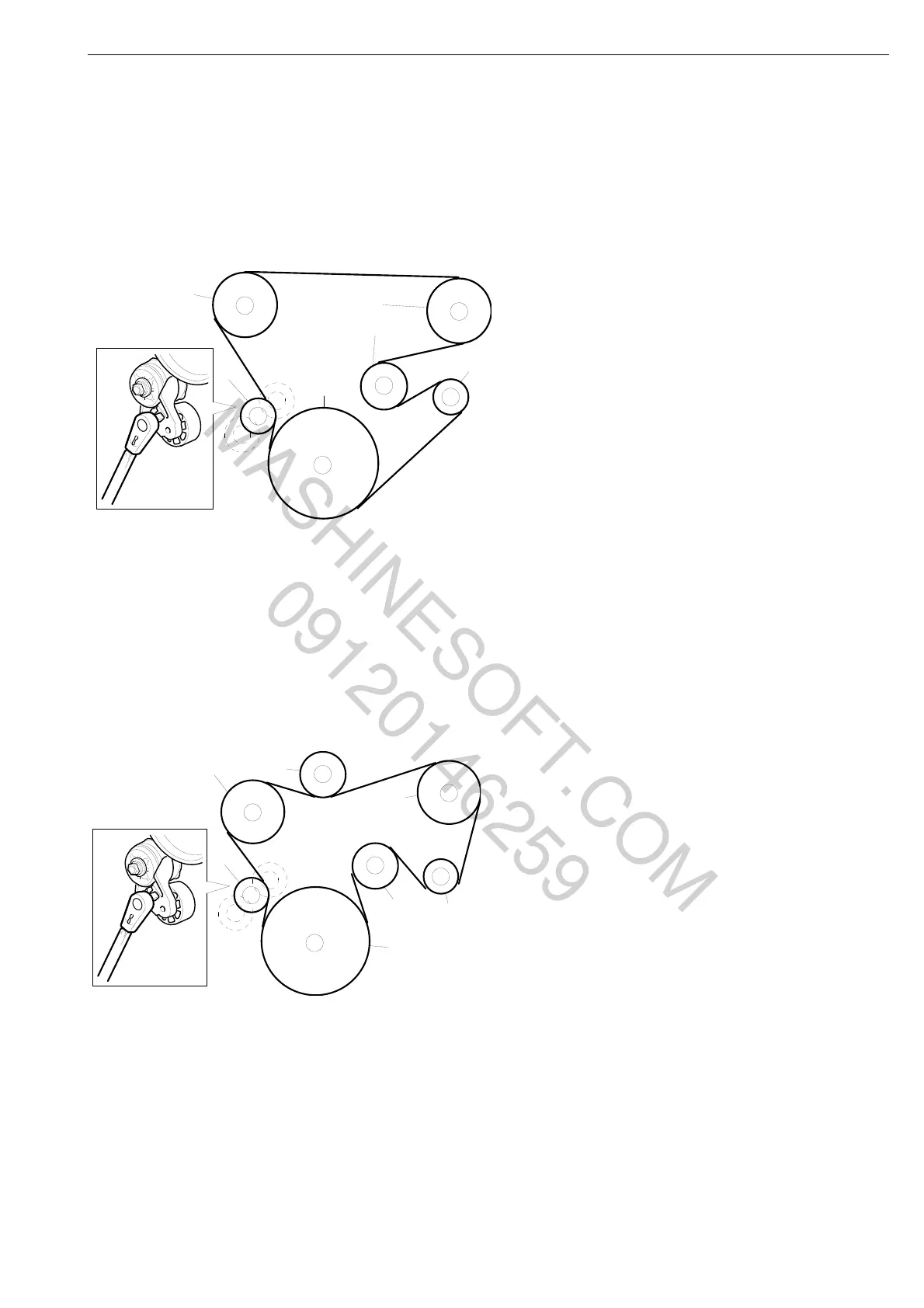

Belt transmission
Engine with air conditioning and an idler roller
105 188
1
2
3
4
5
6
1 Automatic belt tensioner
2 Coolant pump
3 AC compressor
4 Idler roller
5 Alternator
6 Crankshaft
Engine with air conditioning and two idler rollers
105 190
1
2
3
4
6
5
3
1 Automatic belt tensioner
2 Coolant pump
3 Idler roller
4 AC compressor
5 Alternator
6 Crankshaft
Belt transmission
