Scania DC11 - Page 142

142
©
Scania CV AB 2011, Sweden
01:03-02

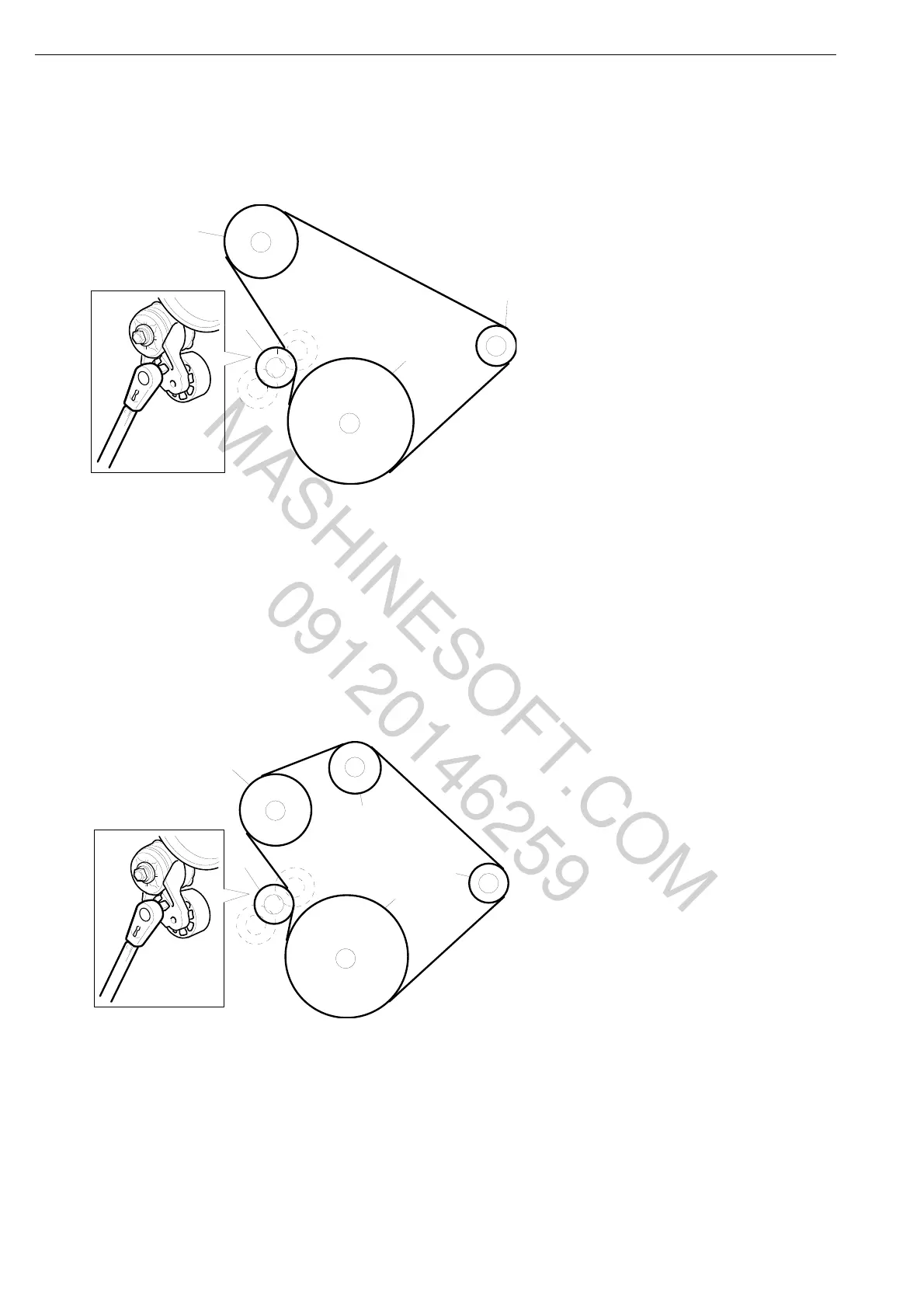

Engine without air conditioning or idler roller
105 189
1
2
3
4
1 Automatic belt tensioner
2 Coolant pump
3 Alternator
4 Crankshaft
Engine without air conditioning with an idler roller
1 Automatic belt tensioner
2 Coolant pump
3 Idler roller
4 Alternator
5 Crankshaft
105 191
1
2
3
4
5
Belt transmission
