01:03-02
©
Scania CV AB 2011, Sweden
61

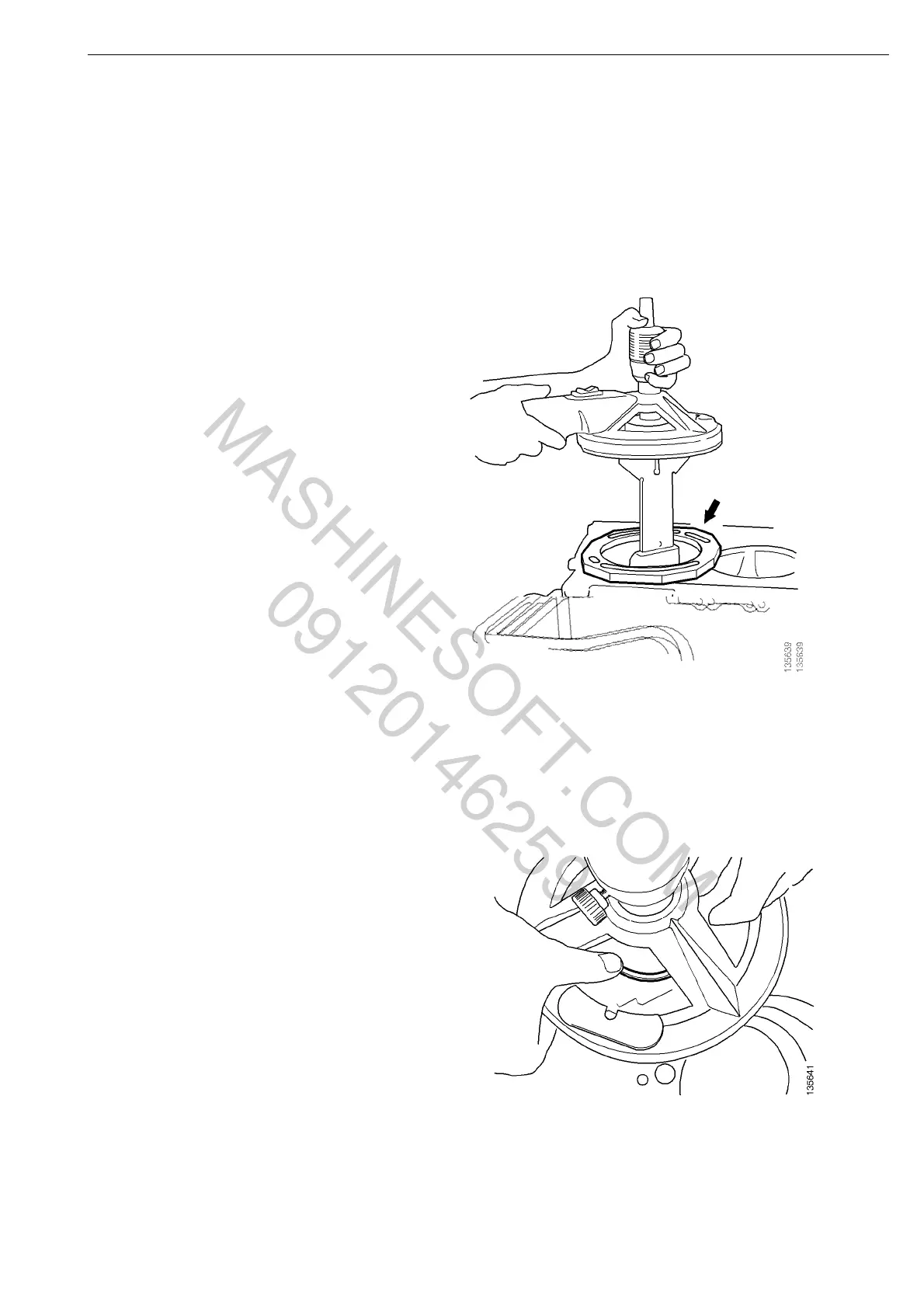

4 Position the setting ring over the relevant
cylinder and then position the cutter.
Energise the magnet on the cutter by setting
the switch to position 1.
5 Check that the tool (cutter) does not touch
the edge of the liner seat when the cutter is
fitted in the setting ring. Otherwise the
vertical feed screw must be wound up until
the cutter is released from the liner seat.
6 Lift the rapid feed ring and move the cutter
by hand until it is positioned above the liner
seat surface without including the cylinder
block walls.
Cylinder block
