Scania DC11 - Page 66

66
©
Scania CV AB 2011, Sweden
01:03-02

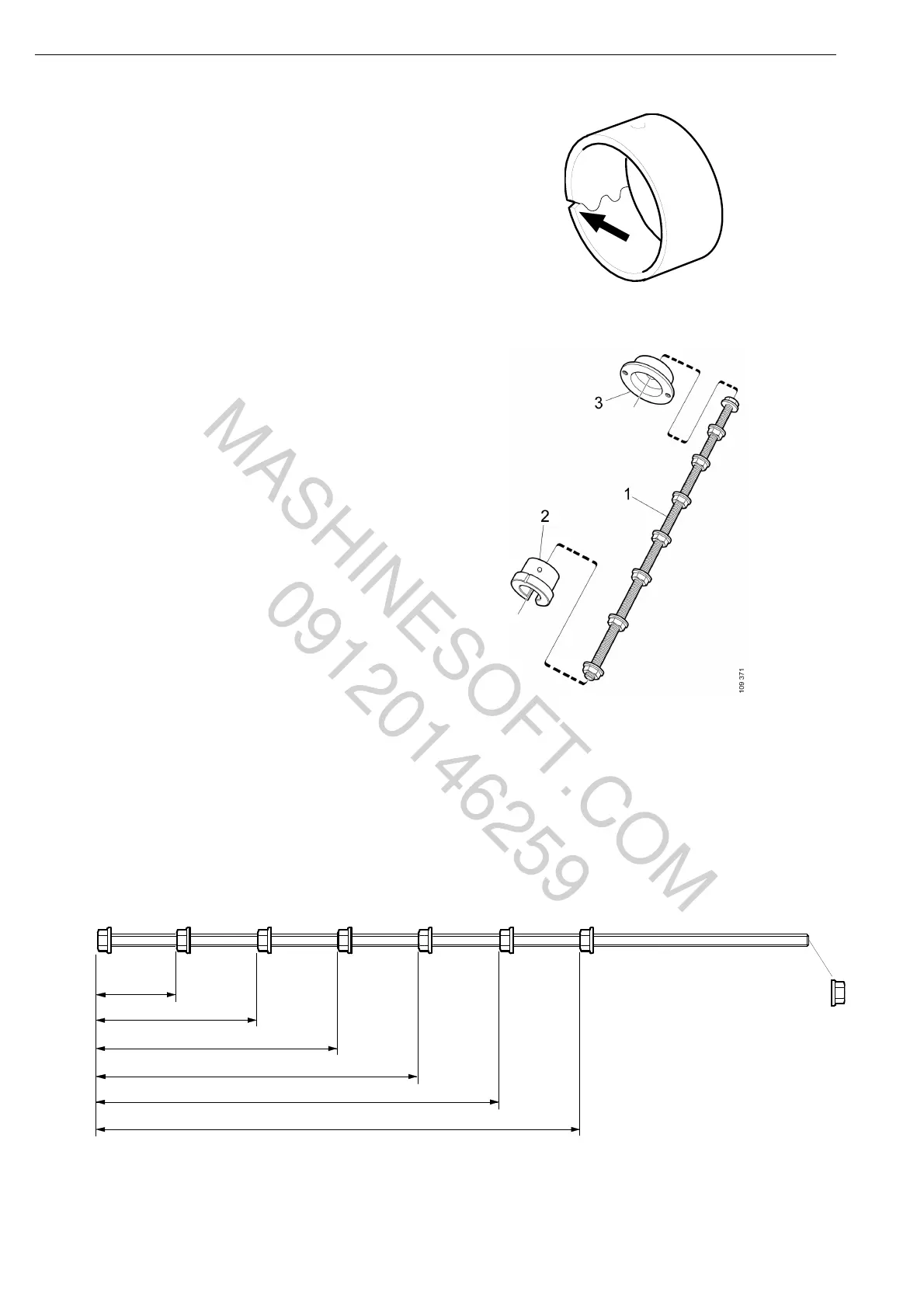

Note: The recess in the bearing joint must be
turned towards the front of the engine.
4 Place the new bearings in the space between
the bearing seats for the camshaft.
109 690
Tool 99 373
1 Threaded stem with eight flange nuts
2 Press drift
3 Flange
5 Place the flange nuts on the threaded stem,
included in tool 99
373, as illustrated.
12
3
45 6
7
8
164
328
492
656
820
984
109 297
Cylinder block
